Self-Service Open Multi-Deck
Small-store format, refrigerated radius island merchandiser for bakery, beverage, dairy, deli and produce.
Standard

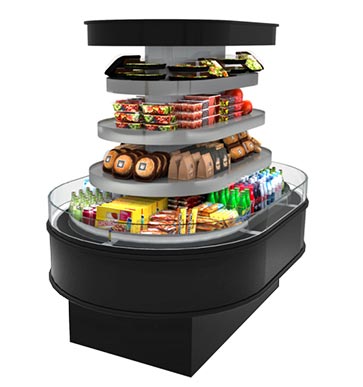

HVI-4-406R/S radius end caps with standard black finish.
Optional

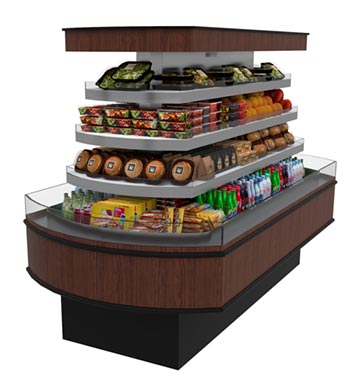

HVI-4-408R/S curved end caps with optional cherry wood laminate.
Fast Facts
-
Airflow shelving creates multiple air curtains to improve product integrity and self-life, increasing sales.
-
Case is designed for product to be held at 41° F or below.
-
High-efficiency fan motor with oversized condenser coil easily handles adverse conditions a standard fan cannot.
-
Fully balanced fan motor provides super-quiet operation.
-
Designed to maximize energy-efficiency and minimize operating costs.
-
Clearvoyant® LED lighting has 360° adjustment, frosted lens and a variety of color temperatures to eliminate shadows and add “pop” to specialty items.
-
Improved product presentation improves product sales.
*Product images may include additional options.
Optional Laminates
Select a laminate swatch below and see how it looks on the case.
Laminate colors & textures on screen may vary when compared to physical color samples.
Paint Color Chart
Click image to download
Paint colors and textures on screen may vary when compared to physical color samples.
Base Model Features
-

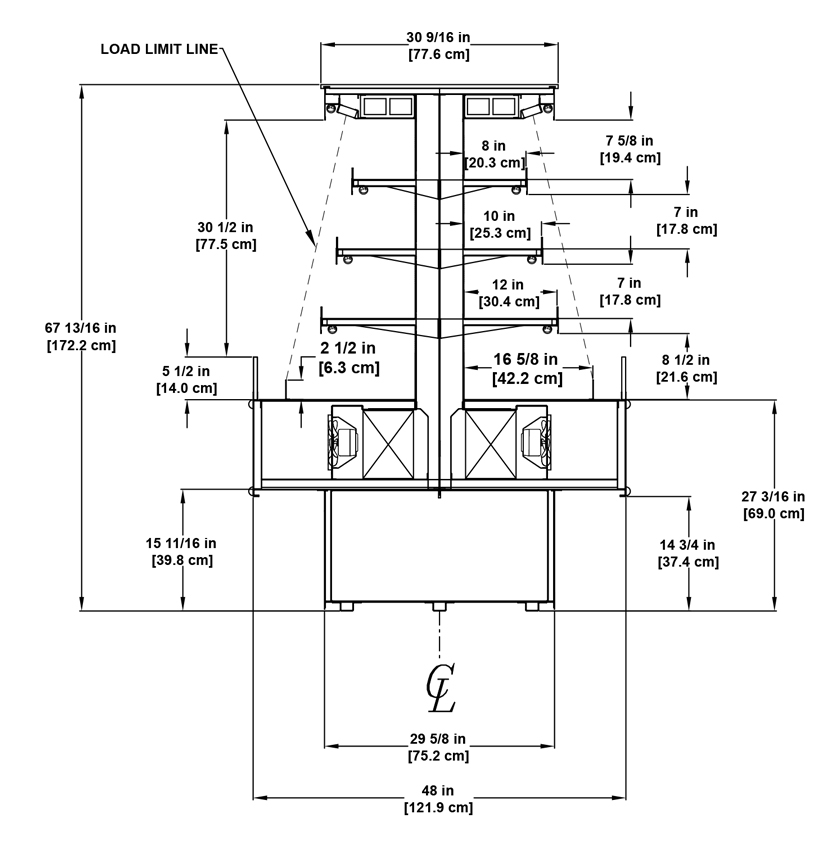

Case dimensions:
– HVI-4-406R: 67-13/16”H, 48”D, 72”W
– HVI-4-408R: 67-13/16”H, 48”D, 96”W -
Two full radius end caps.
-
Case top: Deep Night Sky solid surface.
-
Exterior: Powder-coated gloss black metal.
-
Base trim: Powder-coated to match exterior.
-
Interior: Powder-coated matte black metal with matching trim.
-
Clearvoyant® 4 LED cornice and shelf lighting, 3000K.
-
One row of 8”, 10” and 12” metal shelves powder-coated matte black.
-
Integrated 1/2” product stop on each shelf.
-
Shelves built with airfl ow chambers for superior product temperature holding capability.
-
5-1/2” die board plex.
-
2-1/2” product stop on deck shelf.
-
2 rows of cart bumpers.
-
Standard digital temperature control with automatic defrost.
-
Solar digital thermometer.
-
Energy-efficient engineered fan design to maximize airflow.
Available Options
-
Two full curved ends.
-
Exterior top and front panel with laminated overlay onto glossy black power-coated metal.
-
Black plastic tag molding on shelves.
-
1-1/2” plex product stop on shelves.
-
Lift gate shipping option.
HVI-4-406R/S
Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications are subject to change without notice. Certified to UL 471 and ANSI/NSF standard 7. Designed for optimal performance in store environments where temperatures and humidity do not exceed 75°F and 55%R.H.
ANSI/NSF-7 Type II – Display Refrigerator/Freezer Intended for 80°F and 55% RH ambient application.
HVI-4-408R/S
Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications are subject to change without notice. Certified to UL 471 and ANSI/NSF standard 7. Designed for optimal performance in store environments where temperatures and humidity do not exceed 75°F and 55%R.H.
ANSI/NSF-7 Type II – Display Refrigerator/Freezer Intended for 80°F and 55% RH ambient application.
