SD-RG Combination Service Refrigerated Gravity Coil Dome and Self-Service Refrigerated Display


Oversize Dome Single-Deck

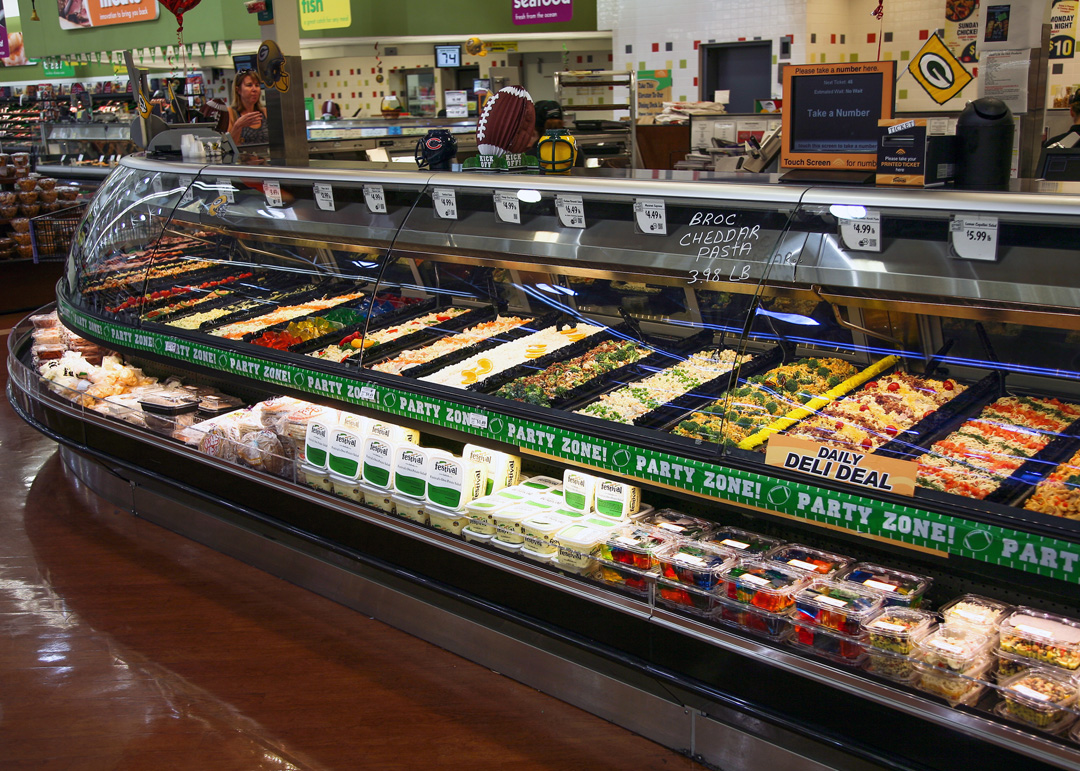

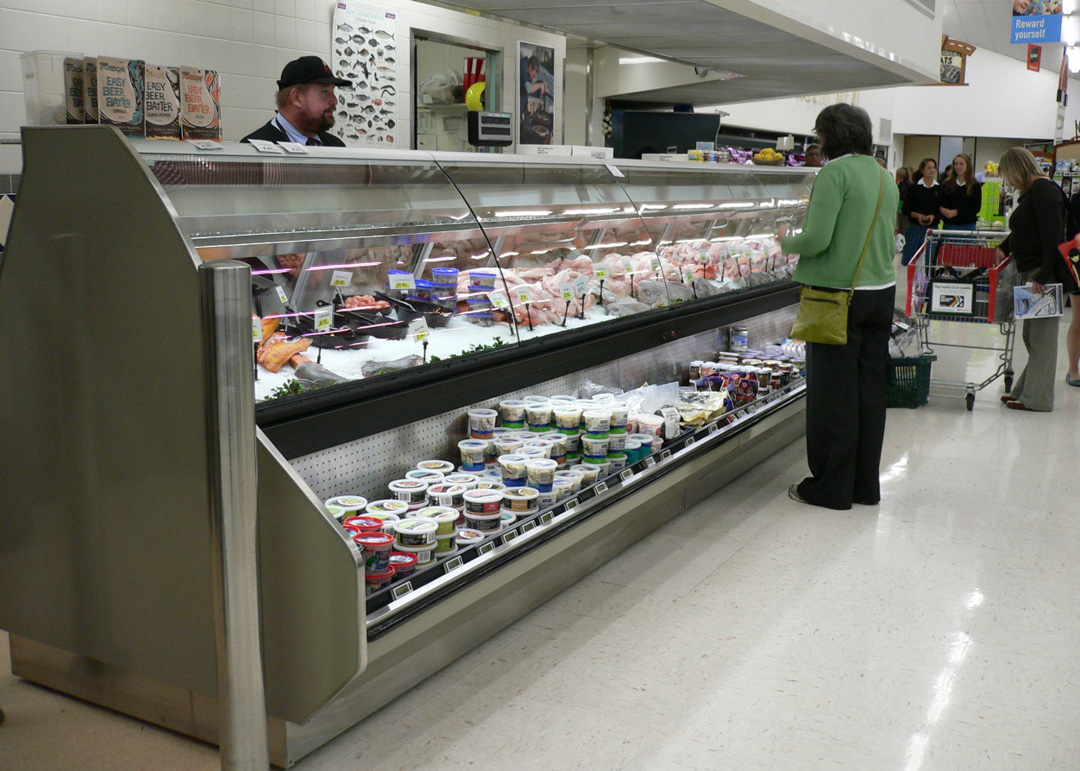

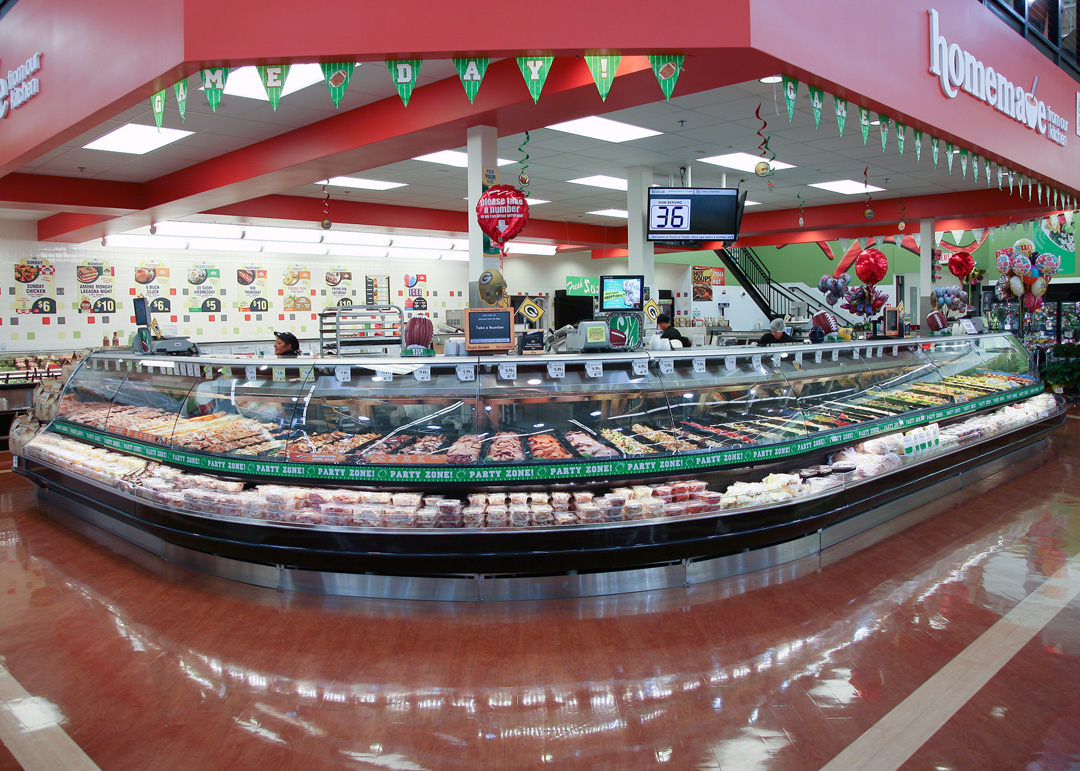

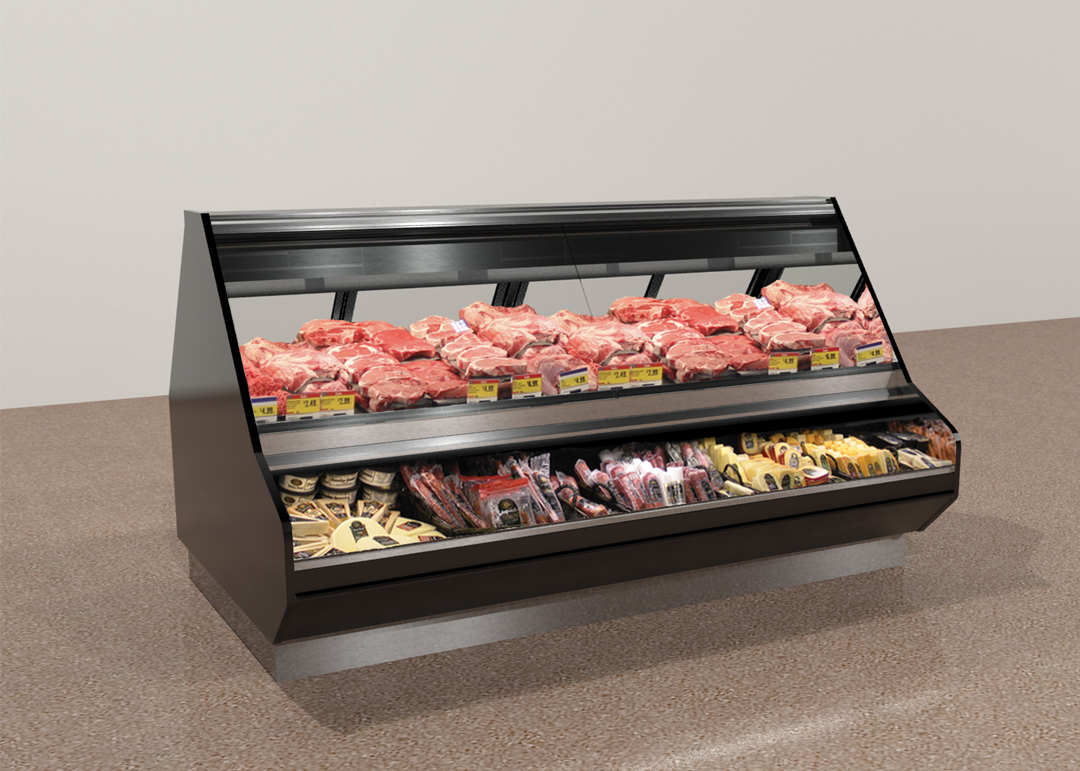

Hillphoenix SD-RG Combination Service, Refrigerated, Gravity Coil Dome and Self-Service, Refrigerated Display. Designed for meat and seafood applications. Available in several lengths and with the option for flat or curved glass dome. Front profile lines up with the SD-R, SDH-R, and SD-R spherical for a continuous department look.


Features and Benefits

  • Sled runner base construction.
  • Standard 54”H and 55-1/8”D.
  • Standard kick plate height: 6-5/16”H.
  • Dome height: 26-5/16”H and 8-5/8”D dome top.
  • 45 degree die board (lower front panel).


Refrigerated Dome

  • Gravity coil dome refrigeration with serpentine assist.
  • Reflective rear load doors with gray frames.
  • Single-pane, regular glare flat lift front glass.
  • Stainless steel interior.
  • Interior trim to match interior.
  • Solenoid/timer needed for additional 1 hour required
  • Stainless steel flat bottom merchandising deck.
  • Clearvoyant LED top light.


Refrigerated Base

  • 3-1/2”H x 1/2 “thick polished straight die board plex.
  • Black painted metal interior.
  • No shelf
  • Interior trim to match interior.
  • Black painted metal flat bottom merchandising deck
    with 2” metal product stop.
  • Rear electrical raceway.
  • Solar digital thermometer.
  • Energy efficient fans.
  • Remote DX refrigeration package.
  • Clearvoyant LED cornice light in base.

Available Options

  • Available lengths: 4’, 6’, 8’, 10’, and 12’.
  • Flat front profile.
  • Ice pans (Required for seafood application).
  • Clear rear load dome doors.
  • Black door frames.
  • Non glare flat or curved lift front glass.
  • Regular glare curved glass.
  • Rear fixed or flip up work boards: Poly, stainless steel or solid surface.
  • Paper Cutter: serrated or non-serrated.
  • ISO outlet/CON outlets or CAT 5.
  • 23-3/4” deep rear storage with no shelf: Closed dry or open dry.
  • Sliding glass or solid rear load doors on closed dry storage option.
  • Cart bumper.
  • Remote glycol refrigeration package.


Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
