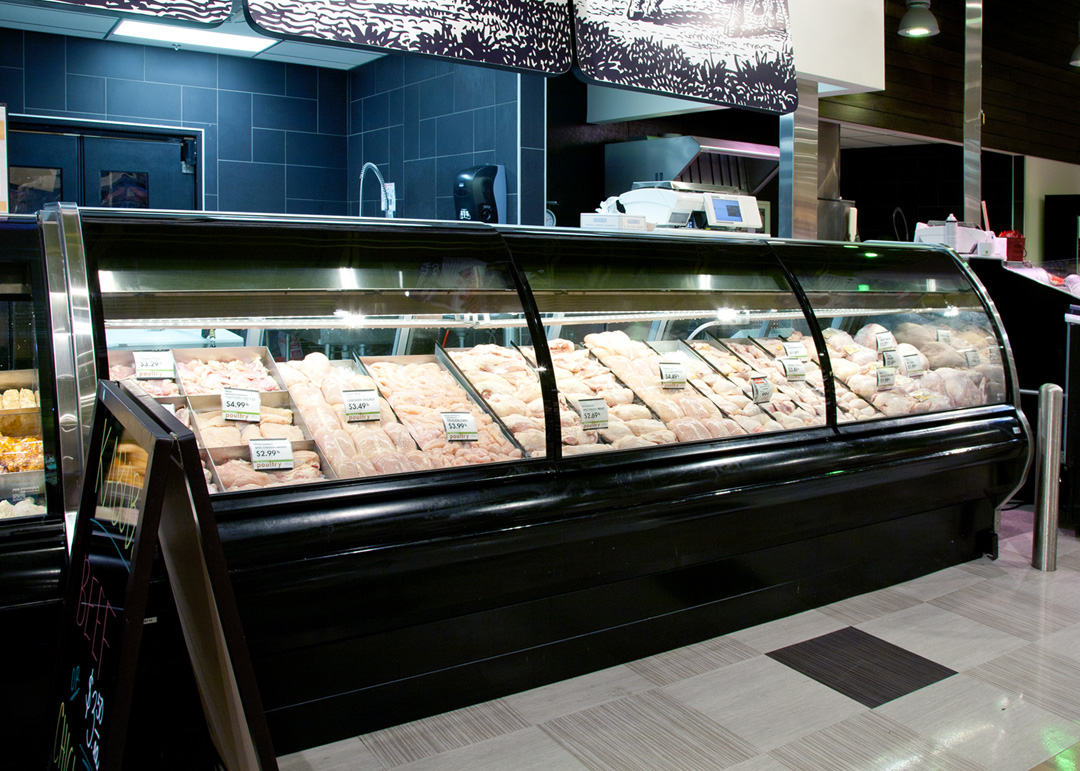

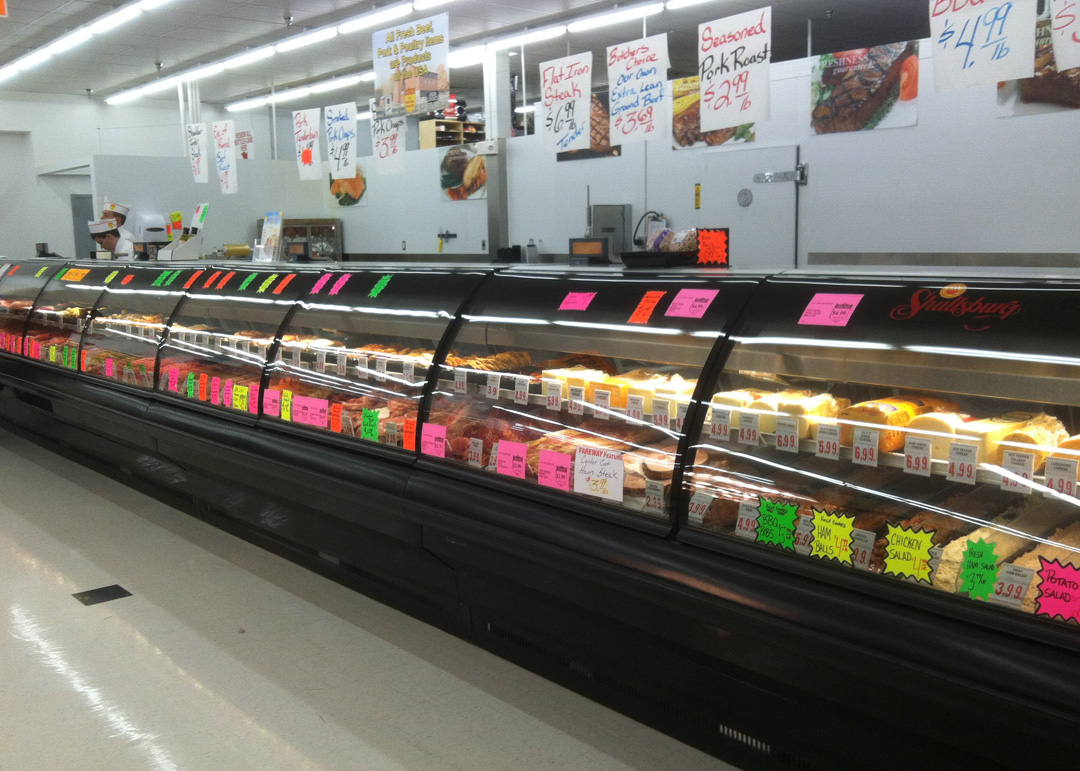

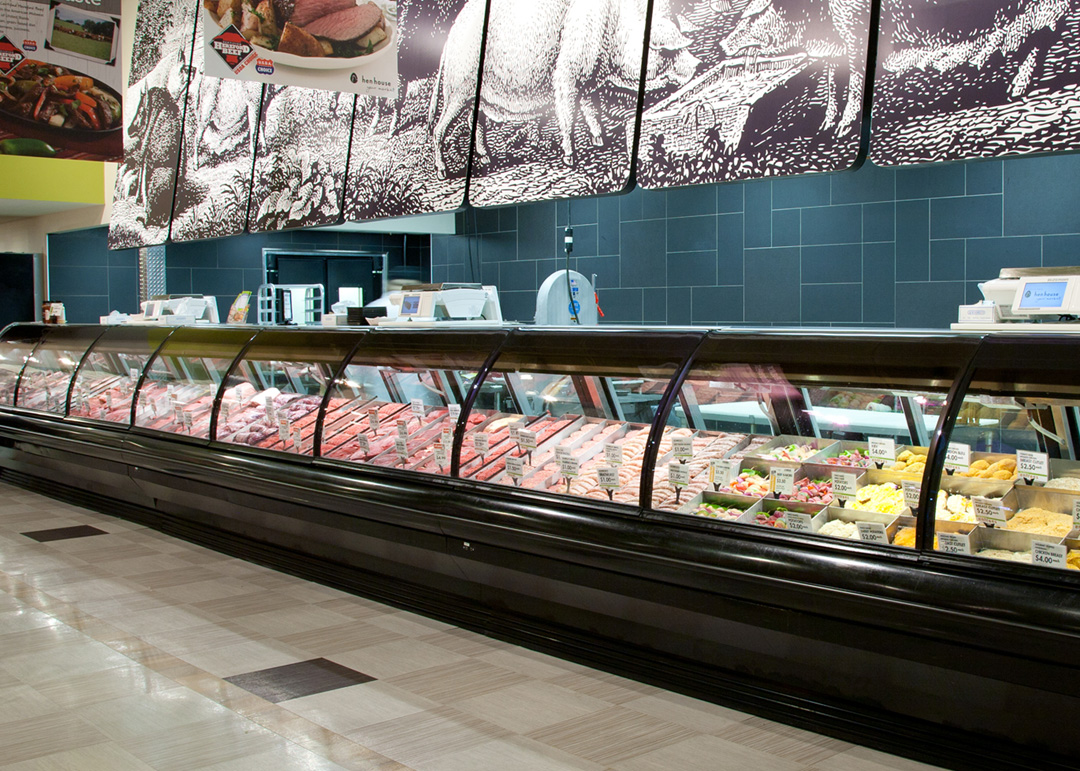

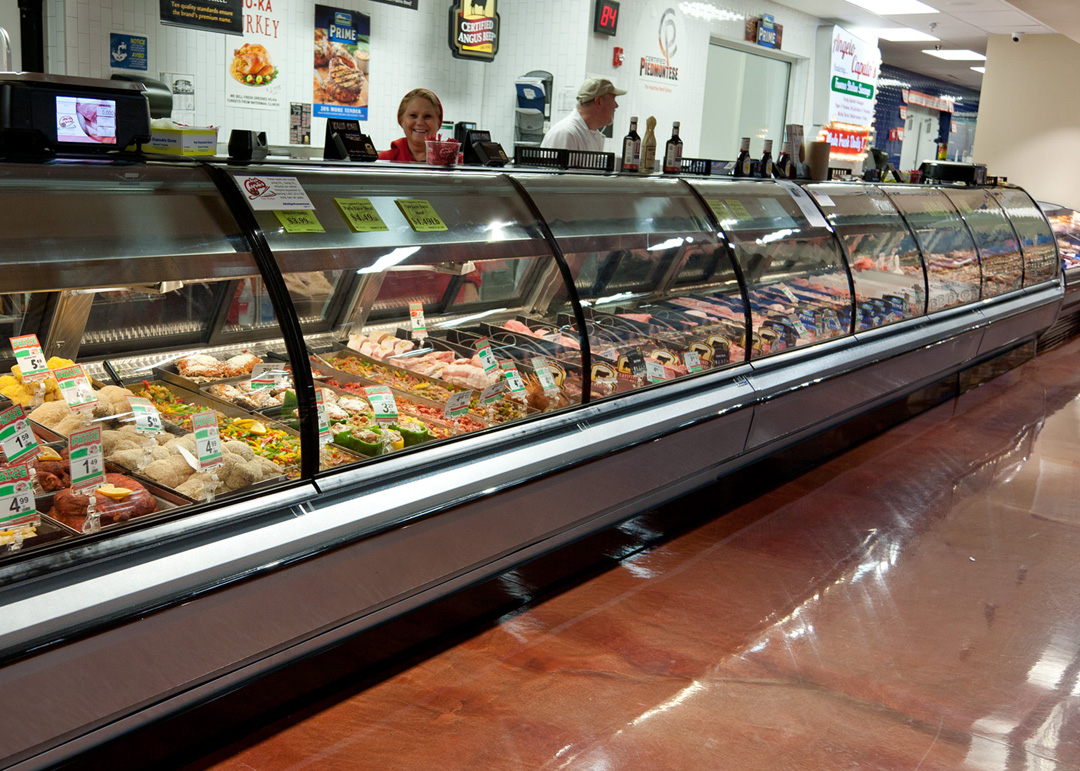

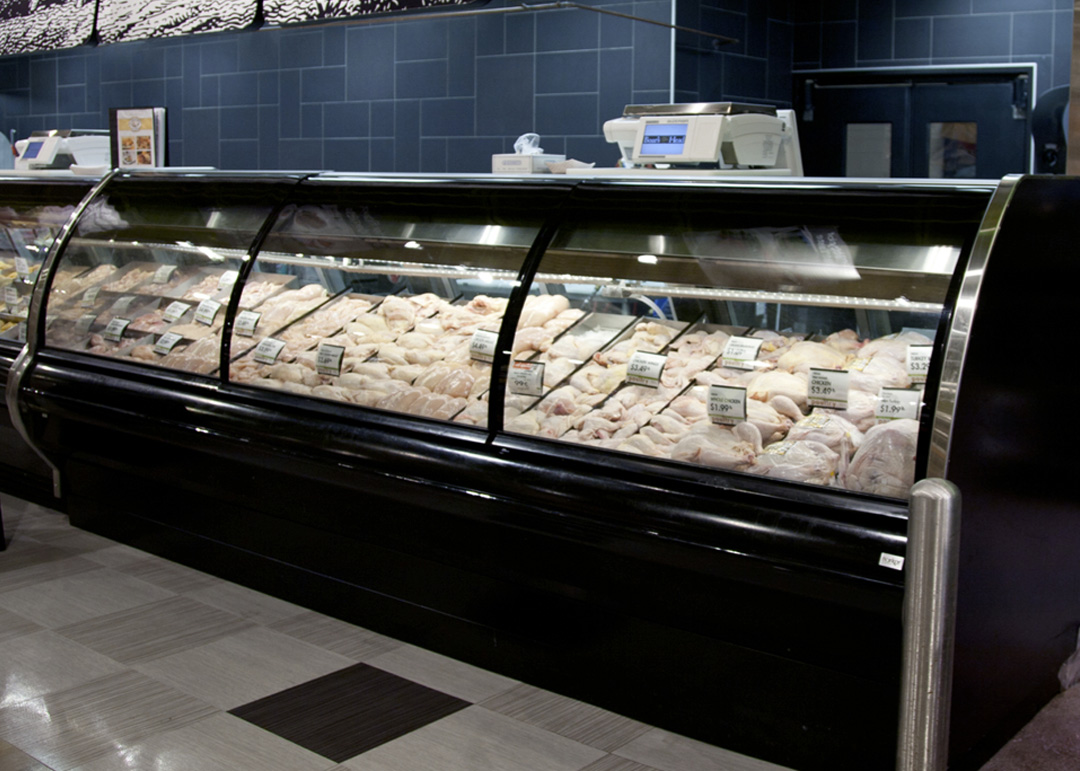

Hillphoenix SSAM-RG Single-Deck, Refrigerated, Gravity Coil Display. Designed for meat and seafood applications. Curved glass profile. Front of case lines up with the SSA-RG, SSAW-R, SSAS-RG and SSA-R for a continuous department look. Available in several case lengths and heights.



Features and Benefits

  • C-frame with bullet leg construction.
  • Standard 50-1/2”H with 7”H base frame height.
  • Exterior: Painted metal, including lower front panel above base.
  • Stainless steel base trim, front and sides.
  • Stainless steel exterior trim.
  • Painted metal outside back and rear base trim.
  • Stainless steel top sill.
  • Clear rear load doors with black frames.
  • 5/8” thermopane, insulated regular-glare curved lift front glass.
  • Gray glass gasket, wipe and glass handle.
  • Stainless steel interior.
  • Interior trim to match interior.
  • Black plastic coil covers with fixed black wire rack.
  • LED canopy lighting.
  • Rear electrical box mounted behind the lower panel.
  • Gravity (large) with serpentine assist meat model.
  • Solar digital thermometer.
  • Remote DX refrigeration package.



Available Options

  • Available lengths: 4’, 6’, 8’ and 12’.
  • Case heights available: 52-1/2” and 54-1/2”.
  • Alternate flexible base heights include: 9” and 11”H.
  • Extruded polymer base trim.
  • Painted metal base trim.
  • Master with nose bumper.
  • Cart bumper (for flat front profile).
  • Exterior stainless steel finish.
  • Solid surface or stone case top.
  • Integrated casetop scale stand.
  • Adjustable scalestand.
  • White plastic coil covers.
  • Adjustable wire racks.
  • Heavy-duty stainless steel deck.
  • Reflective rear load doors.
  • Black glass gasket, wipe and glass handle.
  • Rear flip-up work boards.
  • ISO outlet/CON outlets.
  • Solid interior mirror polish stainless steel, thermal glass divider or glass ends.
  • Remote glycol or CO2 refrigeration packages.
  • (1)12” Stainless steel upper shelf.


SSAM-RG

Compare

Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
