BMD-RG Single-Deck Refrigerated Gravity Coil Service Case


Service Single-Deck

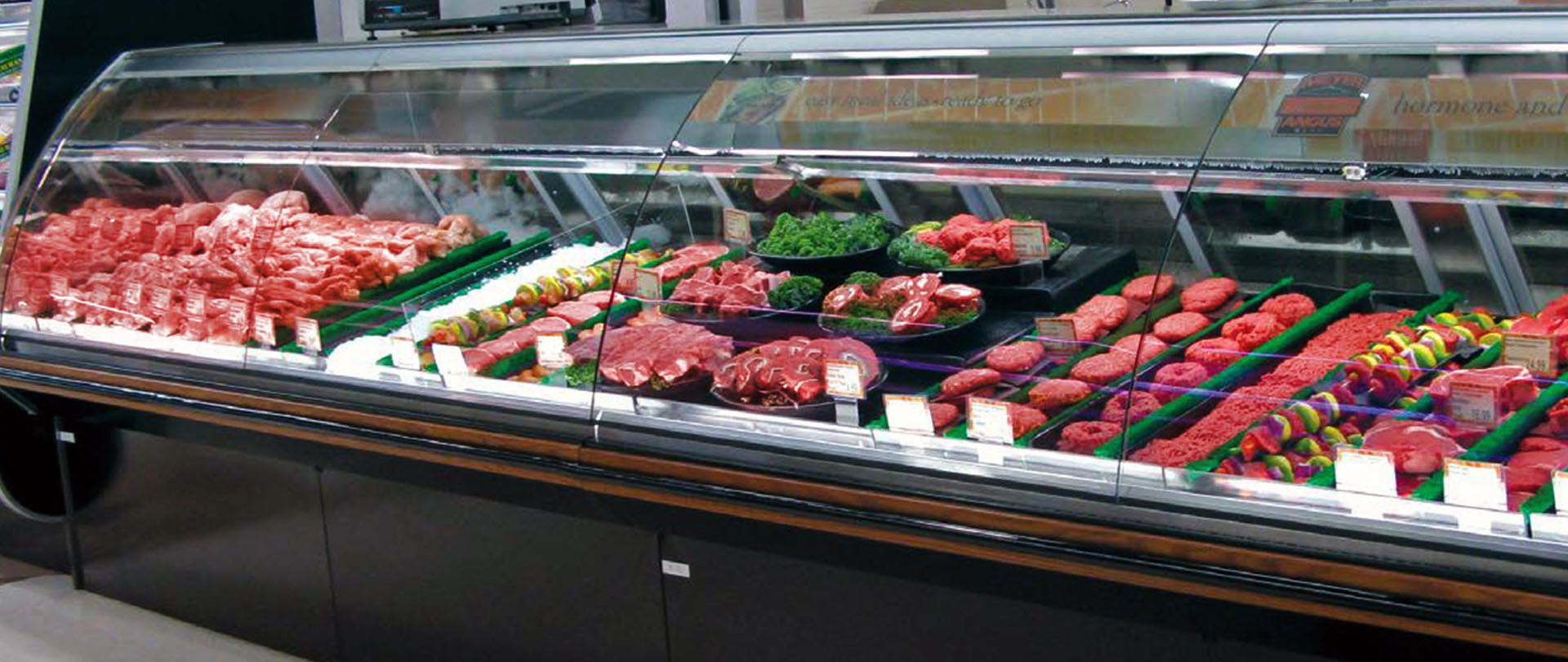

Hillphoenix BMD-RG Single-Deck, Refrigerated, Gravity Coil Service Case. Designed for meat and seafood applications. Available in various lengths with flat or curved, lift glass profiles. Front profile lines up with the BMD-R Bakery, BMD-D, BMDH and BMD-R Deli.


Features and Benefits

  • Sled runner base construction.
  • Standard 51”H and 44”D.
  • 7-13/16”H toe kick height.
  • 45° front die board.
  • Painted metal exterior.
  • Stainless steel base trim, front and sides.
  • Stainless steel exterior trim.
  • Stainless steel outside back and case top.
  • Reflective rear load doors.
  • Single-pane, regularglare, flat lift front glass.
  • Stainless steel interior and trim.
  • Flat bottom merchandising deck.
  • LED top lighting.
  • Gravity coil with serpentine assist model.
  • Rear electrical raceway.
  • Solar digital thermometer.
  • Remote DX refrigeration package.

Available Options

  • Available lengths: 4’, 6’, 8’, 10’ and 12’.
  • Available case heights: 54”.
  • Alternate toe kick height include: 6-5/16”H.
  • Bullet leg base with adjustable height toe kick.
  • Painted metal base trim.
  • Cart bumper.
  • Exterior stainless steel finish.
  • Solid surface or stone case top.
  • Integrated case top scale stand.
  • Adjustable scale stand.
  • Clear rear-load doors.
  • Curved regular glare lift front glass.
  • Rear fixed or flip-up work boards.
  • ISO outlet/CON outlets.
  • Solid interior mirror-polish stainless steel, thermal glass divider or glass ends.
  • Remote glycol or CO2 refrigeration packages.


Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
