CF-SFC Convenience Store Self Service Multi-Deck Display Case | HillPhoenix


Self-Service Multi-Deck

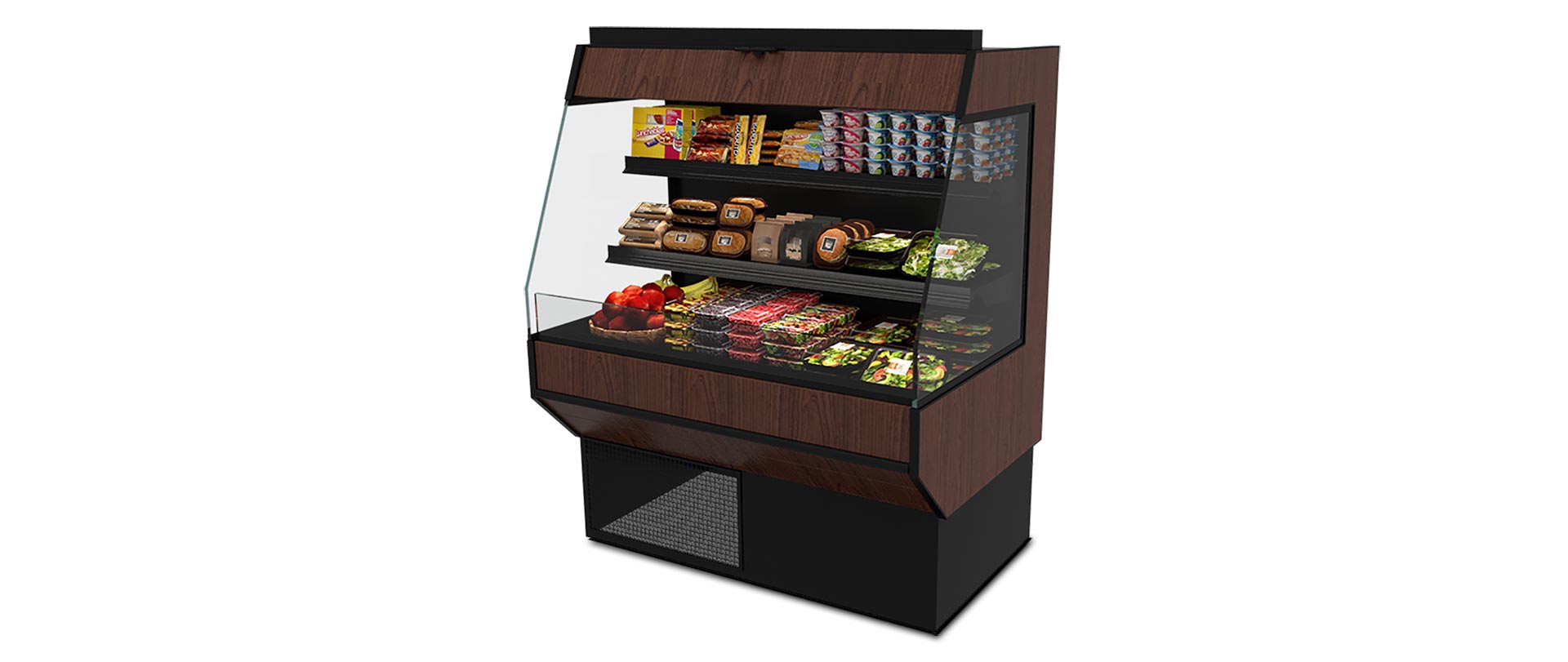

Hillphoenix CF Series Self-Service, Multi-Deck Display Case Is a Medium-Temperature Merchandiser that is available in multiple case lengths in remote and self-contained.  Available in two case heights: 57-3/4″H and 78-1/2″H and two depths.

Fast Facts

  • The LED lighting, combined with the flexibility of adjustable shelves, provides a superior product visibility design, allowing the customer to see the product at a distance while always keeping it in the refrigerated zone at the desired NSF temperature.
  • Optional, rear condenser chimney exhaust provides flexibility in placement of the display case and improved shopper comfort with heat released from the top of the chimney.
  • Easy-to-remove, painted or stainless metal interior parts ensure ease of case cleaning, piece-by-piece without tools, for improved food safety, reduced labor costs and a sanitary environment ready to be merchandised.


*Product images may include additional options.

Optional Laminates

Select a laminate swatch below and see how it looks on the case.

Wild Cherry
Cocoa Maple
African Limba
River Cherry
Natural Oak
Natural Maple
Planked Pear
Macchiato Walnut
Prestige Walnut
Natural Cherry
Select Cherry

Paint Color Chart

Display cases are offered in various colors. Use the paint color chart below to view the available colors.

Click image to download

Paint colors and textures on screen may vary when compared to physical color samples.


Base Model Features

  • Sled runner base construction.
  • Closed base.
  • Flat front profile.
  • 18-3/16”H painted metal base, front, and sides.
  • Outside back unfinished galvaneal.
  • Case top painted to match the exterior.
  • Painted metal exterior and trim.
  • 5-1/2”H x 1/2” thick polished, straight die board plex.
  • Painted metal interior and trim.
  • Painted metal shelving:  10” & 14”D shelves in 57-3/4”H case and 10”, 12” & 14”D shelves in 78-1/2”H case.
  • Painted metal, fixed, flat bottom deck.
  • Left and right solid end panels.
  • Energy-efficient fans.
  • Solar digital thermometer.
  • Front electrical raceway location.
  • R-290 refrigeration package.
  • R-404a & R-448a on 6’ case lengths only.
  • Front-to-back: straight path with rear lower exhaust.

Available Options

  • See the sales sheet for case lengths and optional depths.
  • Sled runner base construction with leveling pads, and recessed or exposed casters.
  • Exterior finishes: exterior grade laminate or stainless steel.
  • Exterior back panel:  painted metal or stainless.
  • Case top: solid surface, butcher block, laminate, poly, or stone finish.
  • Interior finishes: stainless steel.
  • Clearvoyant® LED top light.
  • Separate on/off light switch.
  • Shelf finish: Stainless steel or glass.
  • Shelf position:  flat or angled, lighted, product stops, and price tag molding.
  • Night cover: roller shade or polycarbonate panel.
  • Full-view, partial-view end panels or thermal divider.
  • Cart bumper mounted on the front panel of the case: single or dual row.
  • Cart bumper added to end panels.
  • 6’ UL cord and plug.
  • Rear 2” chimney exhaust front-to-back airflow.
  • Back to front airflow exhaust.
  • Remote DX, glycol or CO2 refrigeration packages.

Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Designed for optimal performance in store environments where temperatures and humidity do not exceed 75F and 55%R.H. Specifications are subject to change without notice. Certified to UL 471 and ANSI/NSF standard 7.

The CF R-290 version is designed for optimal performance in store environments where temperatures and humidity do not exceed 80F and 55%R.H. Specifications are subject to change without notice. Certified to UL 471 and ANSI/NSF standard 7.
