CO2One Single Condensing Unit

CO2One comes in a small, convenient footprint ideal for small capacity loads in any size store. It offers Low Temp and Medium Temp with a single condensing unit or a split system.

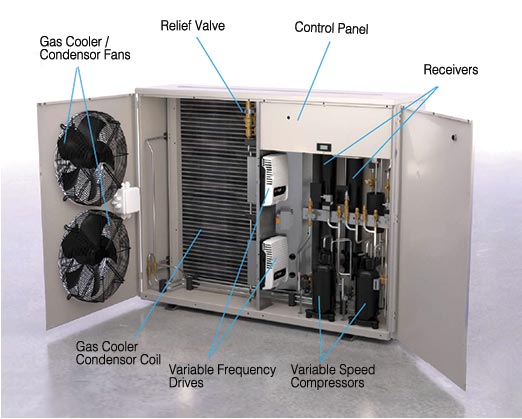

CO2One inside components

  • Rated for outdoor installation.
  • Easy installation and start-up.
  • Variable speed compressor to match load demand.
  • Onboard controller to manage high-side operations.
  • Can be used as a distributed or central system.
  • Low Noise.

Second Nature - CO2One Single Condensing Unit

Refrigeration Regulations - Are you ready?

Second Nature - CO2One Single Condensing Unit

Second Nature - CO2One Single Condensing Unit

Features & Benefits

The natural ONE.
CO2 is a naturally occurring refrigerant that’s plentiful and less expensive than HFC refrigerants. Plus, CO2ONE requires a smaller refrigerant charge at installation. Even more important, CO2 saves owners the future worry of transitioning to “natural refrigerants” to comply with future regulations — CO2 is simply as natural as it gets.

The convenient ONE.
CO2ONE is ideal for use in a Distributed System. Its smaller footprint units can be placed outside to free up valuable floor space. Installations can be located closer to loads, which results in less field piping and wiring as well as a reduced potential for leaks. The single condensing unit includes only the condensing unit, while the Split System comes complete with the condensing unit, controller, and unit cooler in one compact and convenient package.

The ready ONE.
No matter the application, every CO2ONE is delivered with everything required for installation. To make things even better, a split system package includes everything needed to install on a walk-in cooler or freezer. Whenever service or regular maintenance is required, CO2ONE is ready for that as well with easy access to make those tasks as quick and hassle-free as possible.

The smart ONE.
A CO2ONE unit can be used as a direct replacement for HFC single condensing units. They utilize a variable speed compressor to match load requirements more closely for increased efficiency.

The experienced ONE.
CO2ONE comes from the premier natural refrigerant experts in the refrigeration industry — Hillphoenix. We have the industry’s most robust product line of eco-friendly solutions and years of CO2 practical experience. Our training program has become one that trains the whole industry. When it comes to superior products, market-leading technologies, and above and beyond service, CO2ONE by Hillphoenix is the one.

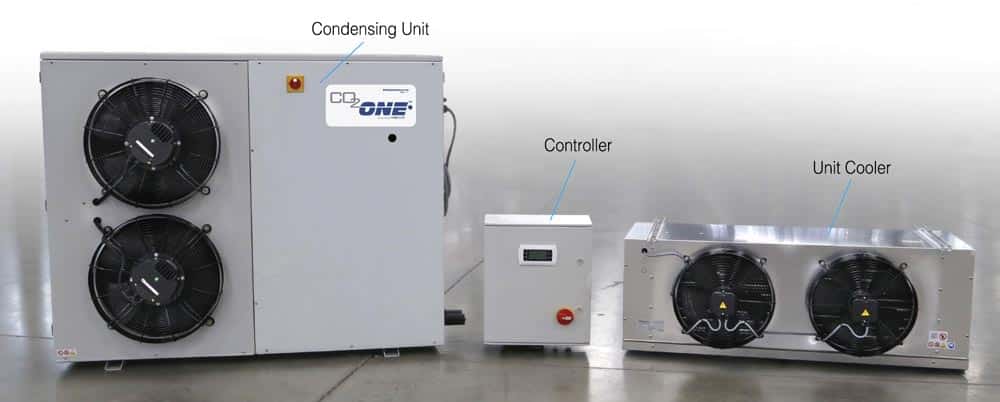

Split System Package

CO2One Split Systems Package

Time to split?
The CO2ONE Split System is the latest refrigeration system from Hillphoenix and the newest addition to the company’s portfolio of eco-friendly all natural products.

Solve tomorrow’s regulations today.
Quit worrying. A CO2ONE Split System uses all-natural CO2 refrigerant—much more plentiful and less expensive than HFC refrigerants. It’s a future-proof solution that does the job with GWP=1 and ODP=0.

Split it and fit it anywhere.
The smaller CO2ONE Split System, available in LT and MT applications, has a footprint that’s at home in a back room, on mezzanines or even outside to free up value floor space.

Perfect for walk-in coolers and freezers.
Split Systems come complete with the condensing unit, controller, and unit cooler in one compact and convenient package. Installation on walk-in coolers or freezers is a breeze and an ideal adaptation!

A split system upgrade means less disruption.
It’s perfect for phased remodels, distributed refrigeration architecture and smaller formats because split systems allow the end user to change out only part of their store at a time for less disruption. (An important benefit with new regulations tending toward weighted average GWP values!)

Split System Specifics:

  • Same features as CDU’s, but with the addition of a unit cooler and controls package
  • Unit coolers are matched to CDU capacity
  • Controls package regulates box temps and defrost
  • Available with air (MT) or electric (LT) defrost options
  • Rapid connections between unit, evaporator, and control panel make split systems quick and easy-to-install CO2 solutions.
  • The design offers an all-in-one complete system for CO2 trans-critical application, ready to be installed from the factory.



Split Systems Features:

  • Easy installation and start-up.
  • Variable speed compressor to match load demand.
  • Controller to manage complete system.
  • Can be used as a distributed or central system.
  • Split system includes condensing unit, controller and unit cooler.
  • Low Noise.
  • Unit coolers available with air (MT) or electric (LT) defrost options.



CO2One should be used with Hillphoenix supplied cases or unit coolers. These cases and unit coolers come equipped with 60 Bar rated evaporators, electronic expansion valves and the necessary controls for use with CO2. Any customer supplied cases or units must, at a minimum, have the above features and capabilities.
