FT-R Multi-Deck Refrigerated Self-Service Floral Display Case


Self-Service Single-Deck

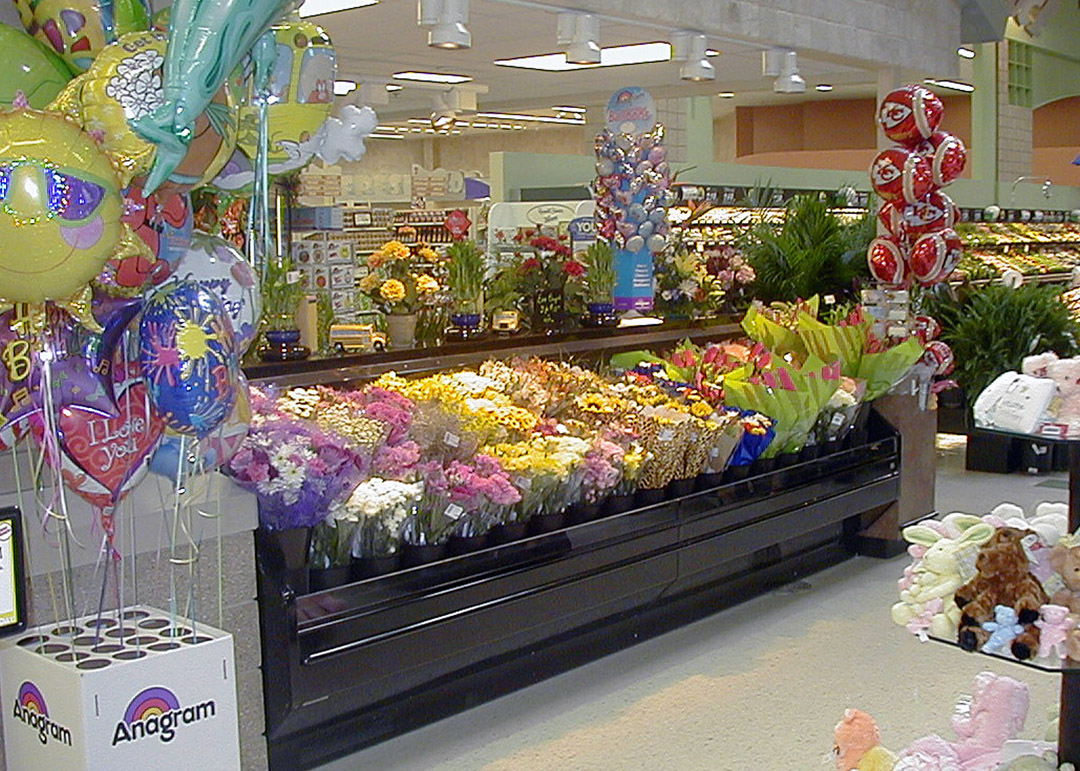

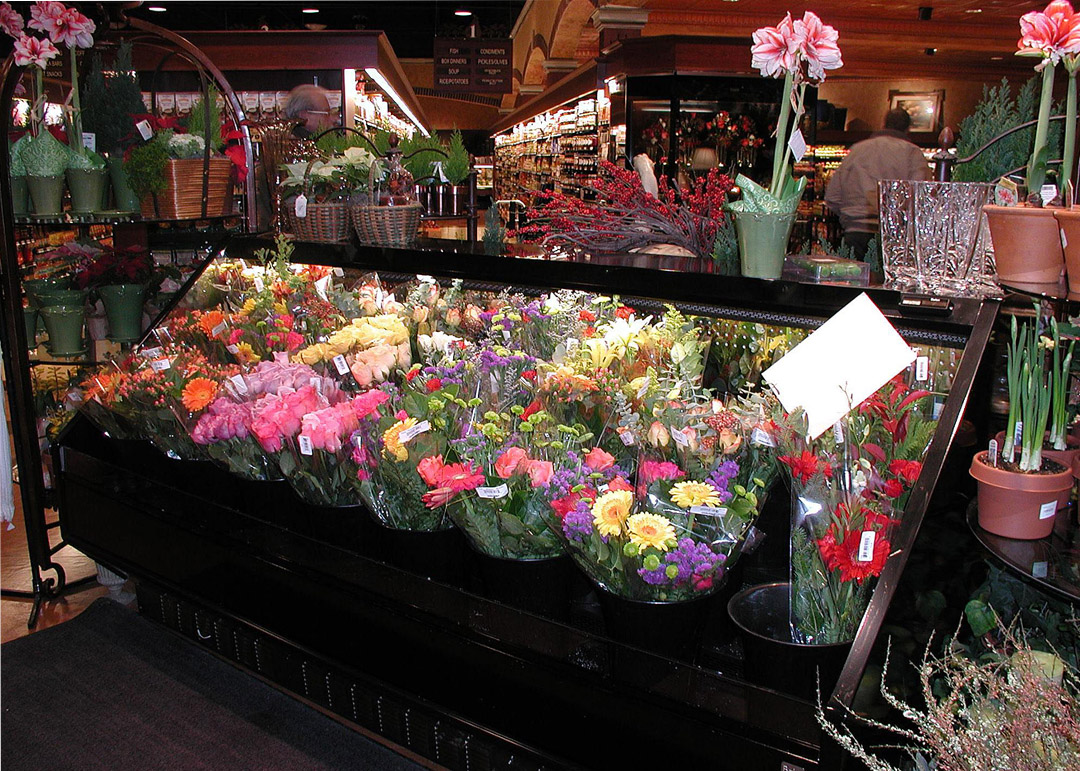

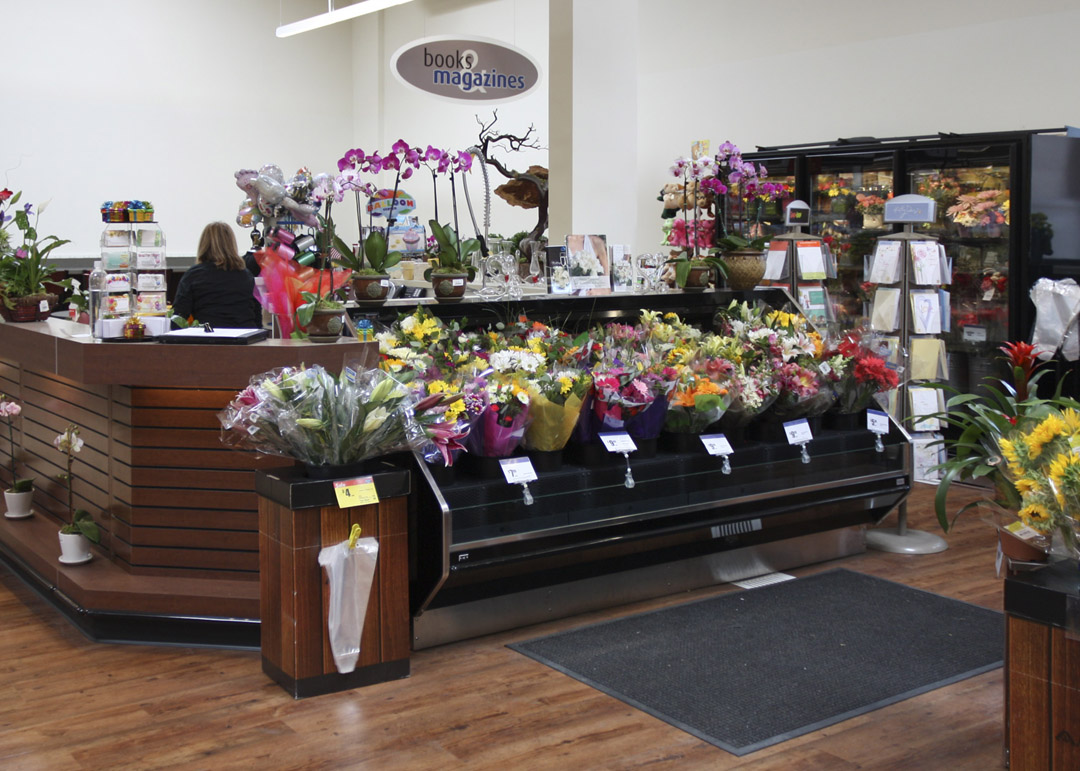

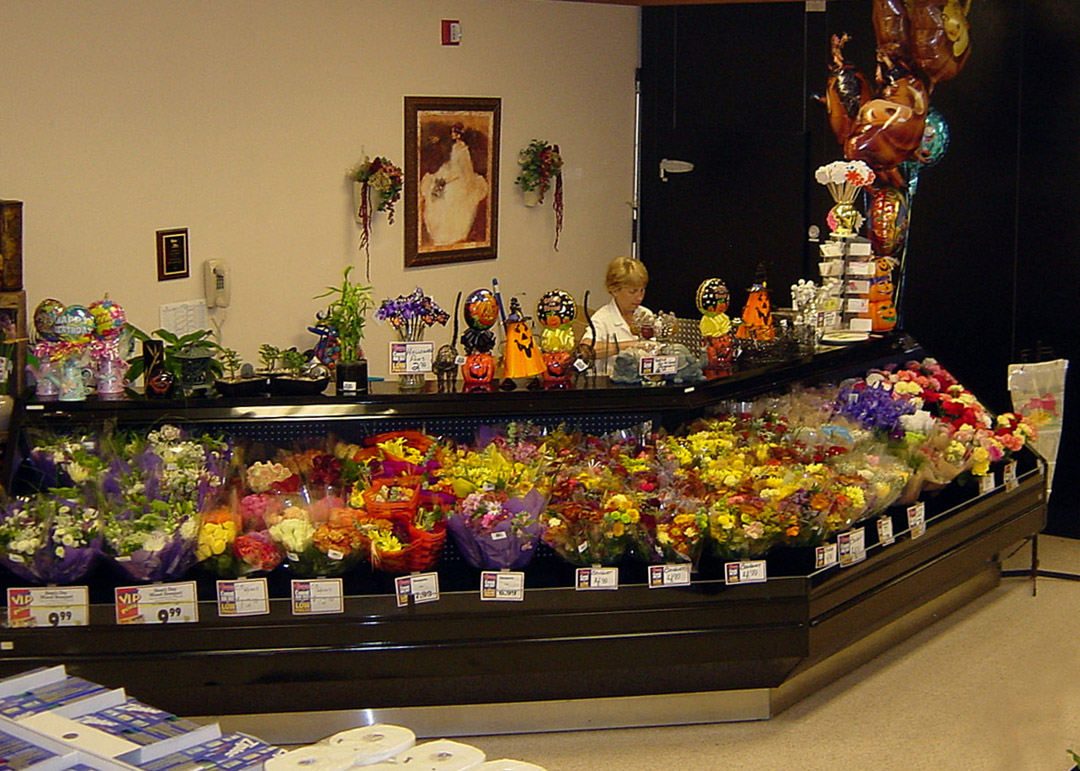

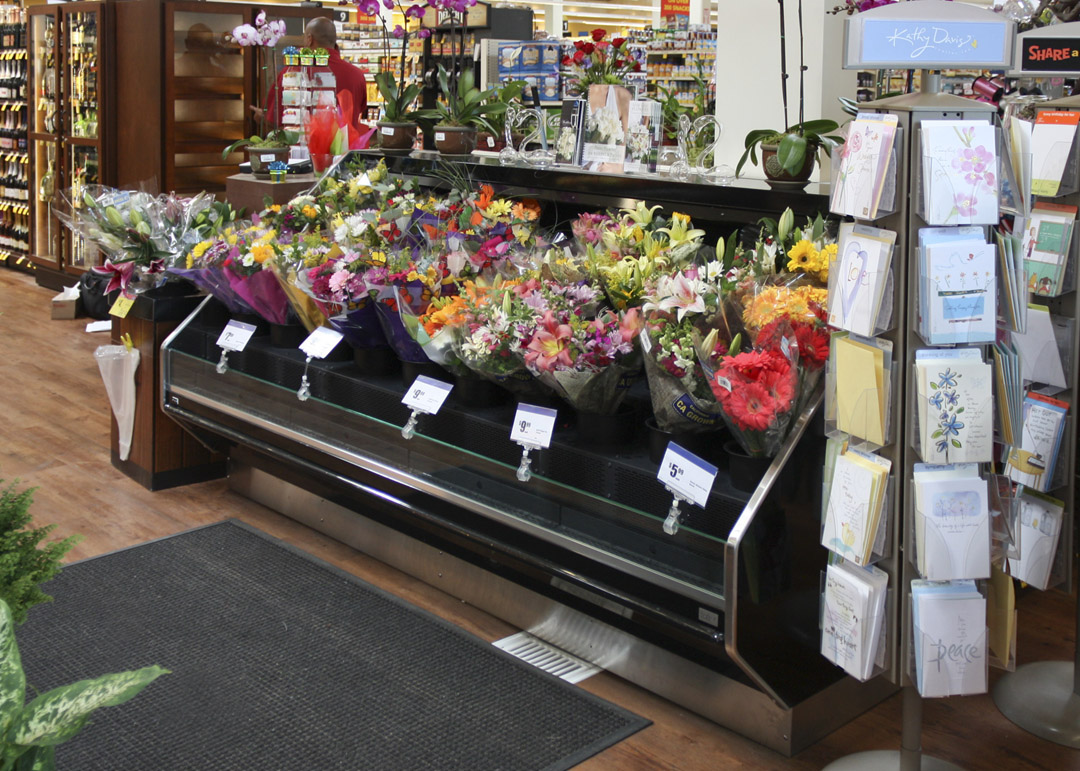

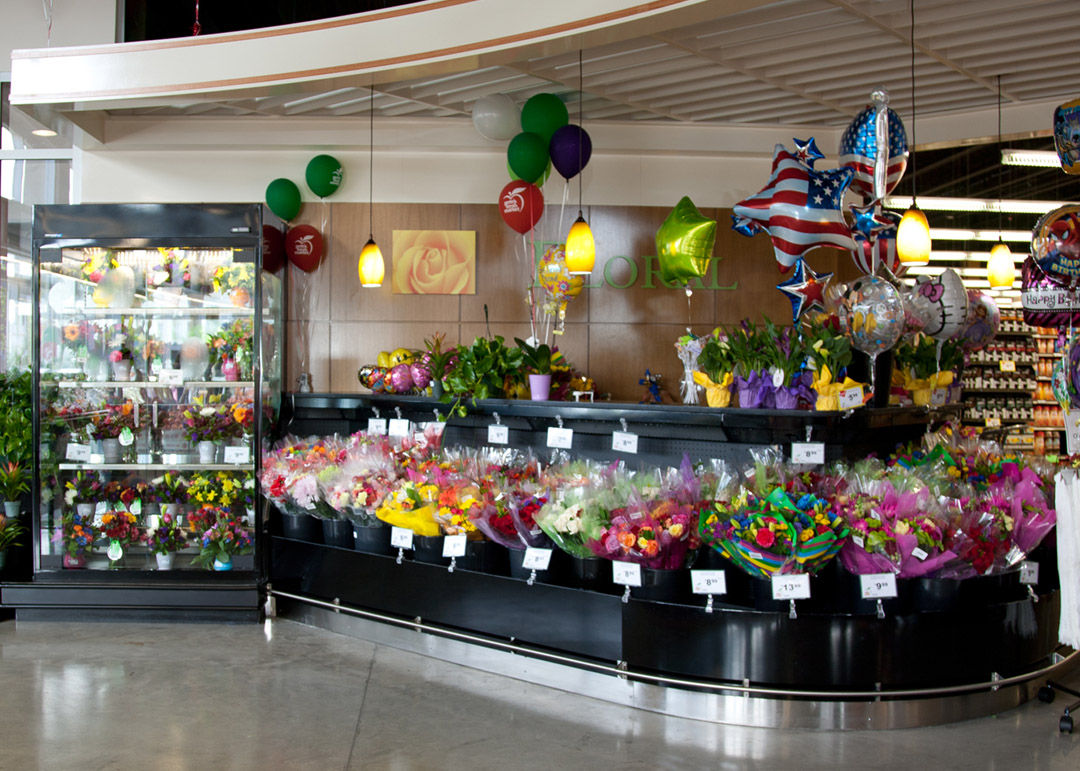

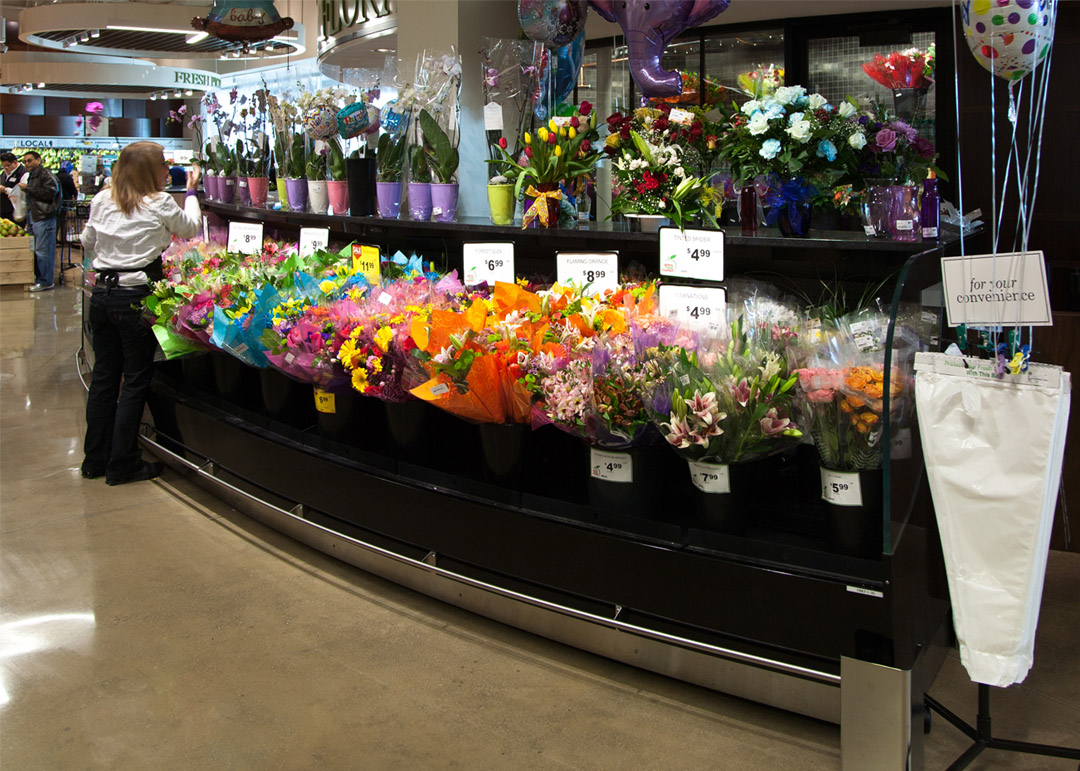

Hillphoenix FT-R Multi-Deck, Refrigerated, Self-Service Display. Designed for floral applications. A two-step display with black vases creates a cascade of fresh cut flowers.


Features and Benefits

  • Sled runner base construction.
  • Standard 48”H and 42”D, 12” case top.
  • Standard 6-5/16” base height.
  • Black painted metal exterior and interior.
  • Stainless steel exterior trim.
  • Black painted metal outside back and 12”D case top and base trim.
  • Interior trim to match interior.
  • 3-tier, base plus 2-step, black painted metal step shelving.
  • 11”H x 7” diameter black display vases: 4’ = 12 vases, 6’ = 18 vases, 8’ = 24 vases, 10’ = 30 vases and 12’ = 36 vases.
  • LED canopy top light.
  • Painted black metal, flat bottom deck with 2” metal product stop.
  • Ballast box.
  • Solar digital thermometer.
  • Remote DX refrigeration package.

Available Options

  • Available lengths: 4’, 6’, 8’, 10’ and 12’.
  • Interior miters: 22.5° and 45°.
  • Exterior miters: 22.5°, 45° and 90°.
  • Exterior and interior wedges: 45° and 90°. All 90° wedges are designed with a 2’ straight case section with 22.5° miters on each end.
  • Flat front profile.
  • Bullet leg base with adjustable height toe kick.
  • Cart bumper.
  • Exterior finish: Standard grade laminate.
  • Case top: Solid surface, poly, or stone.
  • Rear storage with no shelf: Open dry, closed dry, or refrigerated.
  • Depth of rear storage: 14”, 16” or 18”.
  • Rear storage counter top: Fixed poly, removable poly, solid surface, stone or stainless steel.
  • Closed, refrigerated storage door option: Sliding glass doors.
  • Front or rear electrical raceway.


Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
