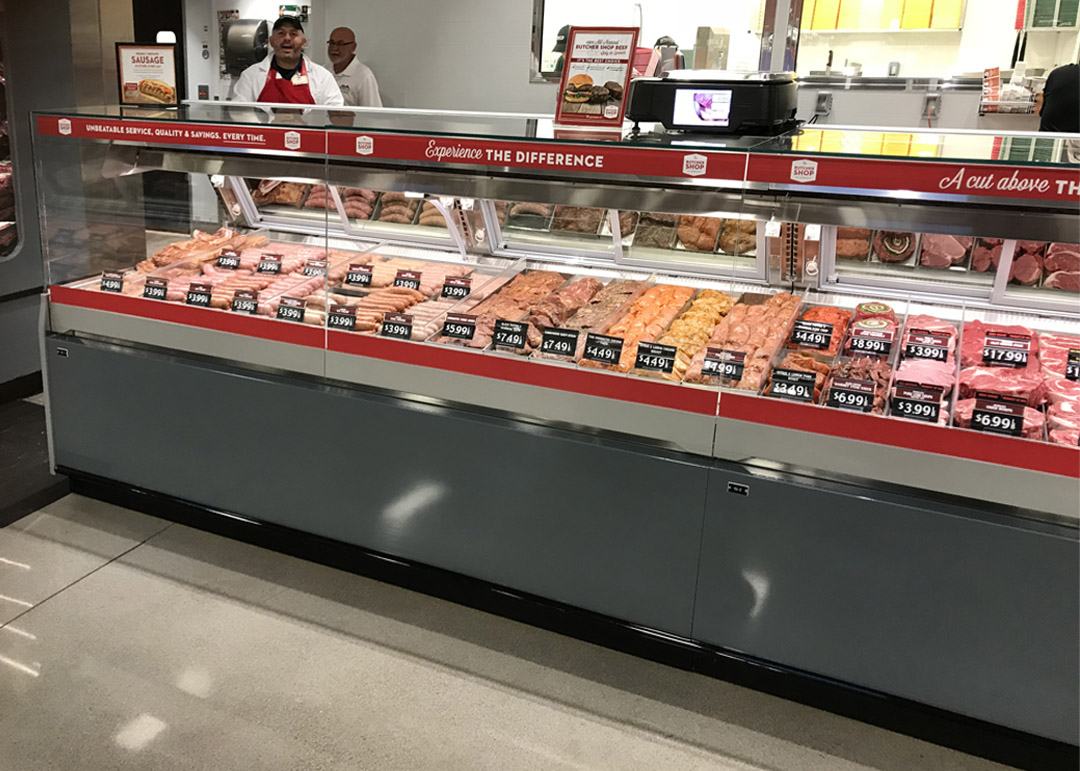

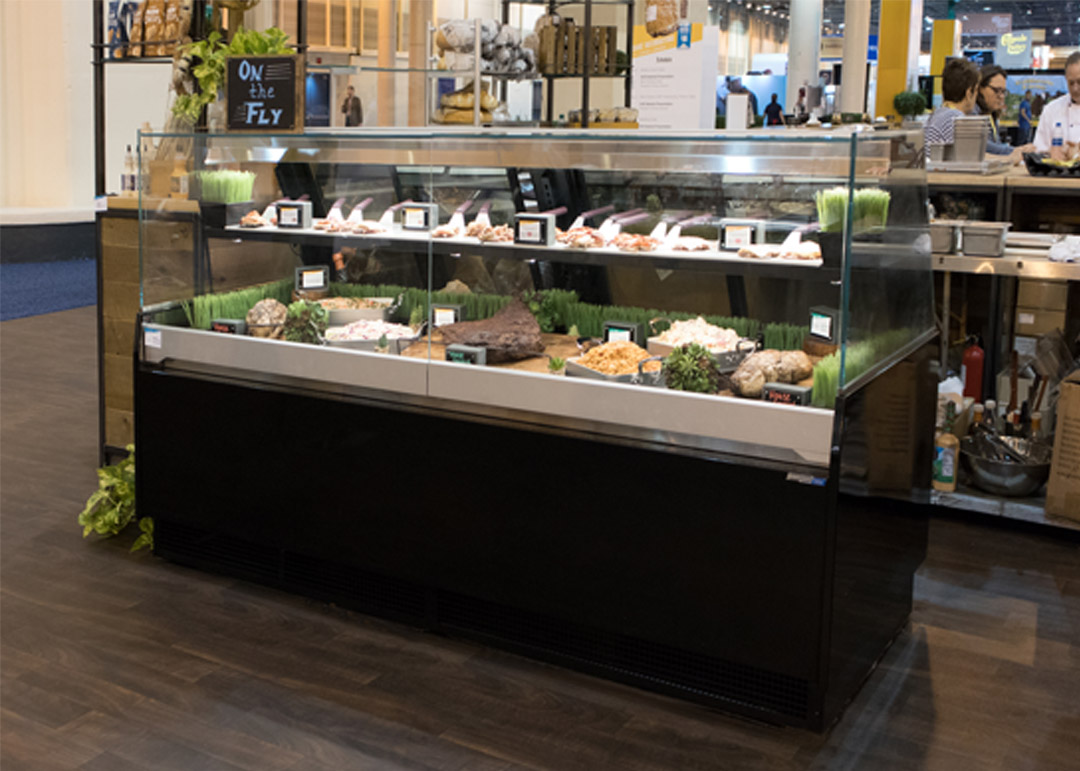

GMD-R Multi-Deck Service Refrigerated Deli and Bakery Display Case


Service Multi-Deck

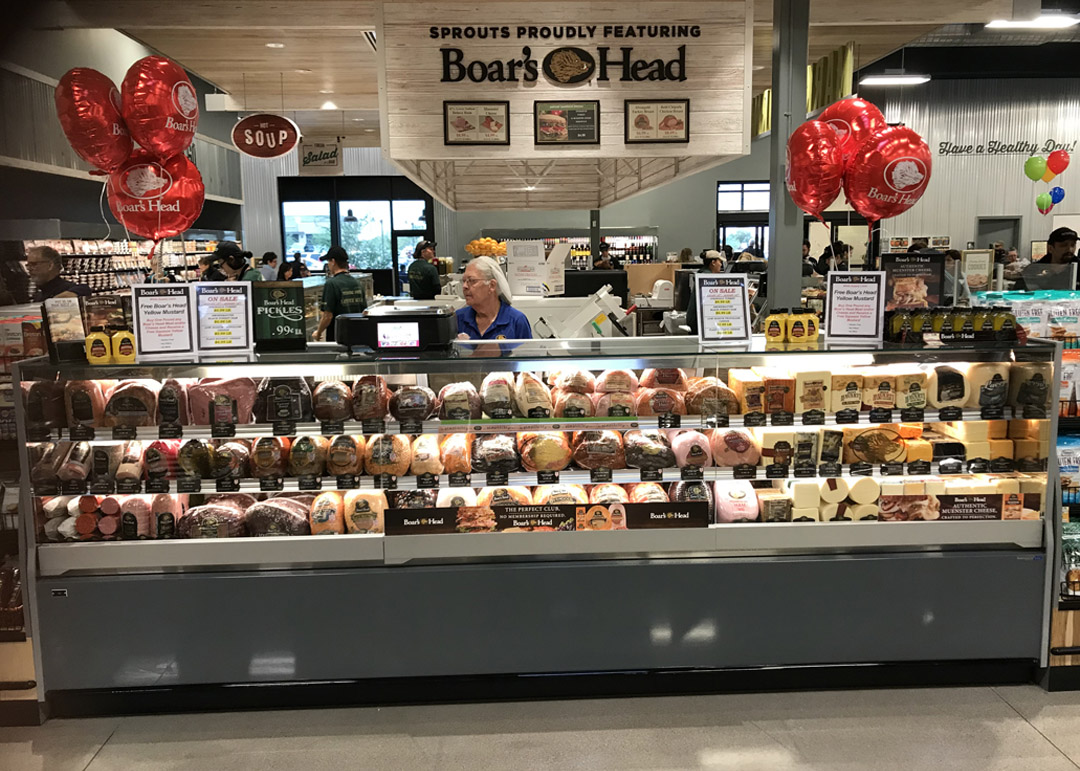

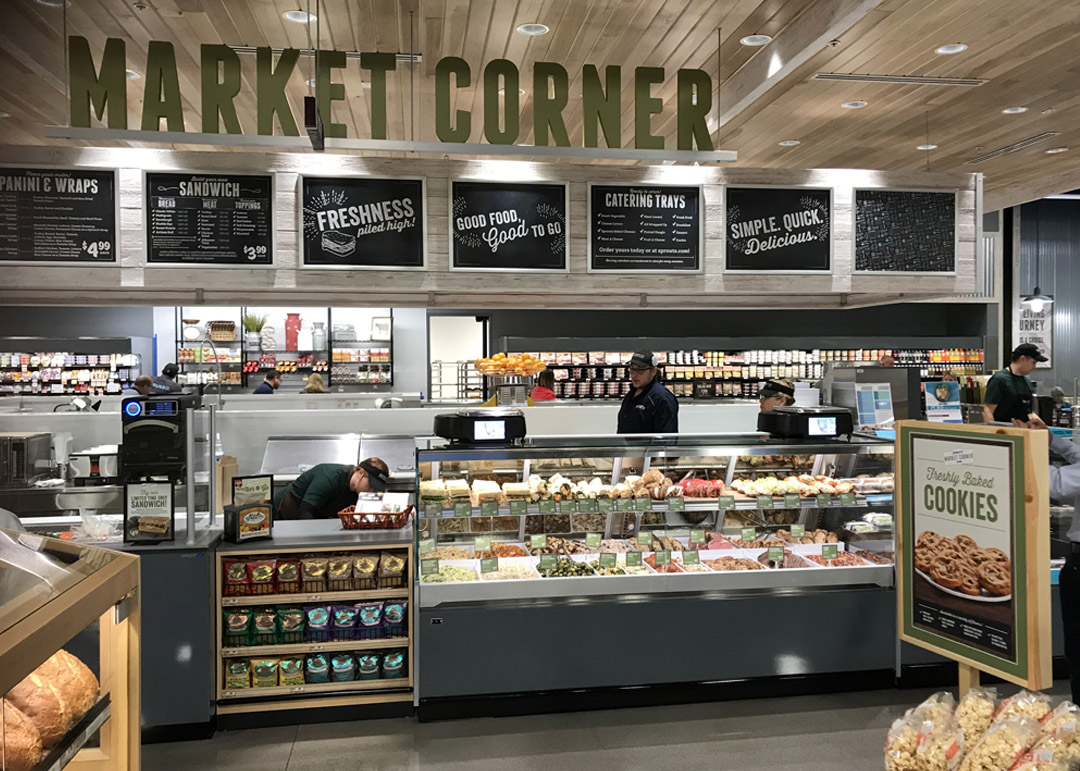

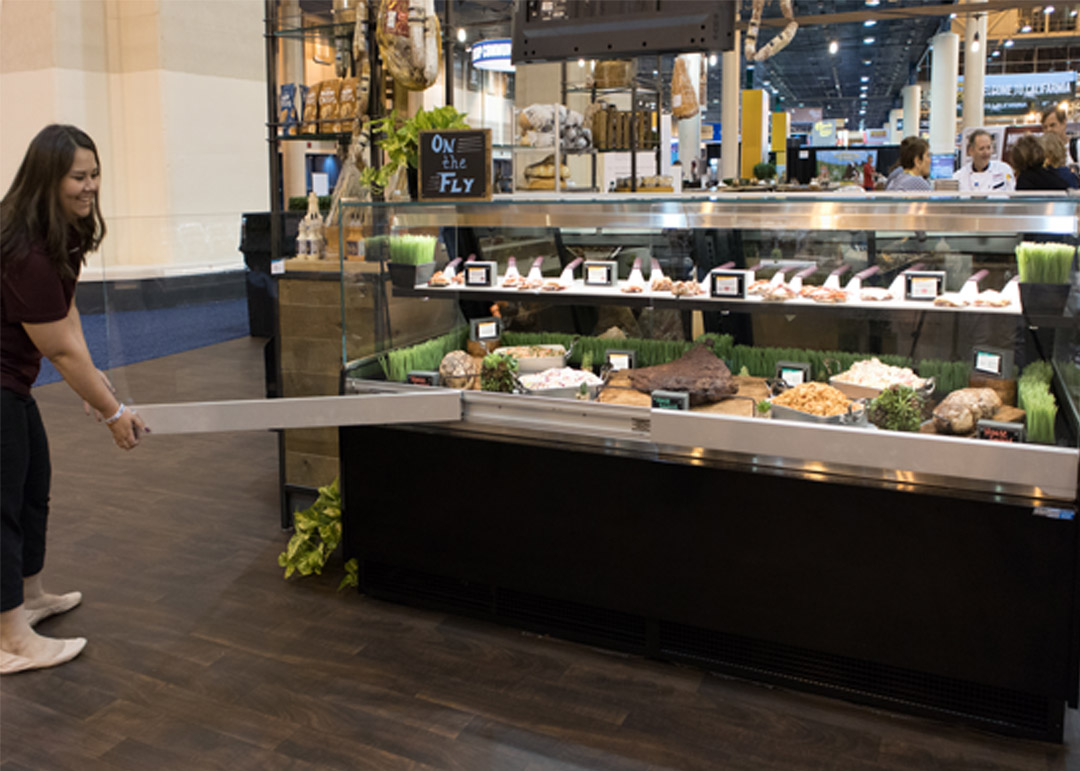

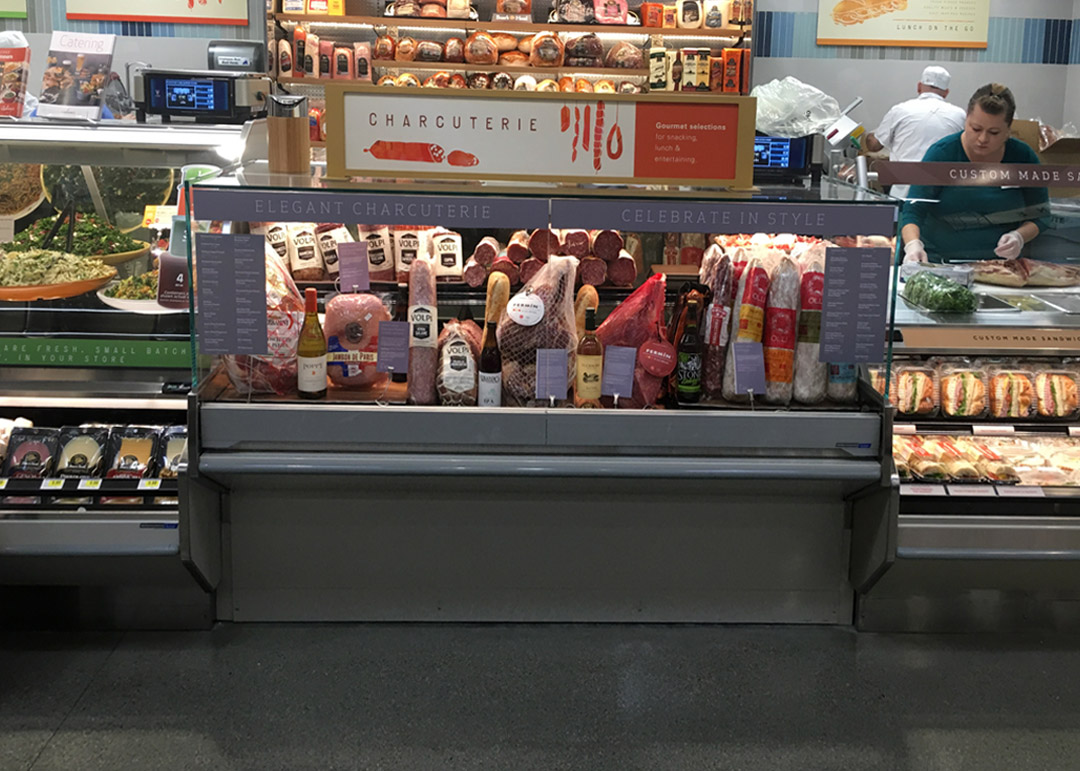

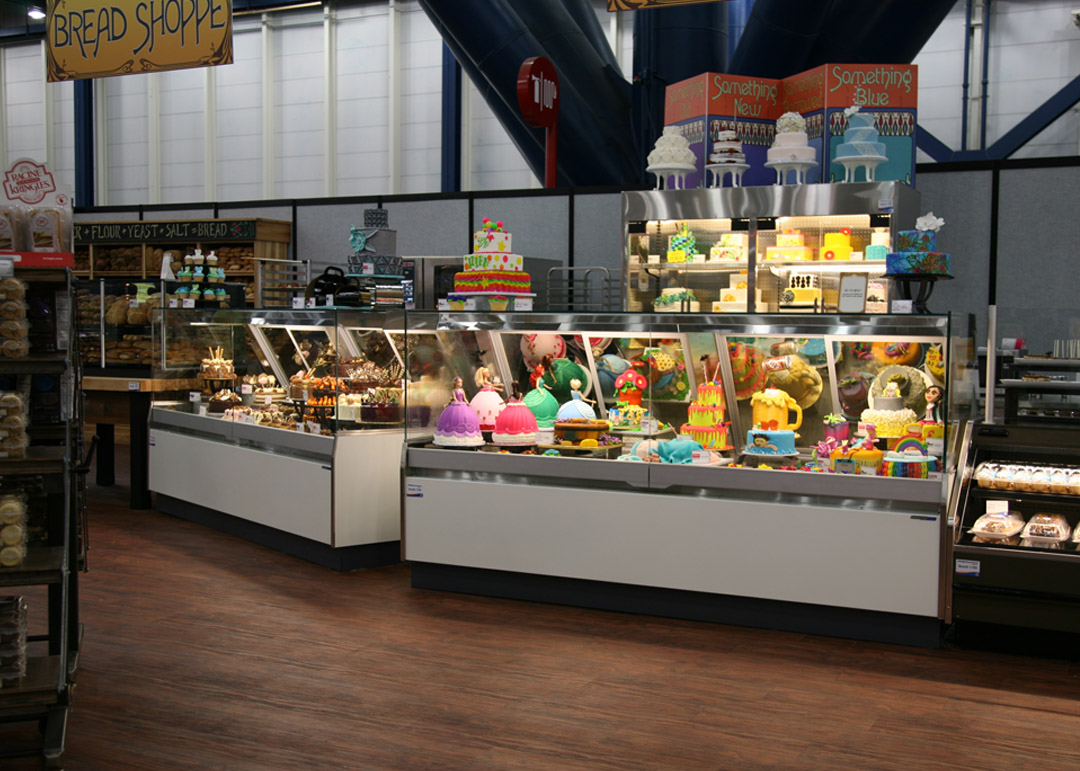

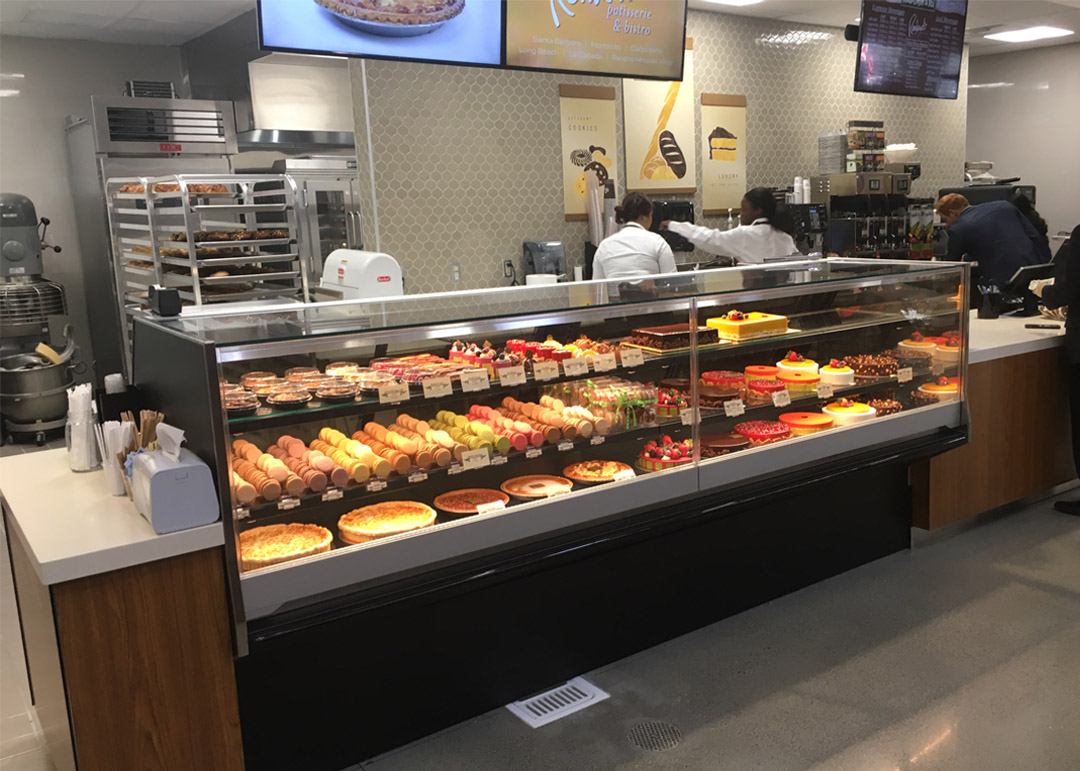

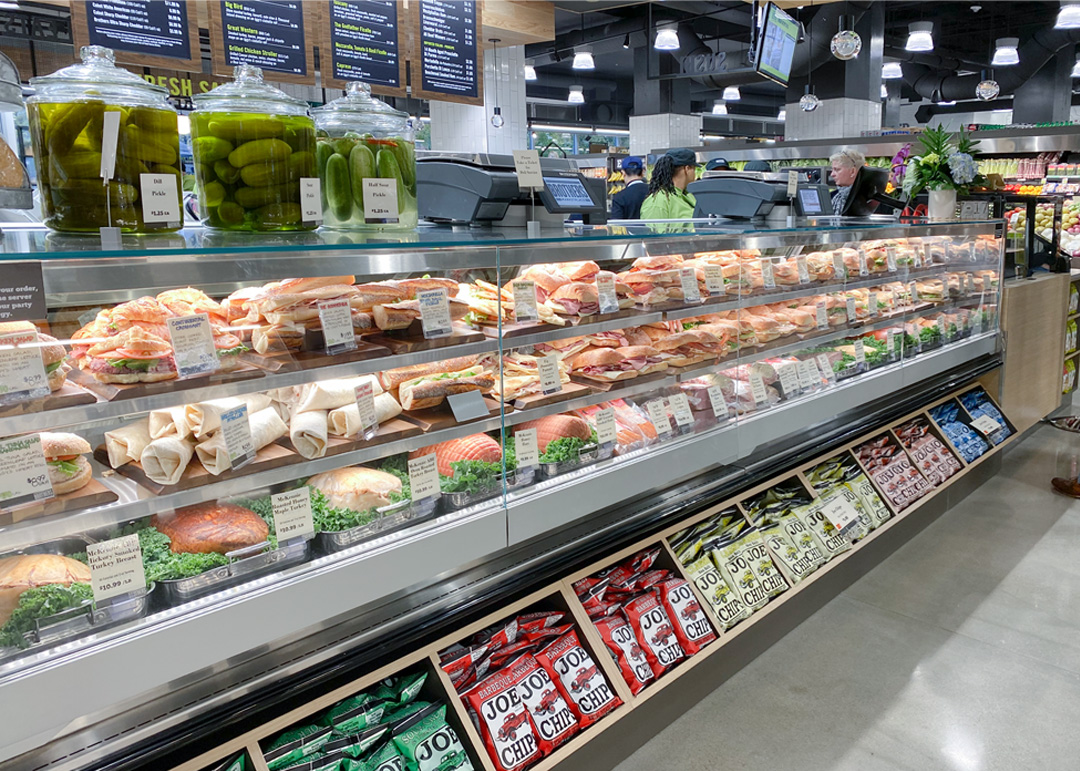

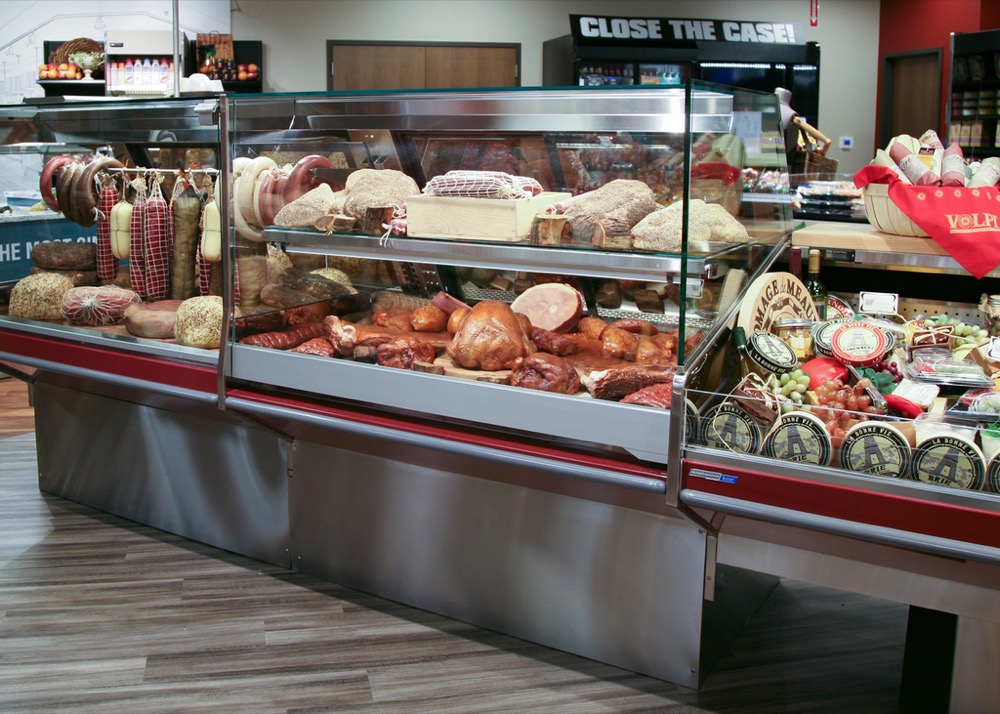

Hillphoenix GMD-R Multi-Deck, Service, Refrigerated Display. Designed for deli and bakery applications with up to two rows of shelves for merchandising. Available in various lengths with vertical slide glass hardware. Front profile lines up with the GMDH, GMD-RGC, GMD-RG and GSD-R as well as cases with the option for the SMD or SSD profiles.

  • 50-1/2”H & 42”D.
  • Sled runner base construction.
  • 60 degree dieboard.
  • Painted metal exterior.
  • 13-15/16”H base painted metal to match exterior.
  • Stainless steel exterior trim and outside back.
  • 3/8” glass case top.
  • Reflective rear load doors.
  • 1/4” single-pane, regular-glare vertical swing front glass.
  • Black painted metal interior.
  • LED top lighting.
  • Rear electrical raceway.
  • Energy efficient fans.
  • Remote DX refrigeration package.
  • Available in 4′, 6′, 8′, 10′ and 12′ lengths.
  • Mirror polish stainless steel, thermal glass divider or glass ends.
  • Alternate toekick height 15-5/16”H.
  • Exterior standard grade laminate.
  • ISO outlet.
  • Interior or exterior stainless steel finish.
  • Cart bumper.
  • Removable plexiglas rear sliding doors.
  • Up to 2 rows of shelves 16″ and 18″.
  • LED undershelf lighting.
  • Polytop, solid surface or stainless steel flip-up work tops.
  • Integrated case top scale stand with dedicated circuit for ISO receptacle.
  • Adjustable scale stand.
  • Alternative case thermometer.
  • Remote glycol or CO2 refrigeration packages.


Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
