GMD-RG | Hillphoenix


Service Multi-Deck

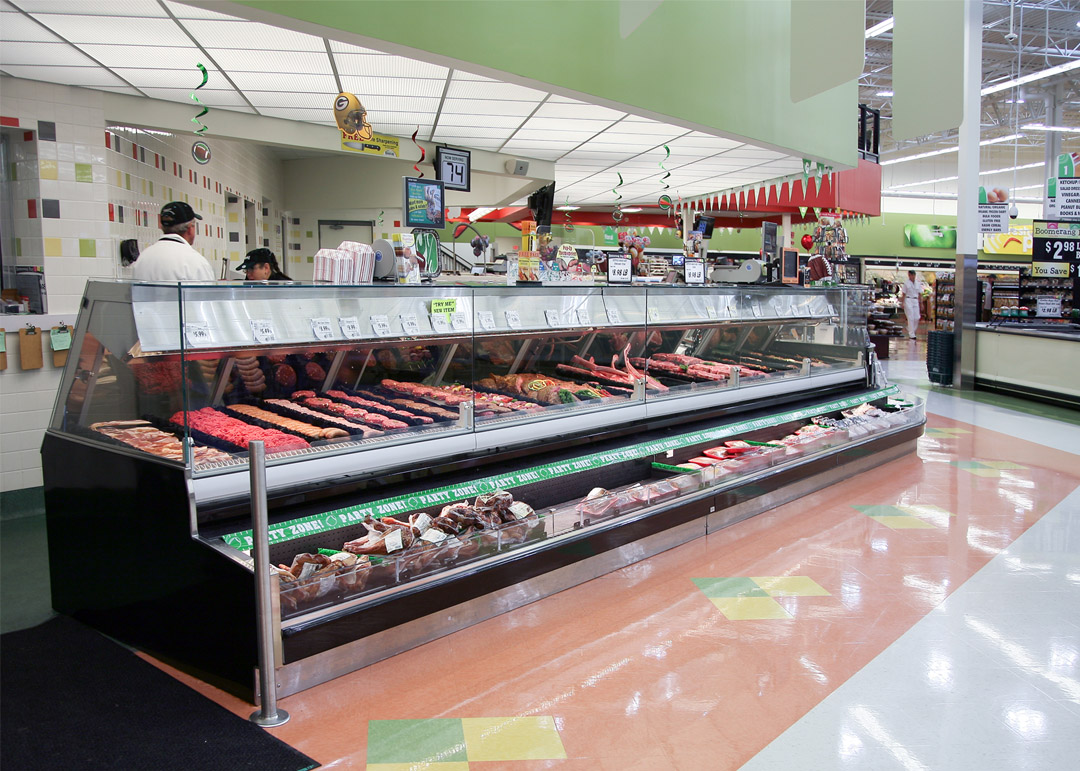

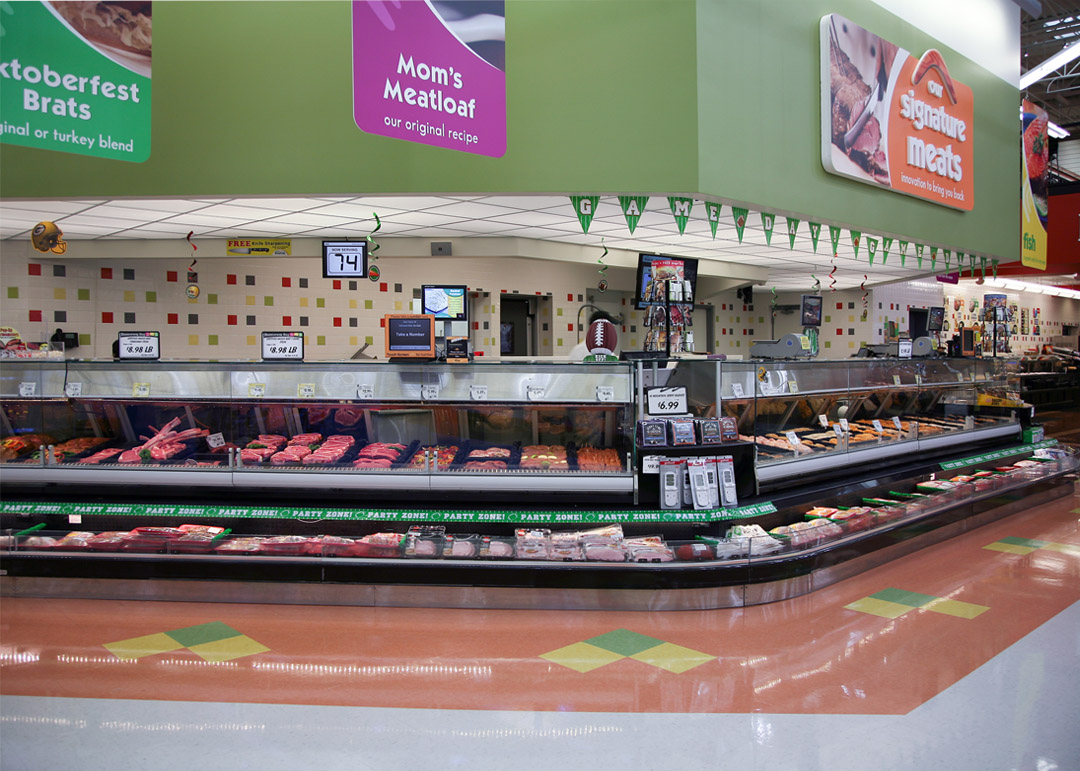

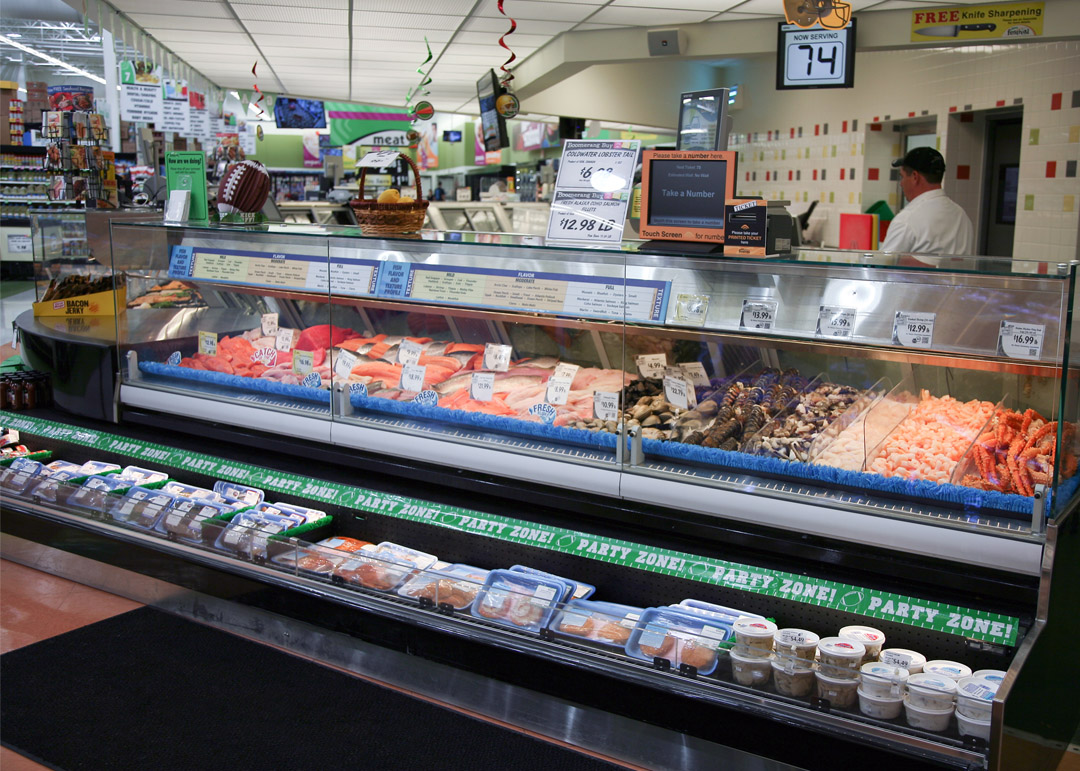

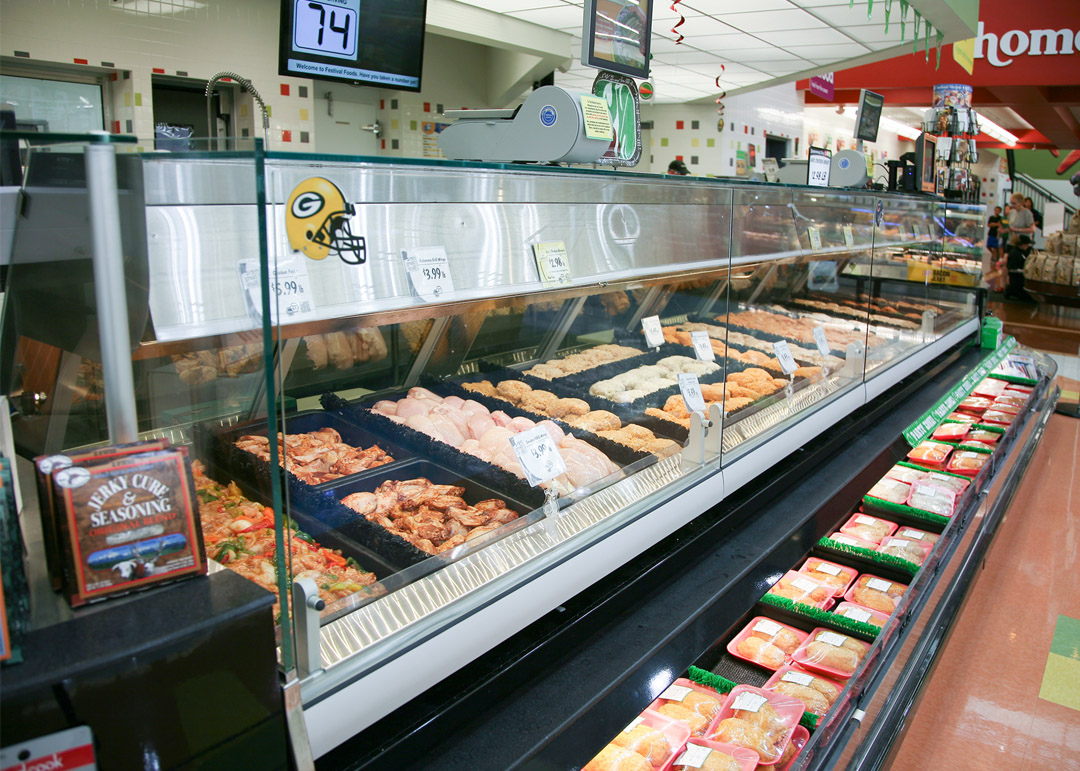

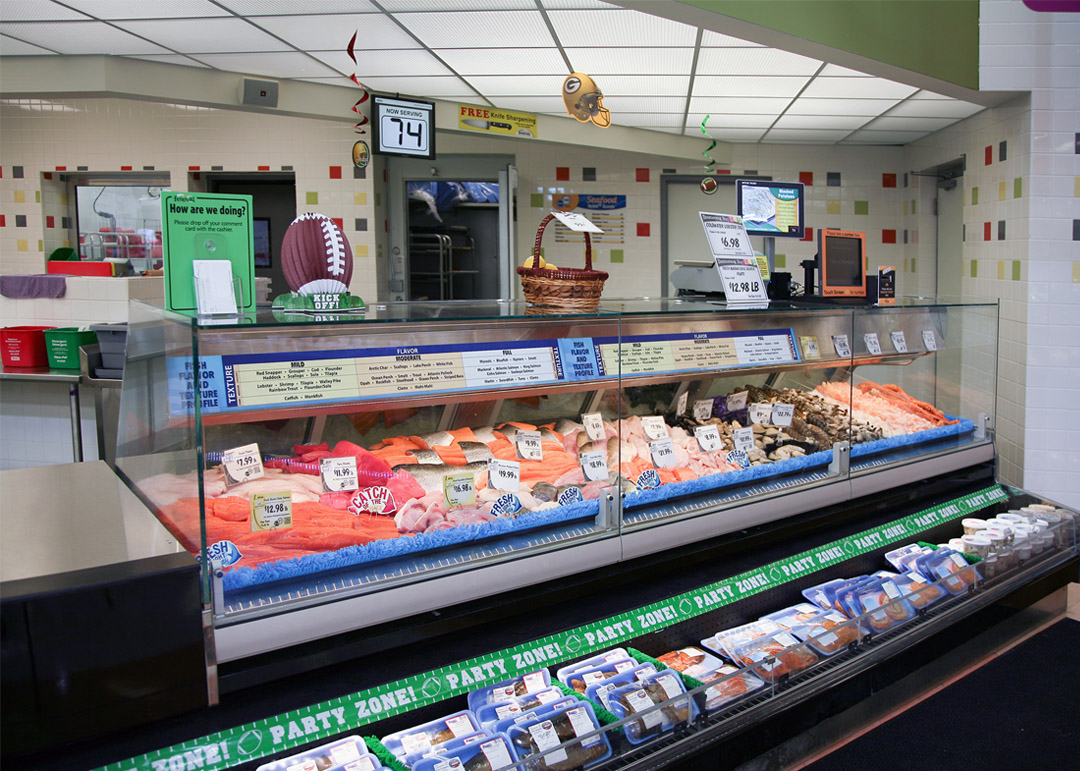

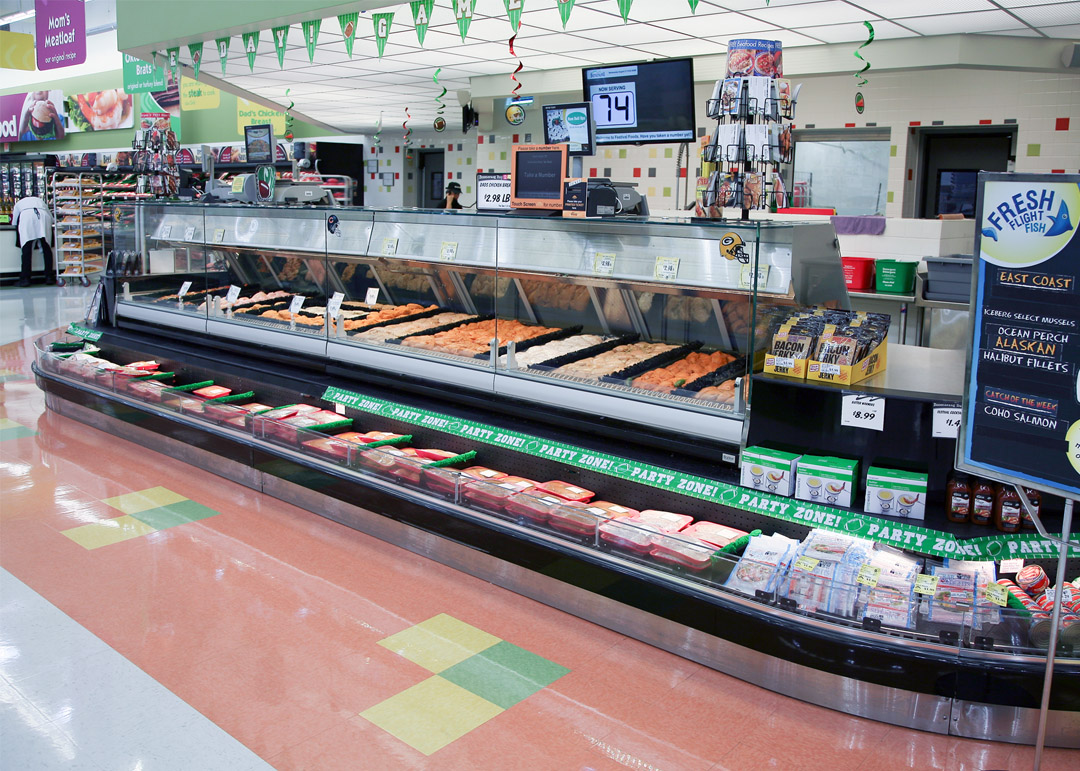

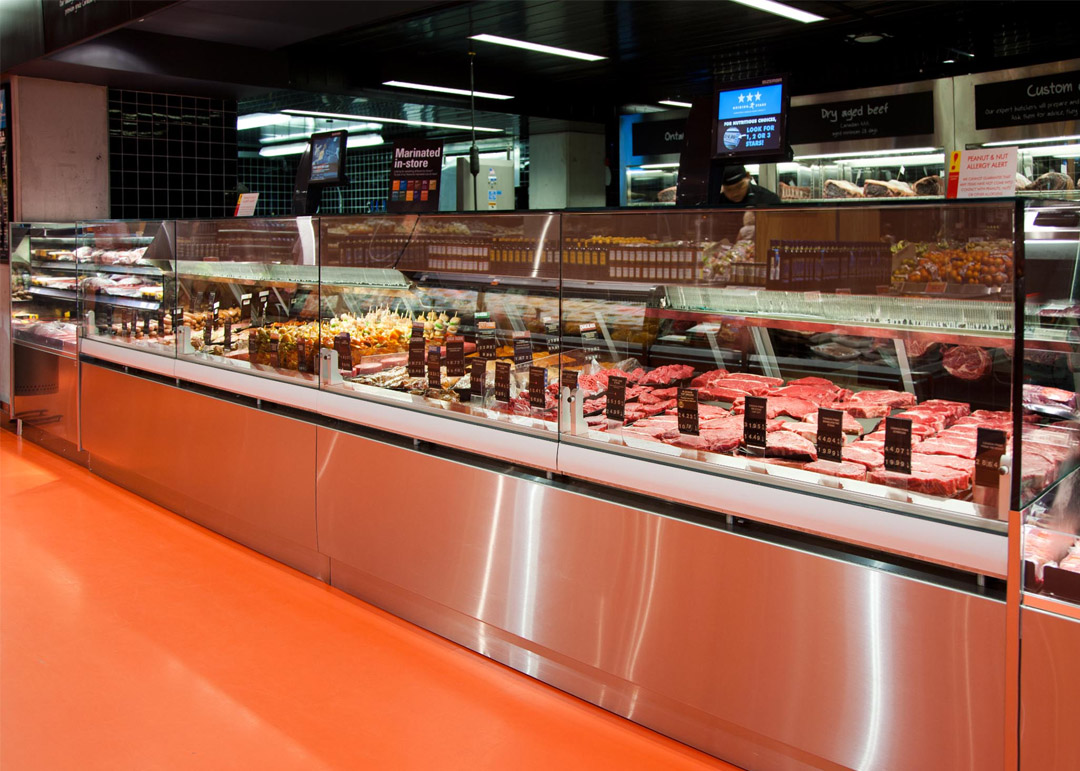

Hillphoenix GMD-RG Refrigerated Merchandiser with vertical slide glass for meat and seafood.

  • Sled runner base construction.
  • Standard 50-1/2”H with 42”D.
  • 15-15/16”H adjustable base painted metal to match exterior; Front & Sides.
  • Painted metal exterior.
  • Stainless steel exterior trim.
  • 25-3/4”D, 3/8” glass case top.
  • Stainless steel outside back including rear base trim.
  • Reflective rear load doors on straight cases.
  • 1/4” single-pane regular-glare vertical front glass
    – Hardware (Slide Vieler type 510).
  • Stainless steel interior.
  • Interior trim to match interior.
  • Stainless steel flat bottom merchandising deck.
  • LED dual top lighting.
  • Rear electrical raceway.
  • Gravity coil refrigeration.
  • Serpentine coil assist.
  • Solar digital thermometer.
  • Available lengths: 4’, 6’, 8’, 10’, and 12’.
  • Alternate toekick height 13-15/16”H with an overall height of 48-1/2”H
  • Flat front profile.
  • Bullet Leg base with adjustable height toekick.
  • Exterior standard grade laminate or stainless steel finish.
  • Painted outside back.
  • Stainless steel base trim.
  • Cart bumper (1” or 2”).
  • Clear rear load doors.
  • Price tag molding.
  • Product stops.
  • Scale stand with dedicated circuit for ISO receptacle & optional pull wire(s).
  • Rear (flip up or fixed) work boards (Type: poly, SS, solid surface).
  • Paper cutters (Serrated or non-serrated).
  • Front electrical raceway.
  • ISO outlet/CON outlets or CAT5.
  • Solid interior stainless steel, solid interior mirror polish stainless steel, thermal glass divider or glass ends.


Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
