Technical Reference Sheet

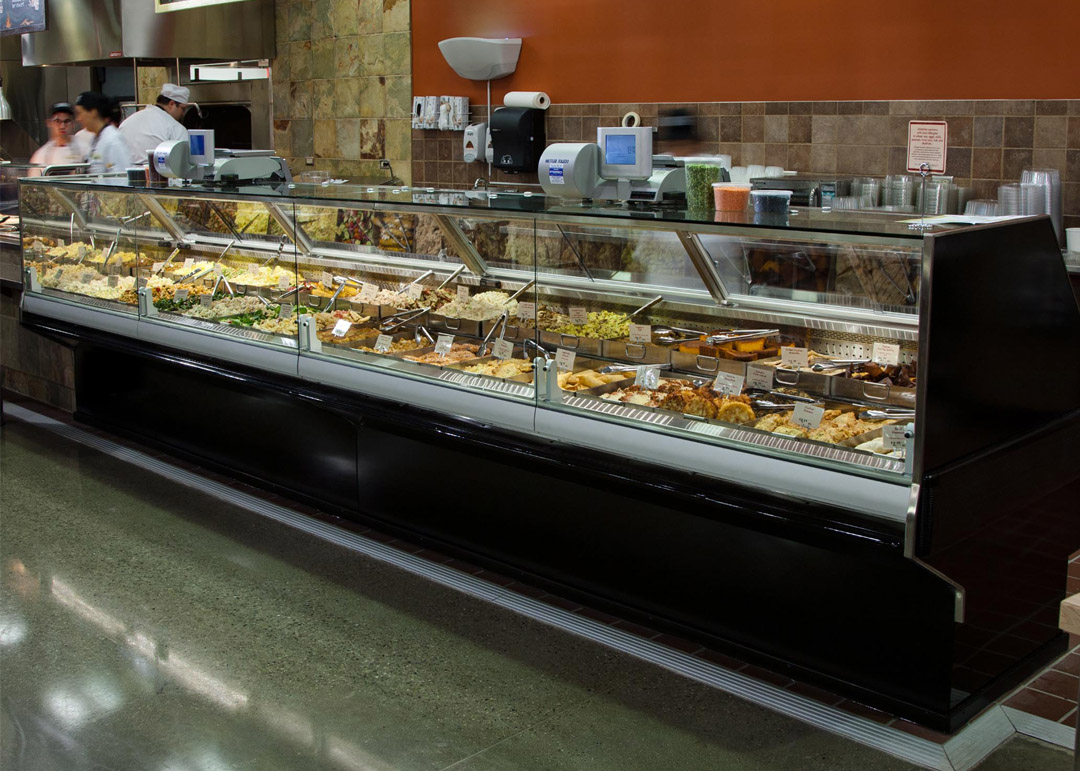

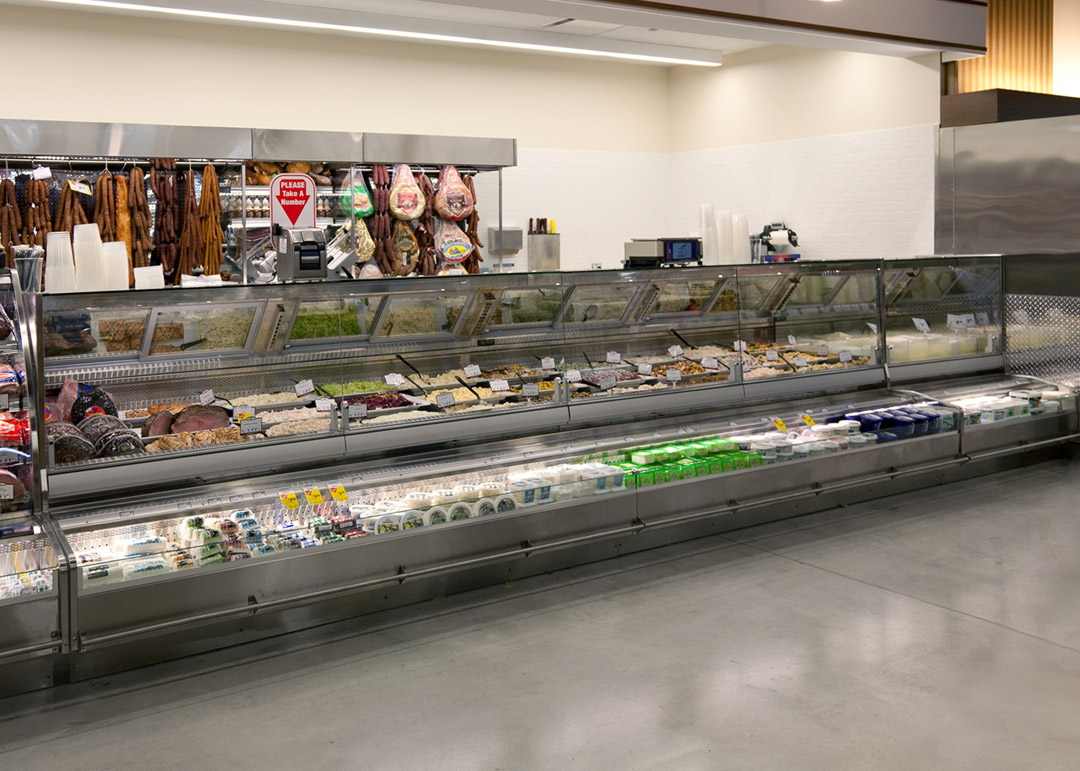

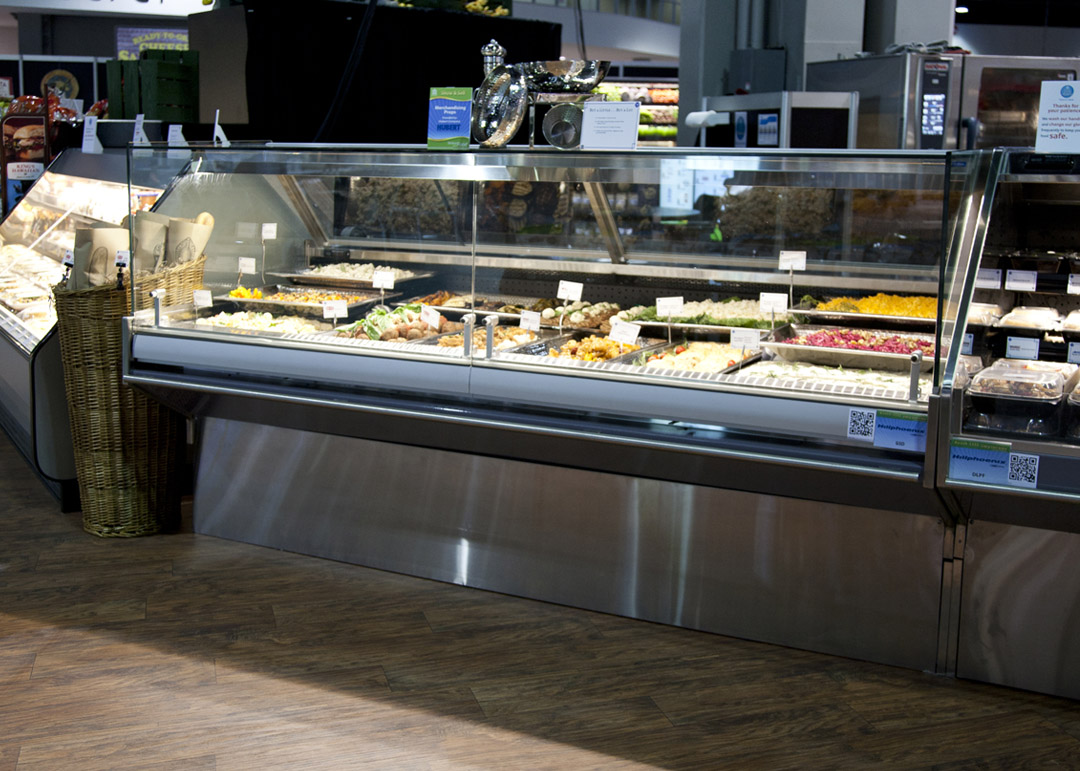

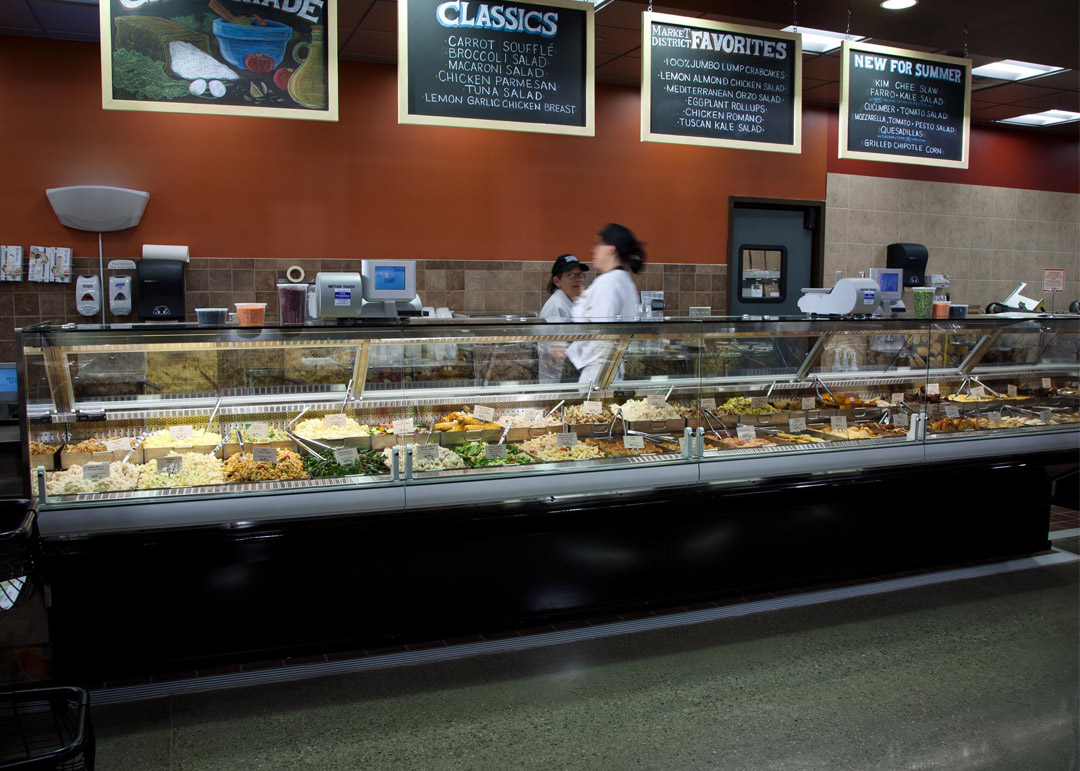

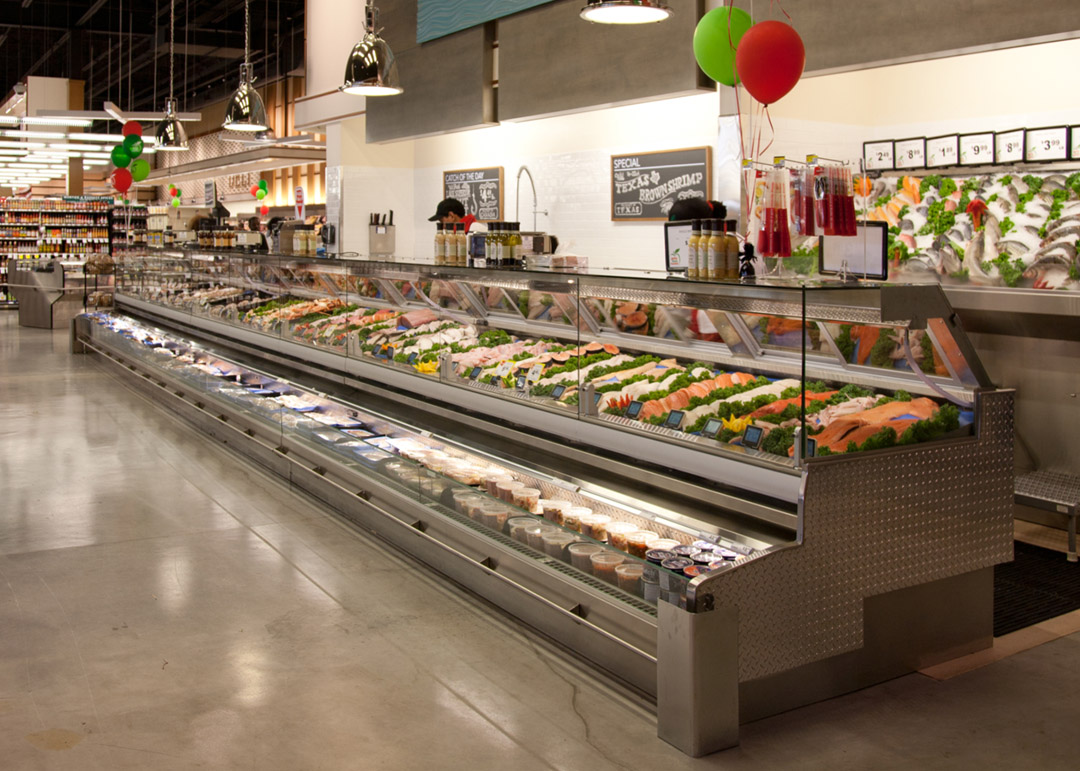

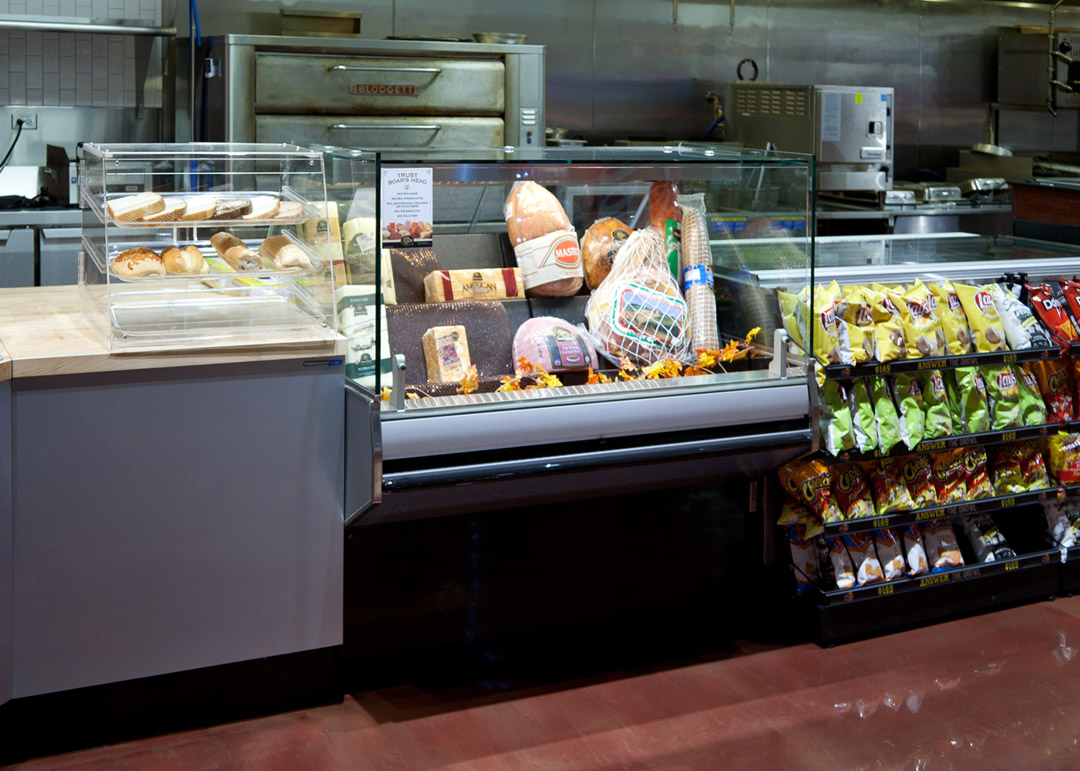

Hillphoenix GSD-R Single-Deck, Service, Refrigerated Display. Available in various lengths with vertical slide glass hardware. Front profile lines up with the GMDH, GMD-R, GMD-RGC and GMD-RG as well as cases with the option for the SMD or SSD profiles.
- 50-3/8”H & 42”D.
- Sled runner base construction.
- 60 degree dieboard.
- Painted metal exterior.
- 15-15/16”H base painted metal to match exterior.
- Stainless steel exterior trim.
- 3/8” glass case top.
- Stainless steel outside back and rear work ledge.
- Removable, clear plexiglas rear load doors with rear mounted hangers for storage.
- 1/4” single-pane, regular-glare vertical swing front glass.
- Black painted metal interior.
- LED top lighting.
- Rear electrical raceway.
- Energy efficient fans.
- Remote DX refrigeration package.
Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
