Self-Contained Glass Door Reach-In

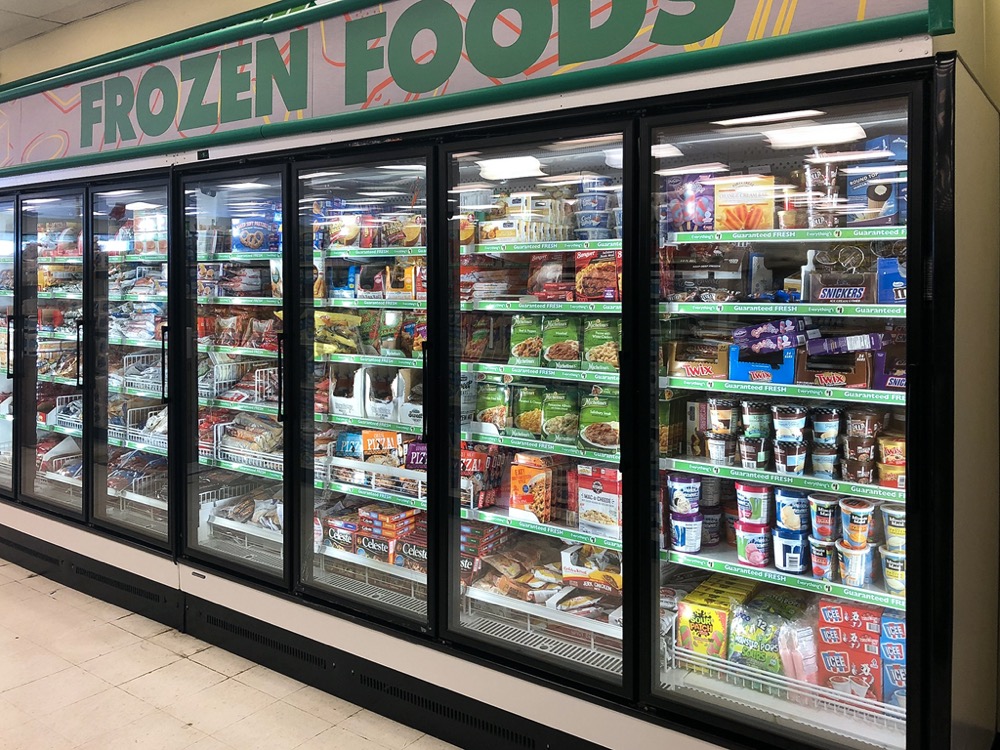

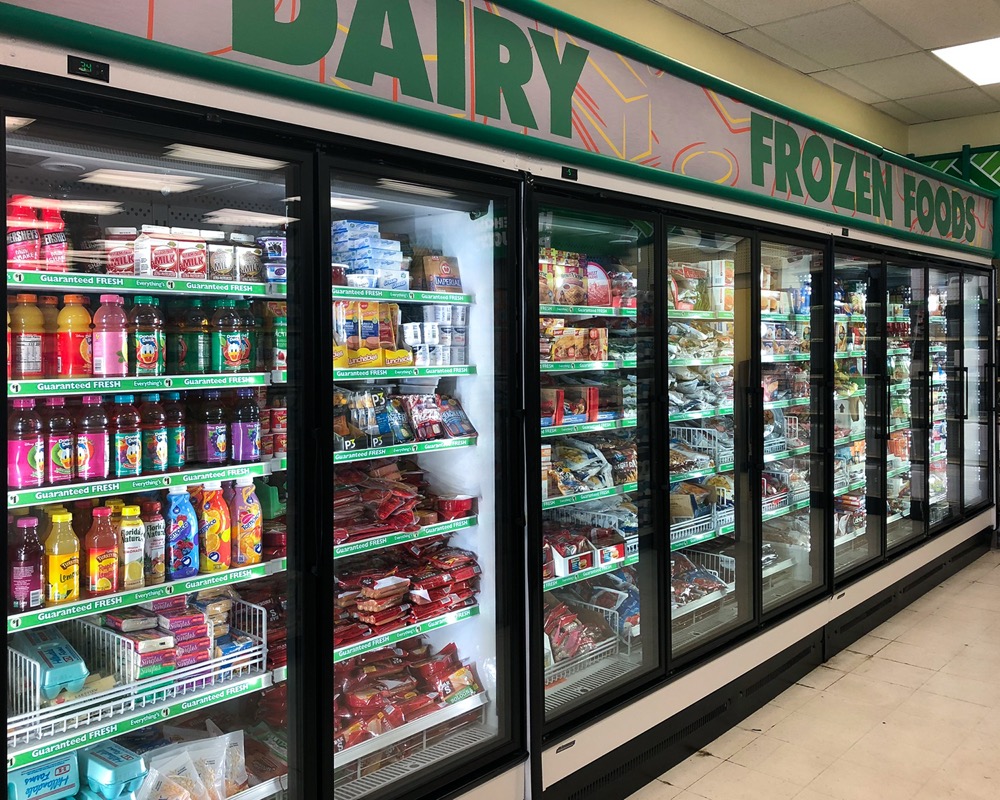

Hillphoenix JNRZHSA (Low-Temperature) and JNRBHSA (Medium-Temperature) CLARITY® Glass Door, Reach-In, Display Case Merchandisers for beverage, produce, dairy, deli, meat, seafood, frozen food and ice cream. Best used for applications that need to fit through an 80″ door and need to be self-contained. Several door styles, finish colors and handles available.

Base Model Features

Bottom-located refrigeration components facilitate serviceability and allow for full top shelf merchandising.
Modular interior component design allows easy access to the coil, fans and drain for ease of maintenance.
Proprietary Synerg-E® technology with NRGcoil™ and energy efficient fan motors ensure uniform case performance and lower average product temperatures with optimum energy efficiency.
Low temp and medium temp cases line up seamlessly for consistency in store design.
LED lighting for energy efficiency and a stunning merchandise display.
22” shelves for maximum display capacity.
63-3/4” front facings with no planogram restrictions.
Removable castors for easy merchandiser unloading, movement and installation.

Available Options

2, 3, 4 & 5 Door with 30” standard swing doors.
Variety of door rail profiles, finishes and handles.
Low temp doors – Anthony® Infinity 90, ELM D, ELMH.
Medium Temp doors – Anthony Infinity 90 & ELM D.
For a wall of infinity edge glass choose the Infinity 90 door option.
Modbus controller for ease of use.
Polymer or metal end trim.
Motion sensors for additional energy savings.
Cases can ship with the condensing unit field installed: –
- Field installed condensing units (JNRZHSA, JNRZHSA) ship with minimal assembly required and incorporate a special base frame option allowing it to fit through an 80” door. And a loading dock is not required because the design incorporates a special low base on wheels and a condensing unit that is installed on site

JNRZHSA

JNRBHSA

Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
