OHMA-NRG

Multi-Deck Self Contained Merchandiser

Hillphoenix OHMA-NRG Multi-Deck, Self-Contained Merchandiser for meat. Case is available in various heights, front options and end configurations. Use this case to create a lineup with other Origin series cases throughout your store. Additional multi-decks available in narrow and standard depth, shorter and taller heights and self-contained or remote.

Hillphoenix OHMA-NRG Multi-Deck, Self-Contained Merchandiser for meat. Case is available in various heights, front options and end configurations. Use this case to create a lineup with other Origin series cases throughout your store. Additional multi-decks available in narrow and standard depth, shorter and taller heights and self-contained or remote.

Less

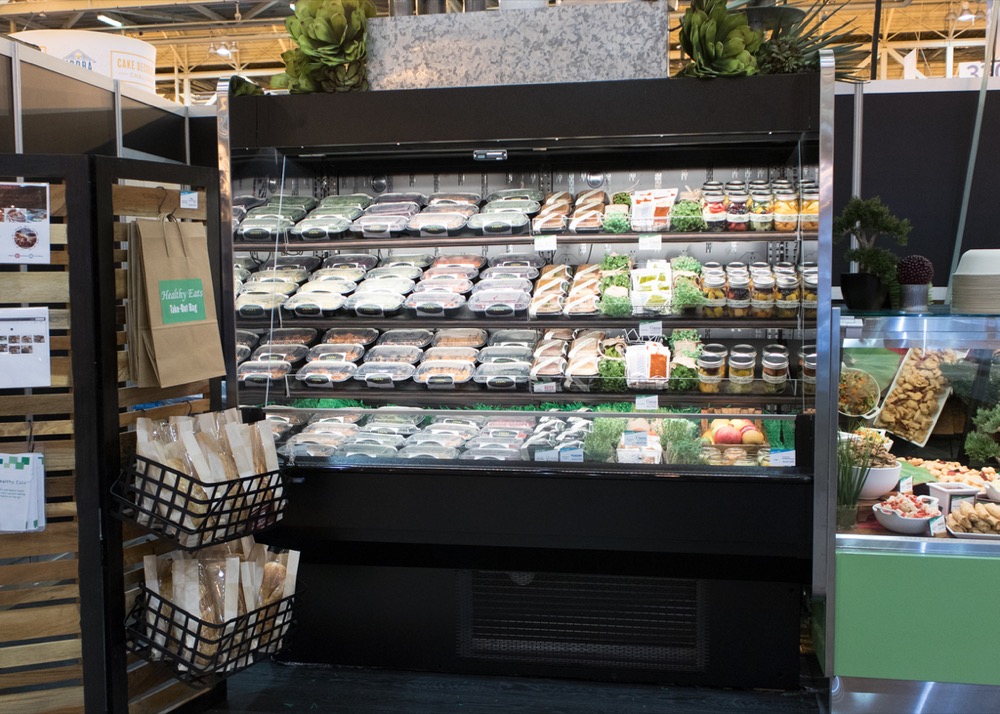

  • OHMA-NRG-display-case-Meals-IDDBA18-1706.jpg
  • OHMA-NRG-display-case-rendering-6-fresh-meat.jpg
  • OHMA-NRG-display-case-rendering-6-meal-kits.jpg

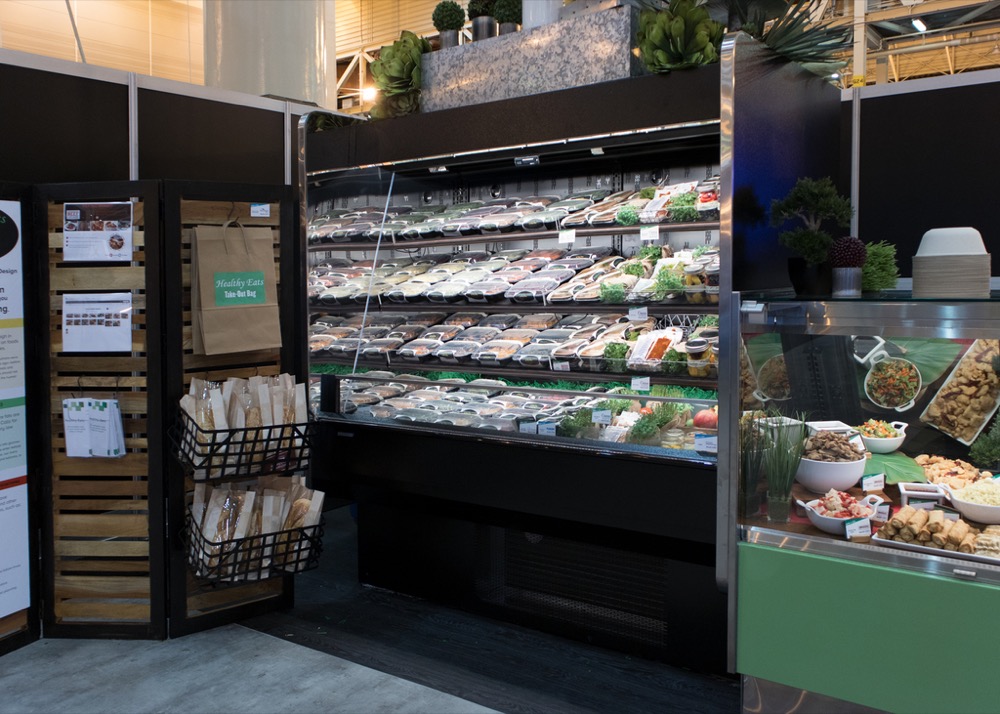

  • OHMA-NRG-display-cases-Meals-IDDBA18-1705.jpg

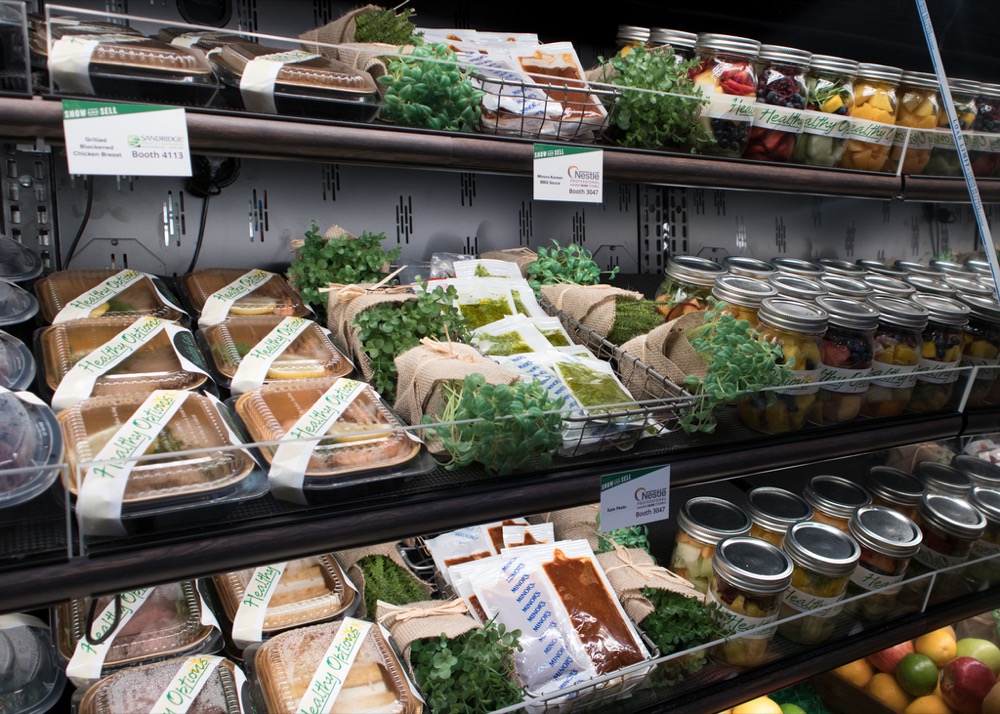

  • OHMA-NRG-display-case-Meals-Closeup-IDDBA18-1708.jpg

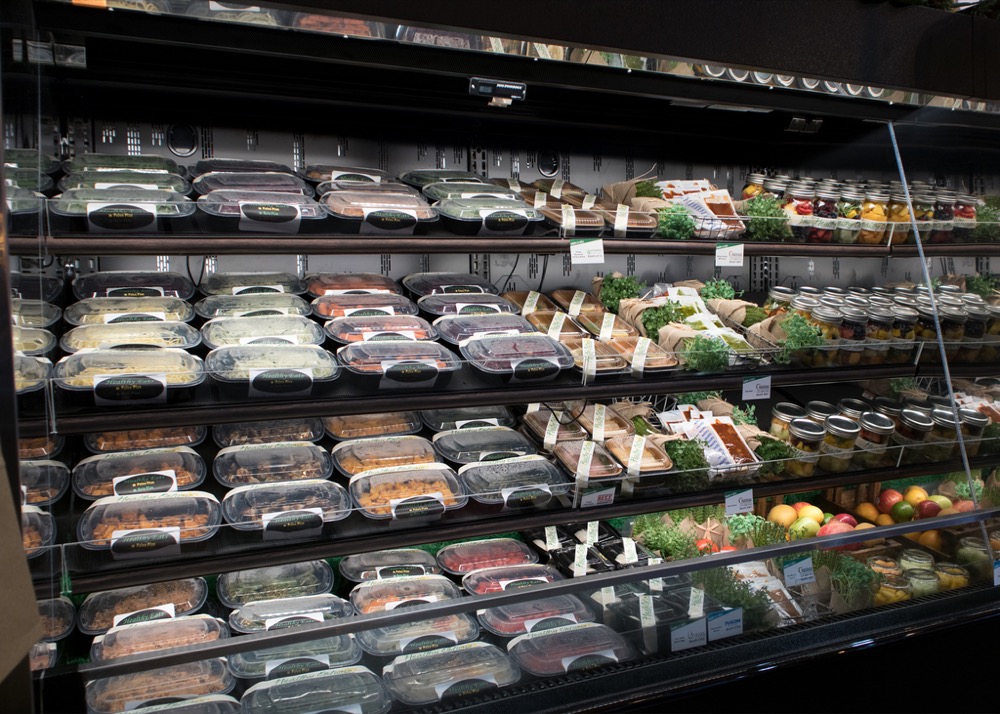

  • OHMA-NRG-display-case-Meals-Closeup-IDDBA18-1707.jpg
  • OHMA-NRG-display-case-revit-drawing-3.0.rfa
  • OHMA-NRG-display-case-CAD-drawing-view-5.0.dwg

Installation Manuals

  • OHMA-NRG-R3-display-case-i-o-manual-P111801H.pdf

Accessories

  • Standard-Bumper-Color-Chart-Brochure.pdf
  • Standard-Paint-Color-Chart-Brochure-082823-v2.pdf
  • Wire-Rack-Brochure.pdf
  • Display-Case-Shelves-Brochure-0823.8.pdf

Cross Section

  • OHMA-NRG-product-page-profile-graphic-v2.jpg

Sales Literature

  • OHMA-NRG-meal-kit-display-case-sales-sheet.pdf
  • OHMA-NRG-meat-display-case-sales-sheet.pdf

Technical Reference

  • OHMA-NRG-display-case-tech-reference-sheet-5.1.pdf

Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.

Multi-Deck Self Contained Merchandiser

Hillphoenix OHMA-NRG Multi-Deck, Self-Contained Merchandiser for meat. Case is available in various heights, front options and end configurations. Use this case to create a lineup with other Origin series cases throughout your store. Additional multi-decks available in narrow and standard depth, shorter and taller heights and self-contained or remote.

Hillphoenix OHMA-NRG Multi-Deck, Self-Contained Merchandiser for meat. Case is available in various heights, front options and end configurations. Use this case to create a lineup with other Origin series cases throughout your store. Additional multi-decks available in narrow and standard depth, shorter and taller heights and self-contained or remote.

Less

Features & Benefits

  • Bottom mounted condensing unit provides lower overall profile for clearer line of sight throughout store department. Condensing unit with removable condenser fan shroud and motor assemblies installed on slide out tray facilitates ease of service.
  • Proprietary Synerg-E® technology with NRGcoil™ and energy efficient fan motors ensure uniform case performance and lower average product temperatures with optimum energy efficiency.
  • Bottom-mounted copper coil and lift-up fan plenum with easily-removable fan basket and motor assembly for ease of maintenance.
  • Electronic case controller manages case performance for consistent temperature and product integrity.
  • Innovative Clearvoyant® LED lighting enhances visual impact of product driving consumer purchase intent.
  • Seamless tank liner provides positive drain runoff and enhanced sanitation.
  • Removable caster’s for easy merchandiser unloading and movement during installation.

Available Options

  • Available in 6’case lengths
  • 33” flat front with 6” thermopane glass or 33” Origin2 front with 6” thermopane glass.
  • Flat of curved cornice.
  • Square or solid ends.
  • Optional Mirror
  • (2) rows of standard output or (1) row of high output LED cornice lights.
  • Epoxy coated wire or plexiglas product stops available to fit your store aesthetics.
  • Polymer or metal end trim.

Attributes

  • Alternate Heights: OHM-NRG
  • Case Depth / Footprint: 43 1/4"
  • Case Height Standard: 79 1/2"
  • Case Length: 6'
  • Case Temp: Medium-Temp
  • Case Type: Multi-Deck, Self-Contained, Self-Service
  • Department: Meal Kit, Meat & Seafood, Prepared Foods
  • Door Type: -
  • Interior Depth: 32 1/4"
  • Interior Height: 46 7/8"
  • Other Models: Best used for Fresh Meat, Deli and prepared foods merchandising . A self-contained case with angled shelves and mirror it is designed for merchandising fresh proteins.
  • Product Type: Display Case
  • Refrigerated Volume: 7.46 CF / LF
  • Remote / Self-Contained: Self-Contained
  • Retail Types: Convenience Store, Dollar Discount, Drug Store, Mass Merchandise, Membership & Warehouse, Supermarket
