Medium-Temperature, Open Multi-Deck

ON5DMX SFC

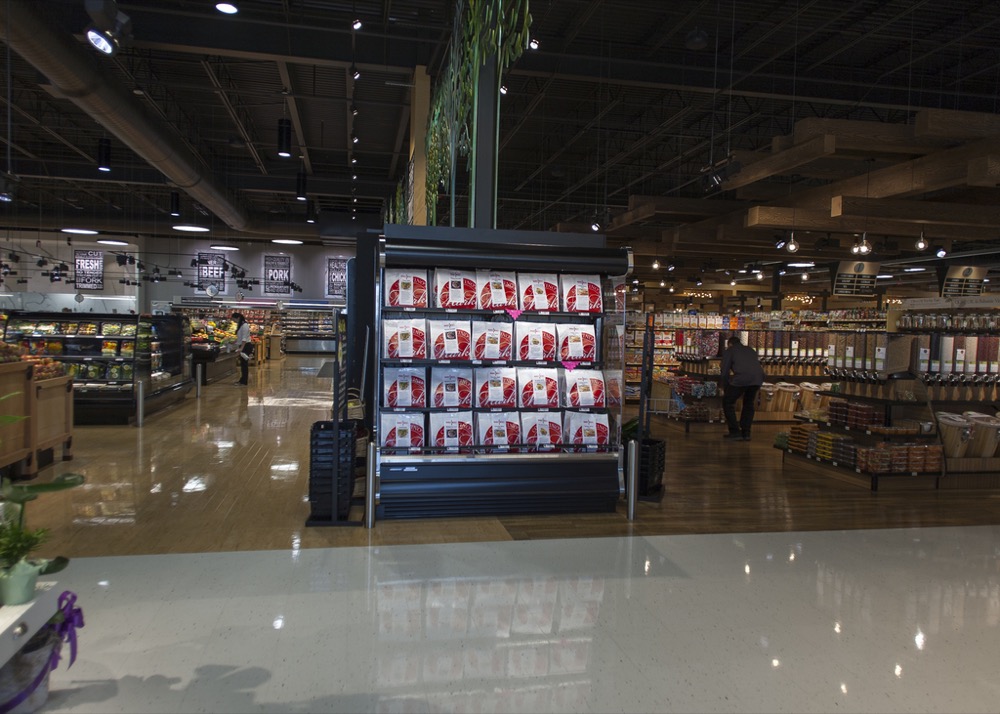

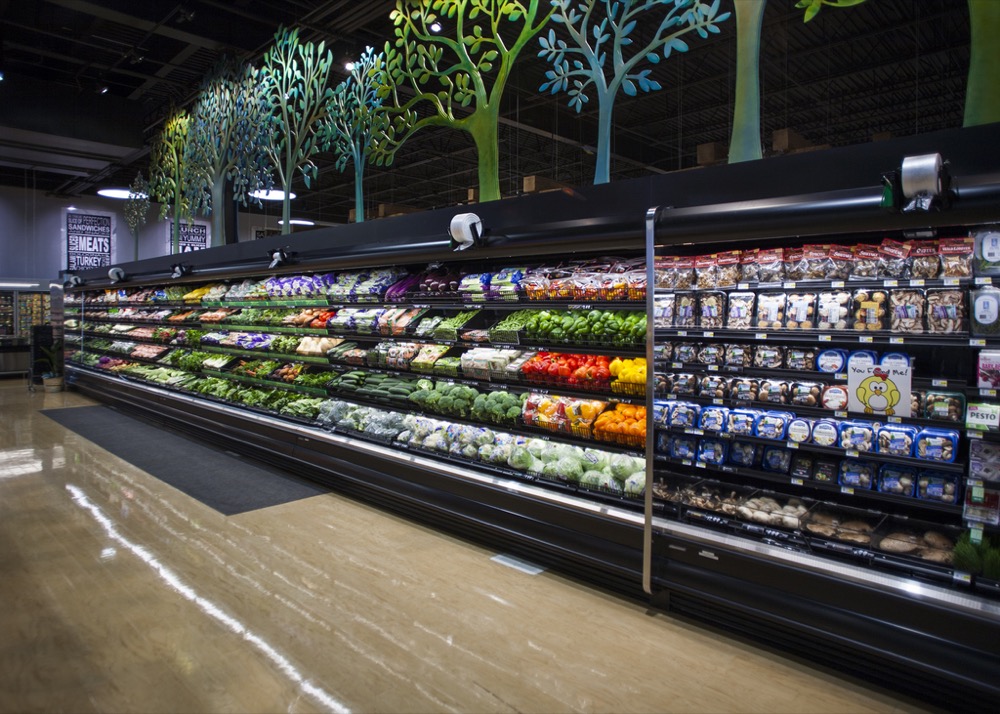

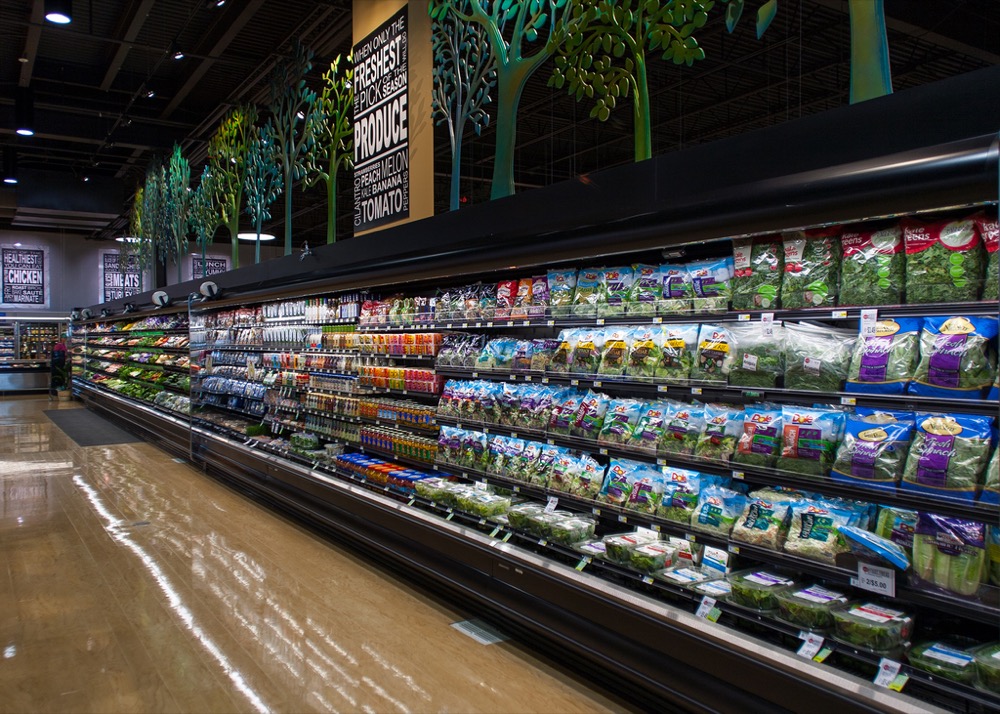

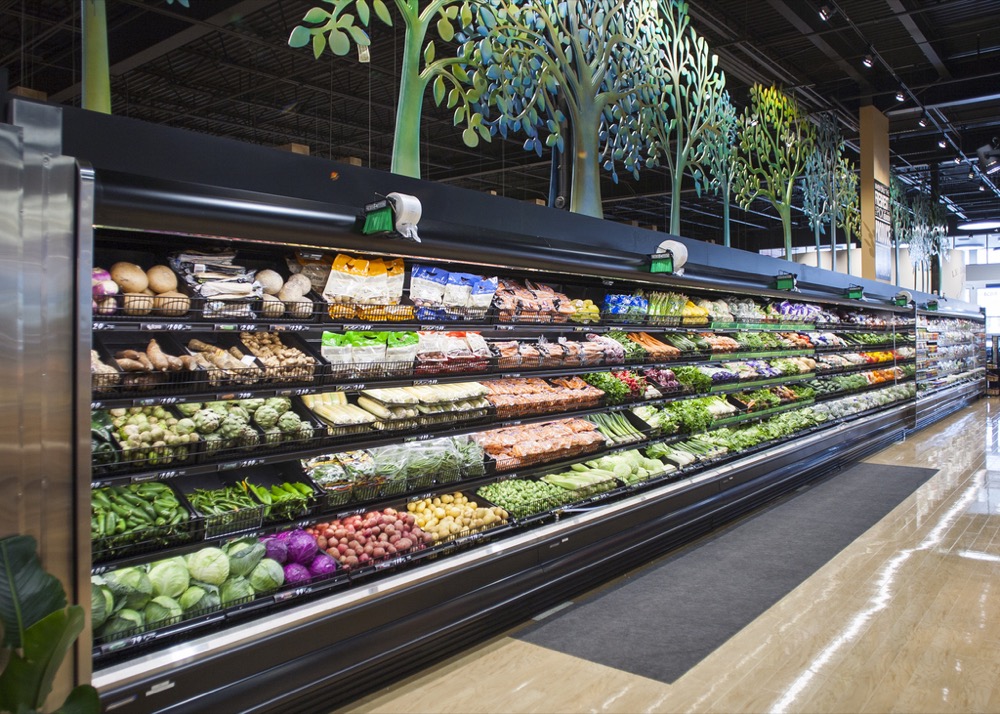

Hillphoenix ON5DMHX SFC High, Five-Shelf, Multi-Deck Merchandiser for small format stores. Case is available in various widths, heights, front options and end configurations. Use this case to create a lineup with other Origin series cases throughout your store. Additional multi-decks available in narrow and standard depth, shorter and taller heights and self-contained or remote.

Fast Facts

Unique design ensures uniform case performance and lower average product temperatures with optimum energy efficiency.
All-steel construction for increased life span and structural integrity.
Seamless tank liner provides positive drain runoff and enhanced sanitation.
Bottom-mounted, copper coil and modular interior components allow easy access to the coil, fans and drain for ease of maintenance.

*Product images may include additional options.

Paint Color Chart

Display cases are offered in various colors. Use the paint color chart below to view the available colors.

Click image to download

Paint colors and textures on screen may vary when compared to physical color samples.

ON5DMX SFC

Base Model Features

Available lengths – 4’, 6’, 8’ & 12’.
5” baseframe.
Custom color, 18”, flat front panel and sill cap.
1” black bumper.
Black PVC kick plates.
Square end panels with black PVC trim.
Black interior with black metal deck pans.
Black, flat bottom wire rack with 3” lip and black PVC PTM.
(4) rows 20”x48”, 2-position, matte black, solid shelves w/CC Alum PTM.
(2) rows Clearvoyant LED canopy lights: 3000K standard output lights.
Solar digital thermometer.
Refrigeration:
– R448A DX refrigerant.
– TXV balance port sweat.
– Heat exchanger.
– Refrigeration lines piped to the bottom.
– Hand valve.
– EBM high-efficiency fan motors.
– Time-off defrost.
Conforms to UL Standard 471, NSF Standard 7 and CAN/CSA C22.2.

Available Options

Brushed stainless front end trim (S3).
21” front with nose light (3000K STD LED).
NNight curtain, bracket mount, non-cassette magnet handle.
White case interior.
Heavy-duty front baffle & deck pans.
Heavy-duty 22”x48”, 2-position shelving.
Lighted shelves with 3000K standard Clearvoyant LED lights.
Slotted tag molding.
3.5” plexi product stops.
Top wiring.
R407A refrigerant.
Top piping.
Temperature control TStat.
Temperature probe.
Self-contained.

Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications are subject to change without notice. Certified to UL 471 and ANSI/NSF standard 7.
