Self-Service Multi-Deck Hot

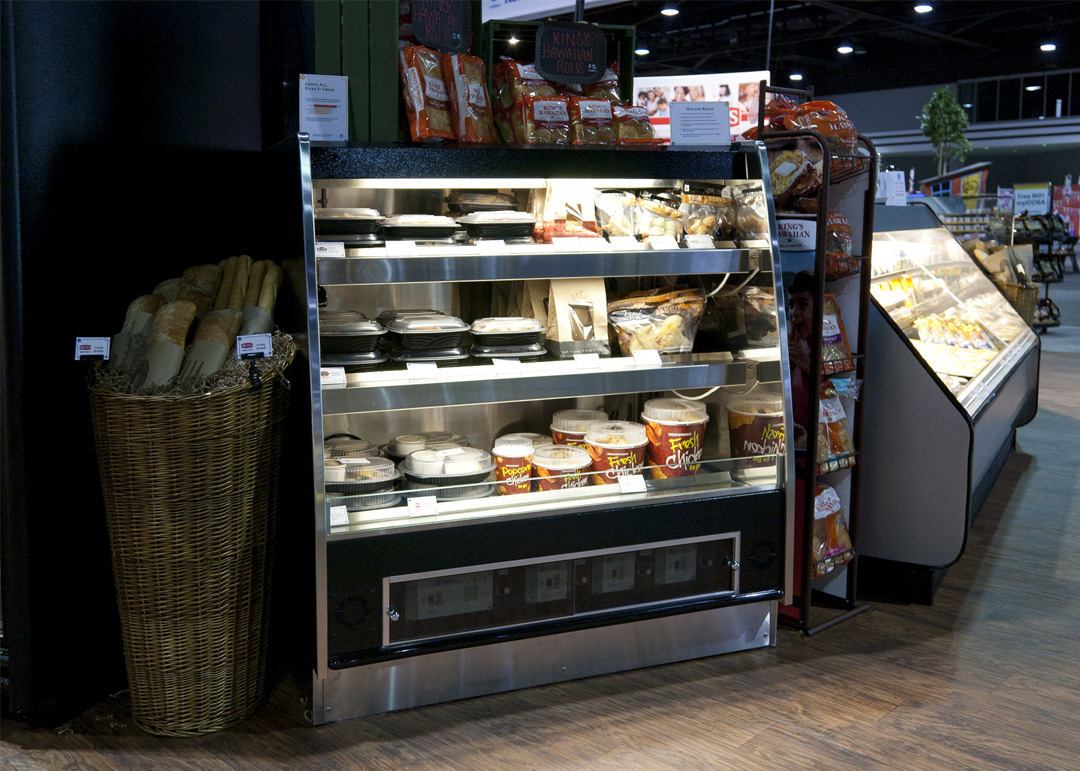

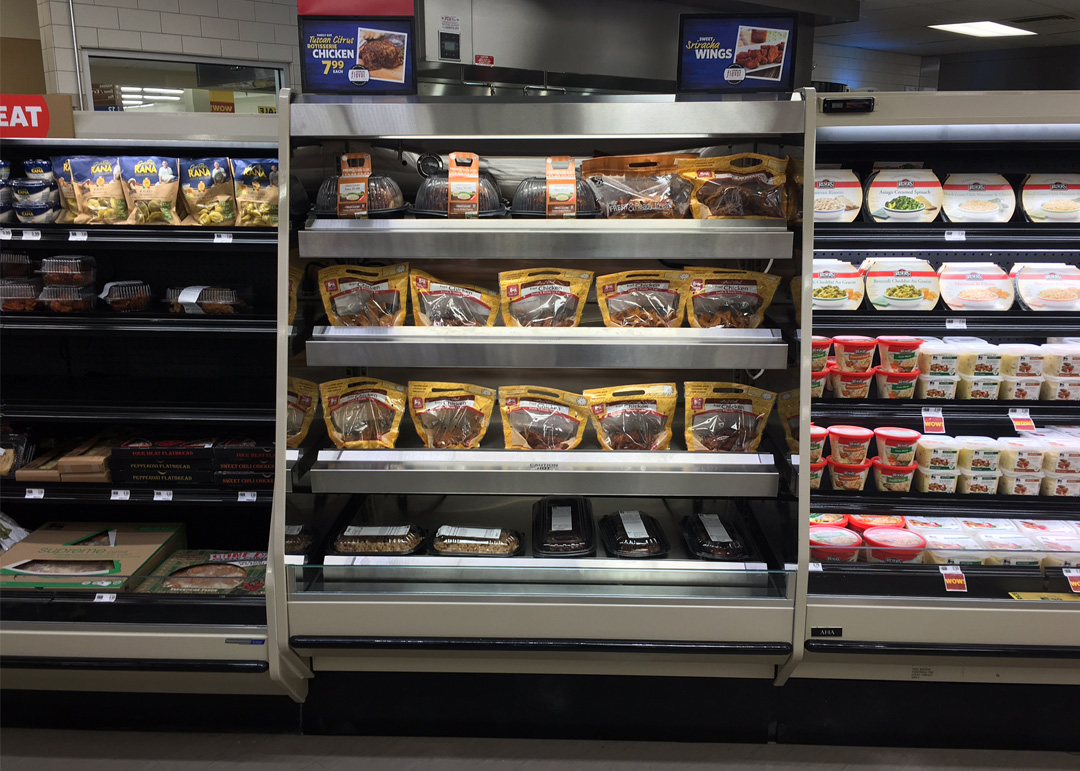

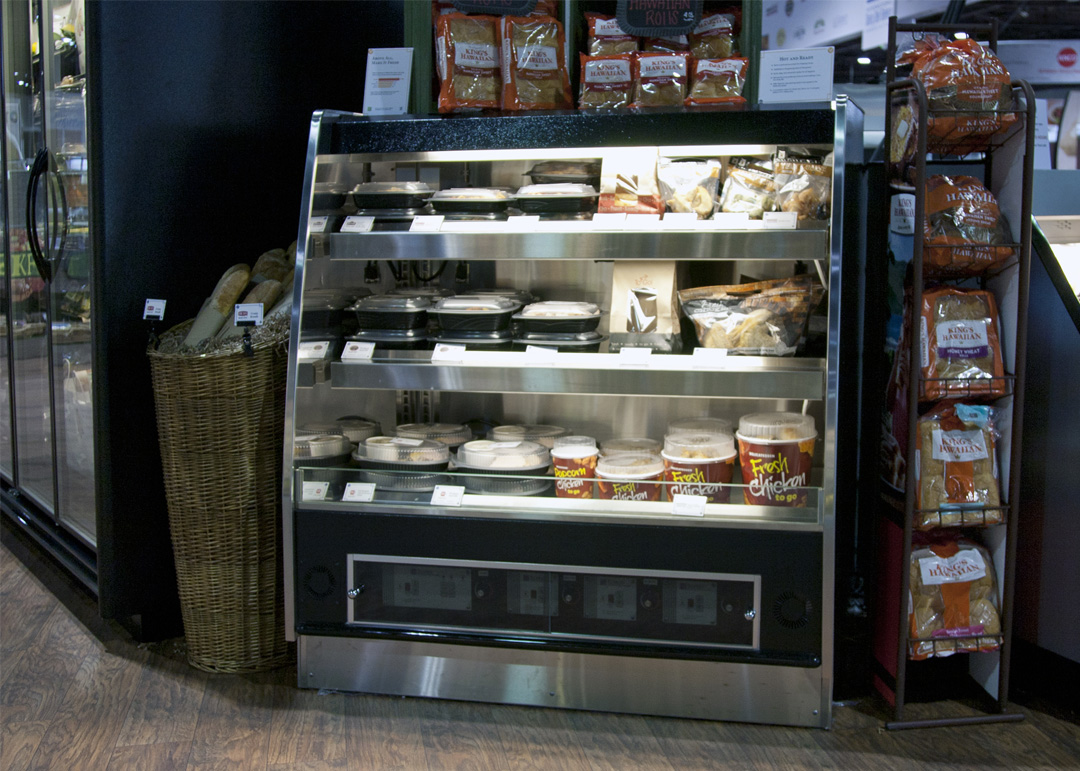

Hillphoenix PFH-C Multi-Deck, Self-Service, Hot Food Display. Designed for maintaining hot food temperatures with dry-heat, long-wave, radiant heat system combined with convection heating. Available with up to two rows of heated shelves and in several case lengths.



Features and Benefits

  • Sled runner base construction.
  • Straight front profile to accommodate controls.
  • Standard 54”H with 6-5/16” base height.
  • Standard 24” case top depth.
  • Painted metal exterior.
  • Stainless steel exterior and base trim.
  • Stainless steel interior and case top.
  • Painted metal outside back.
  • 3-1/2” glass on die board top.
  • (2) rows of 20” heated stainless steel shelves.
  • Flat bottom heated merchandising deck.
  • T8 top light.
  • Low wattage, long wave radiant-heat system.
  • Individual controls for each shelf and overhead heat mounted on case front behind sliding doors.
  • Electronically-controlled zone heating.
  • Rear electrical raceway.



Available Options

  • Available lengths: 4’ and 6’.
  • Alternate height: 51”H.
  • 45° front die board profile (requires rear controls).
  • Alternate toe kick height includes: 7-13/16”H with no change to the overall height.
  • Bullet leg base with adjustable height toe kick.
  • Painted metal base trim.
  • Cart bumper.
  • T8  undershelf lighting.Stainless steel exterior finish.
  • Solid surface or stone case top.
  • Rear controls.
  • Solid interior mirror-polish stainless steel, thermal glass divider or glass end panels.
  • Front electrical raceway.


PFH-C

Compare

Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
