PTD-RG

PTD-RG

Refrigerated Combo Service/Self-Service

Hillphoenix PTD-RG Combination Service, Gravity Coil Refrigerated Dome, and Self-Service, Refrigerated Display. Designed for beverage, deli, meat, and seafood applications. Featuring a flat glass dome profile with an option for curved glass.  Available in several case lengths. The front profile lines up with the PTD series, SD series, BMD series service cases, and the PT and PF self-service cases for a continuous department look.

Hillphoenix PTD-RG Combination Service, Gravity Coil Refrigerated Dome, and Self-Service, Refrigerated Display. Designed for beverage, deli, meat, and seafood applications. Featuring a flat glass dome profile with an option for curved glass.  Available in several case lengths. The front profile lines up with the PTD series, SD series, BMD series service cases, and the PT and PF self-service cases for a continuous department look.

Less

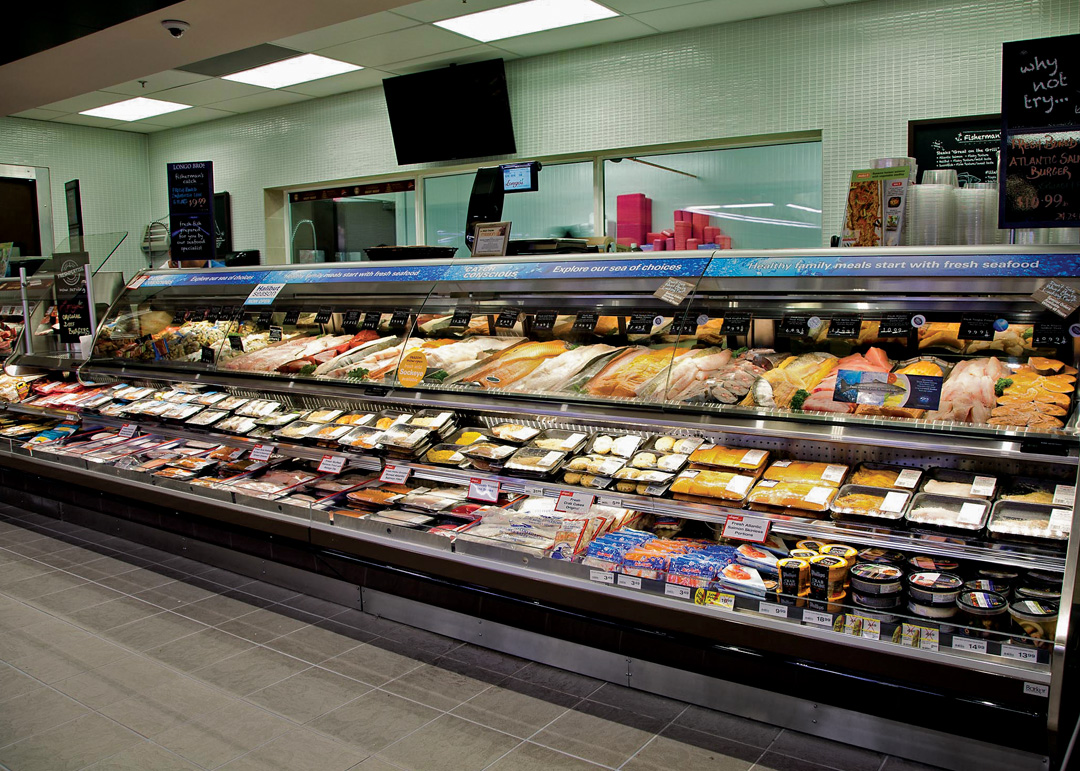

  • PTD-RG-display-case-photo-seafood-curved-glass-0510.jpg

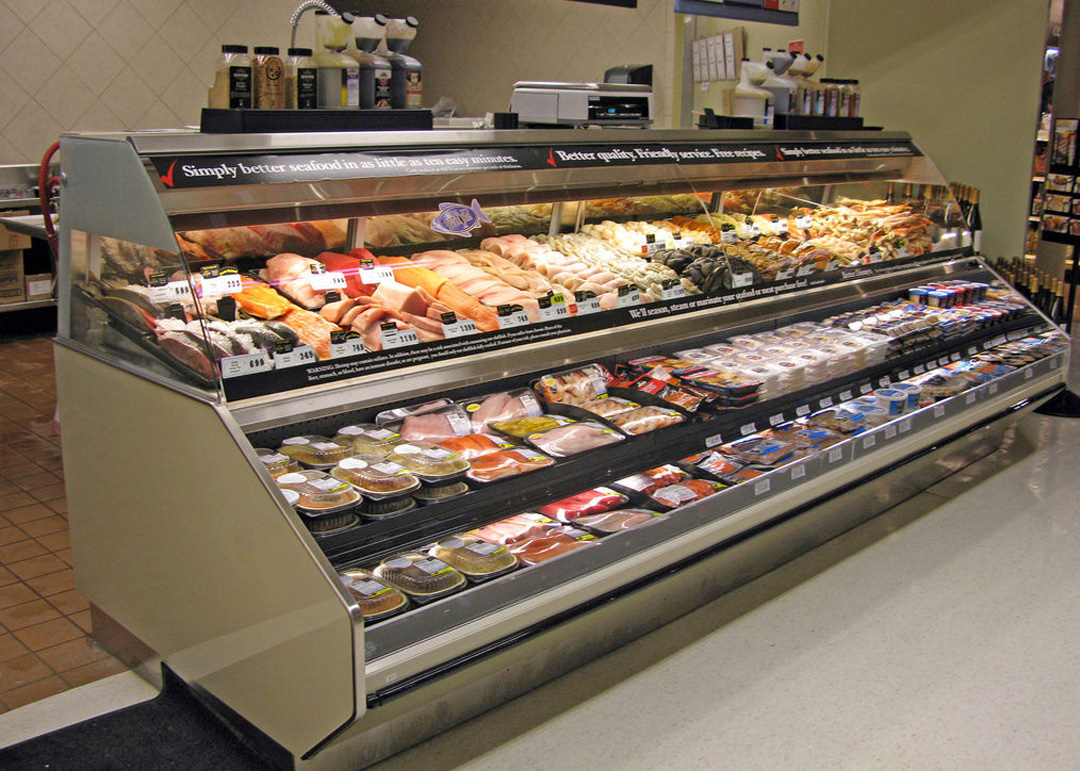

  • PTD-RG-display-case-photo-seafood-curved-glass-0010.jpg

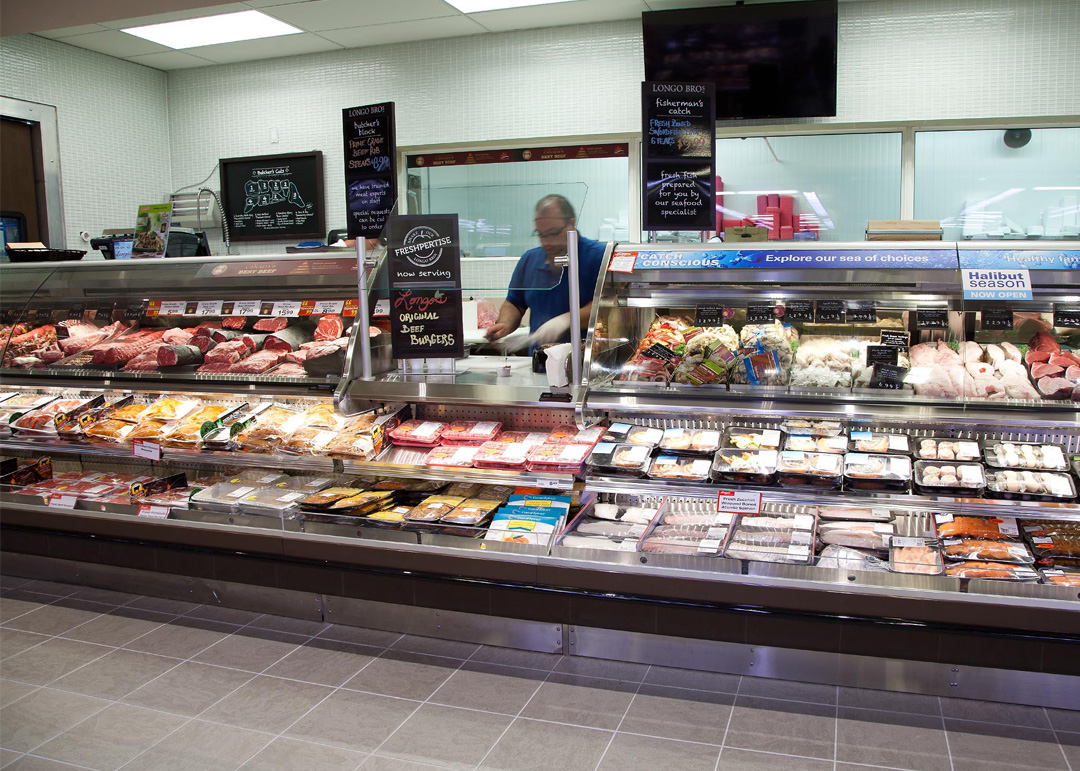

  • PTD-RG-display-case-photo-meat-seafood-curved-glass-0508.jpg

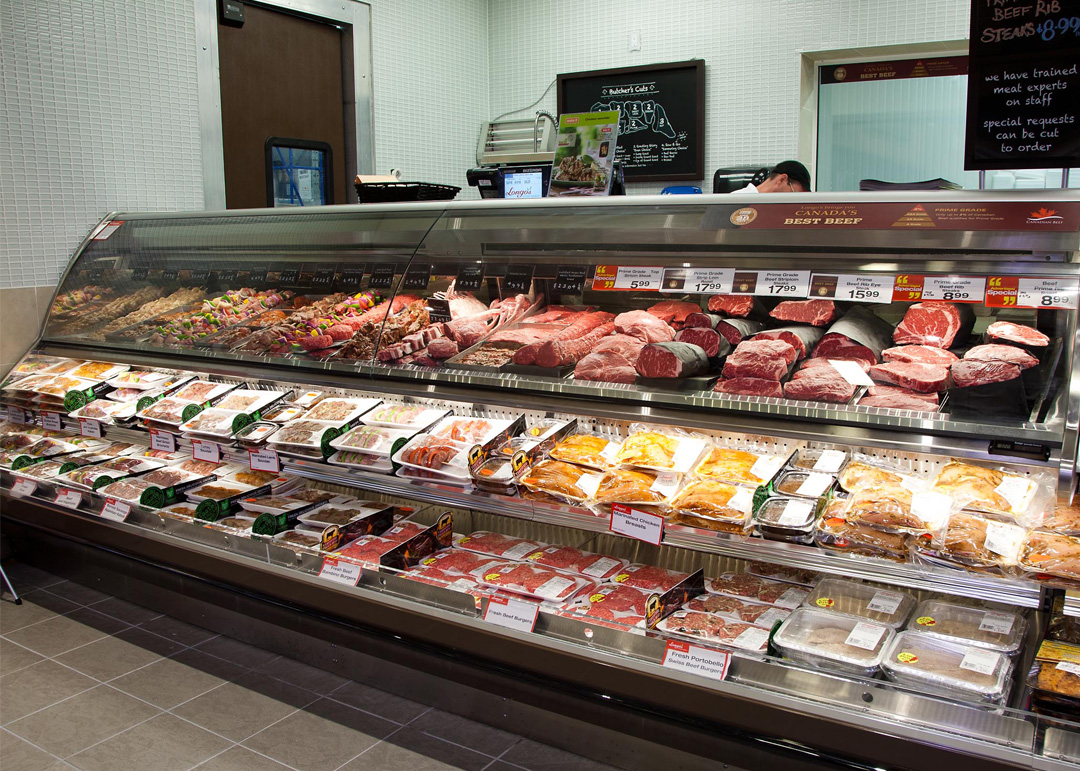

  • PTD-RG-display-case-photo-meat-meat-glass-0506.jpg

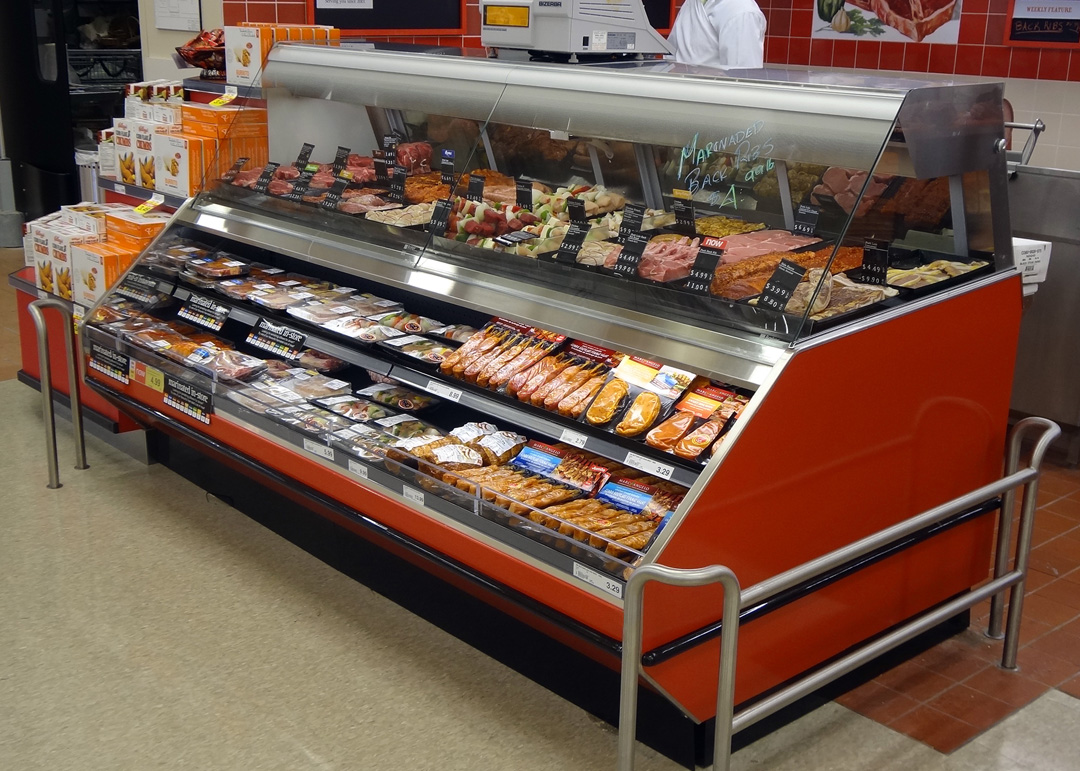

  • PTD-RG-display-case-photo-meat-flat-glass-DSC01123.jpg

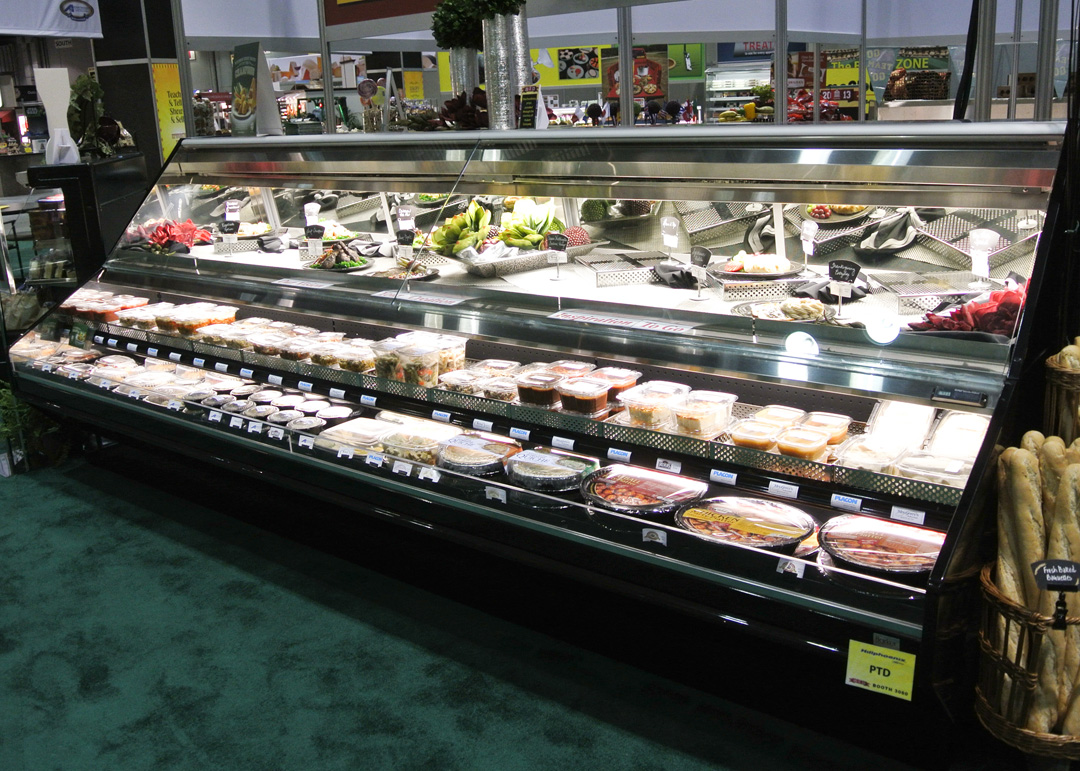

  • PTD-RG-display-case-photo-deli-flat-glass-2273.jpg

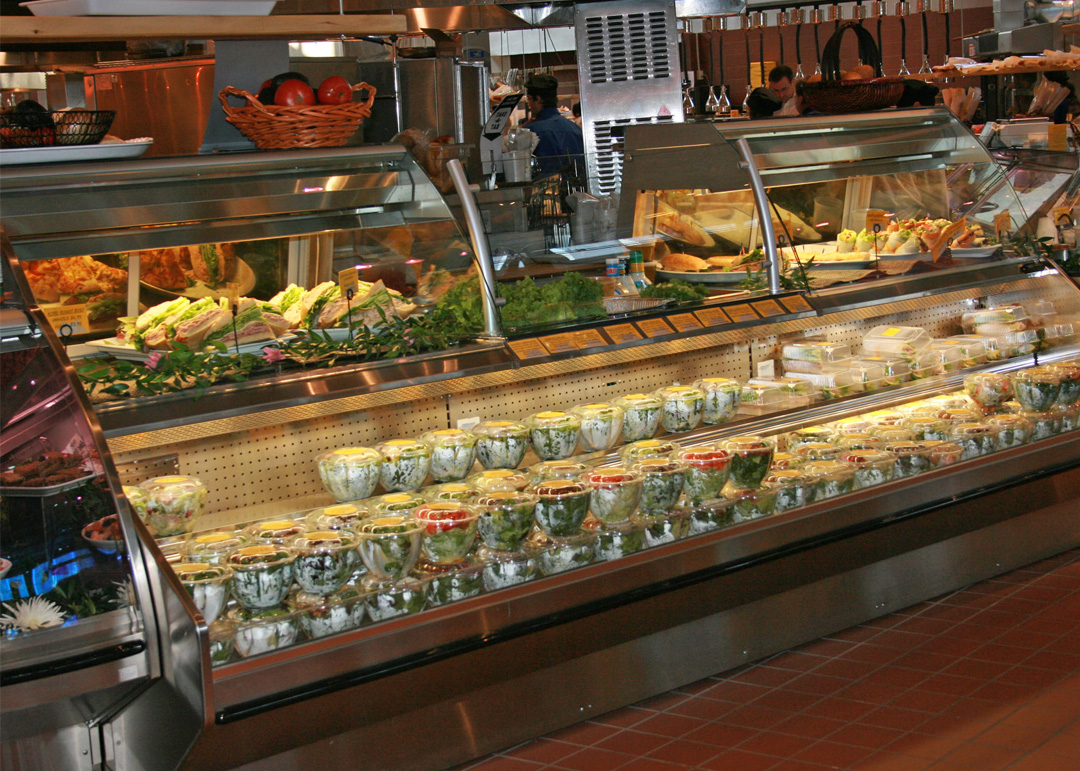

  • PTD-RG-display-case-photo-deli-curved-glass-0001.jpg

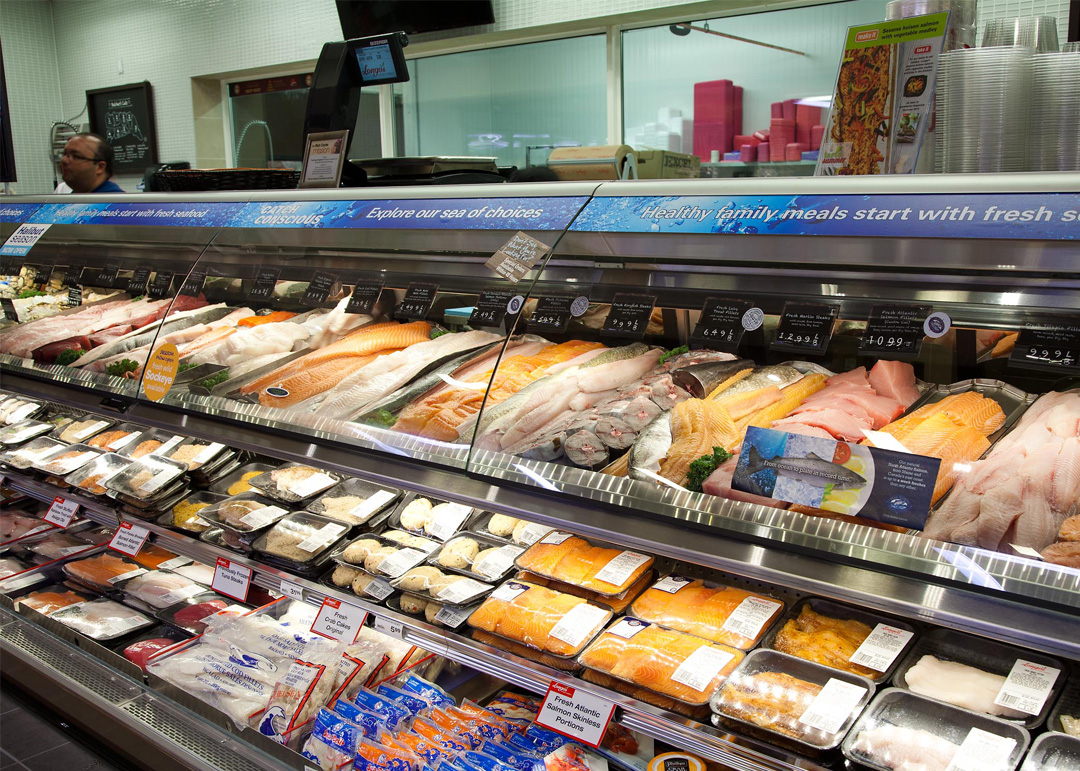

  • PTD-RG-display-case-photo-seafood-curved-glass-0512.jpg
  • PTD-RG-display-case-CAD-drawing.dwg

Installation Manuals

  • PTD-RG-display-case-manual-rv2.pdf
  • Seafood-series-sales-sheet.pdf

Accessories

  • Standard-Bumper-Color-Chart-Brochure.pdf
  • Standard-Paint-Color-Chart-Brochure-082823-v2.pdf

Cross Section

  • PTD-RG-page-profile-rv1.jpg
  • PTD-RG-page-profile-CUBE-v2.jpg

Sales Literature

  • PTD-RG-display-case-sales-sheet-v1.pdf
  • Combo-cases-series-sales-sheet.pdf
  • Meat-cases-series-sales-sheet.pdf
  • Vertical-Glass-Cases-v1.pdf

Technical Reference

  • PTD-RG-display-case-tech-reference-sheet-rv4.pdf

Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.



Refrigerated Combo Service/Self-Service

Hillphoenix PTD-RG Combination Service, Gravity Coil Refrigerated Dome, and Self-Service, Refrigerated Display. Designed for beverage, deli, meat, and seafood applications. Featuring a flat glass dome profile with an option for curved glass.  Available in several case lengths. The front profile lines up with the PTD series, SD series, BMD series service cases, and the PT and PF self-service cases for a continuous department look.

Hillphoenix PTD-RG Combination Service, Gravity Coil Refrigerated Dome, and Self-Service, Refrigerated Display. Designed for beverage, deli, meat, and seafood applications. Featuring a flat glass dome profile with an option for curved glass.  Available in several case lengths. The front profile lines up with the PTD series, SD series, BMD series service cases, and the PT and PF self-service cases for a continuous department look.

Less


Download OPEN FULL SCREEN
ADD TO DOWNLOAD LIST

Features & Benefits

Refrigerated Dome:

  • Dome height: 20-1/4” H.
  • Stainless steel outside back and dome top.
  • Reflective rear load doors with black frames.
  • Single-pane, regular glare flat glass with lift-up glass hardware.
  • Stainless steel interior and trim.
  • Stainless steel flat bottom merchandising deck.
  • Clearvoyant® LED top lighting.
  • Energy efficient fans.
  • Solar digital thermometer.
  • Remote DX gravity coil refrigeration package.



Refrigerated Base:

  • Sled runner base construction.
  • Overall case dimensions: 52-7/8” H & 51” D.
  • 6-5/16” H stainless steel toekick, front and sides.
  • 45-degree front dieboard.
  • Painted metal exterior.
  • Stainless steel base trim, front, sides, & rear.
  • Stainless steel exterior trim.
  • Stainless steel outside back.
  • Painted black metal interior and trim.
  • 3-1/2” H x ½” T polished straight dieboard plex.
  • (1) row 12" D adjustable angled painted metal shelf.
  • Black painted metal flat bottom merchandising deck with 2” metal product stop.
  • 16-3/16” D open dry rear storage.
  • Clearvoyant® LED top lighting.
  • Energy efficient fans.
  • Solar digital thermometer.
  • Rear electrical raceway location.
  • Remote DX refrigeration package.

Available Options

  • Available lengths: 4’, 6’, 8’, 10’, and 12’.
  • Alternate 7-13/16” H toekick height (no change in overall height).
  • Alternate case depth:  55” D with 16” D adjustable shelf in base.
  • Alternate refrigerated base height: 38” with (1) 12” D & (1) 16” D shelves.
  • Flat front profile.
  • Bullet leg base with adjustable height toekick.
  • Pedestal base or false pedestal base.
  • Exterior finishes: exterior grade laminate or stainless steel.
  • Interior finishes: painted white or stainless steel.
  • Solid surface, poly, or stone case top.
  • Non-glare front glass.
  • Front glass masking.
  • Single-pane, regular glare curved glass with lift-up glass hardware.
  • Integrated case top scale stand or adjustable scale stand.
  • Rear flip-up work boards (fixed or flip-up) in poly, stainless steel, or solid surface.
  • Paper cutters.
  • ISO outlet/CON outlets (specify vertical or horizontal placement on rear).
  • Ice pans in dome (required for seafood application).
  • Clear rear load doors on dome.
  • Gray rear load door frames on dome.
  • Fixed 16” D shelf in lieu of 12” D shelf in refrigerated base.
  • Shelf options:  lighted, product stops, and price tag molding.
  • Econofrost night cover with or without cassette.
  • Sliding doors on dry lower storage.
  • Refrigerated lower storage with clear sliding doors.
  • Adjustable shelf in rear storage.
  • Solid or full-view end panels with mirror-polished, stainless steel interior.
  • Thermal divider.
  • Cart bumper mounted on the front panel of the case.
  • Cart bumper added to end panels.
  • Front electrical raceway.
  • Remote glycol or CO2 refrigeration packages.
  •

Attributes

  • Alternate Heights: -
  • Case Depth / Footprint: 51"
  • Case Height Standard: 54-7/8"
  • Case Length: 4’, 6’, 8’, 10', and 12'
  • Case Temp: Medium-Temp
  • Case Type: Multi-Deck, Rear-Load, Remote, Self-Service, Service
  • Department: Deli, Prepared Foods, Meat & Seafood
  • Door Type: -
  • Interior Depth: top: 21-11/16" bottom: 22-3/4"
  • Interior Height: top: 7-15/16" bottom: 13-5/8"
  • Other Models: Beverage, deli, meat, seafood. Also consider the PTD-RGC, PTD-GSD-R and SD-RG.
  • Product Type: Specialty Cases
  • Refrigerated Volume: -
  • Remote / Self-Contained: Remote
  • Retail Types: Food Service, Mass Merchandise, Membership & Warehouse, Supermarket
