QTM Multi-Deck Self-Service Refrigerated Display Case

QTM

Resources

Sales Literature

Technical Reference Sheet

Drawings

Installation Manuals

Accessories

CO2 R744 all natural refrigerant

Self-Service Multi-Deck

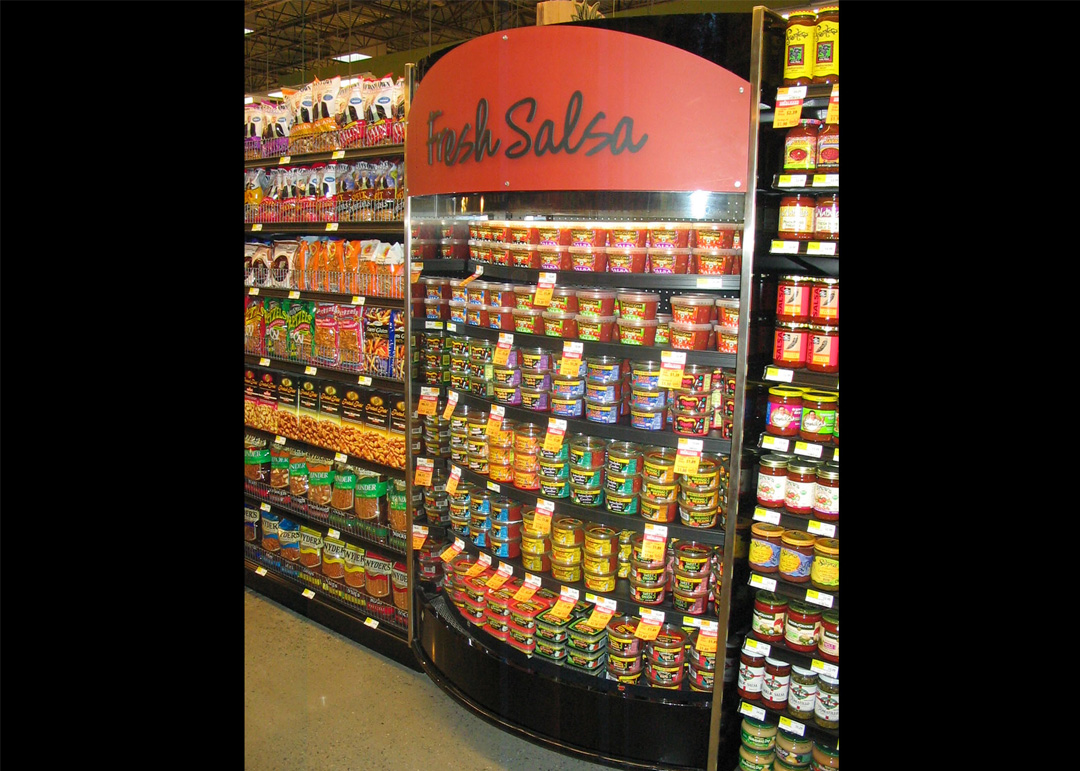

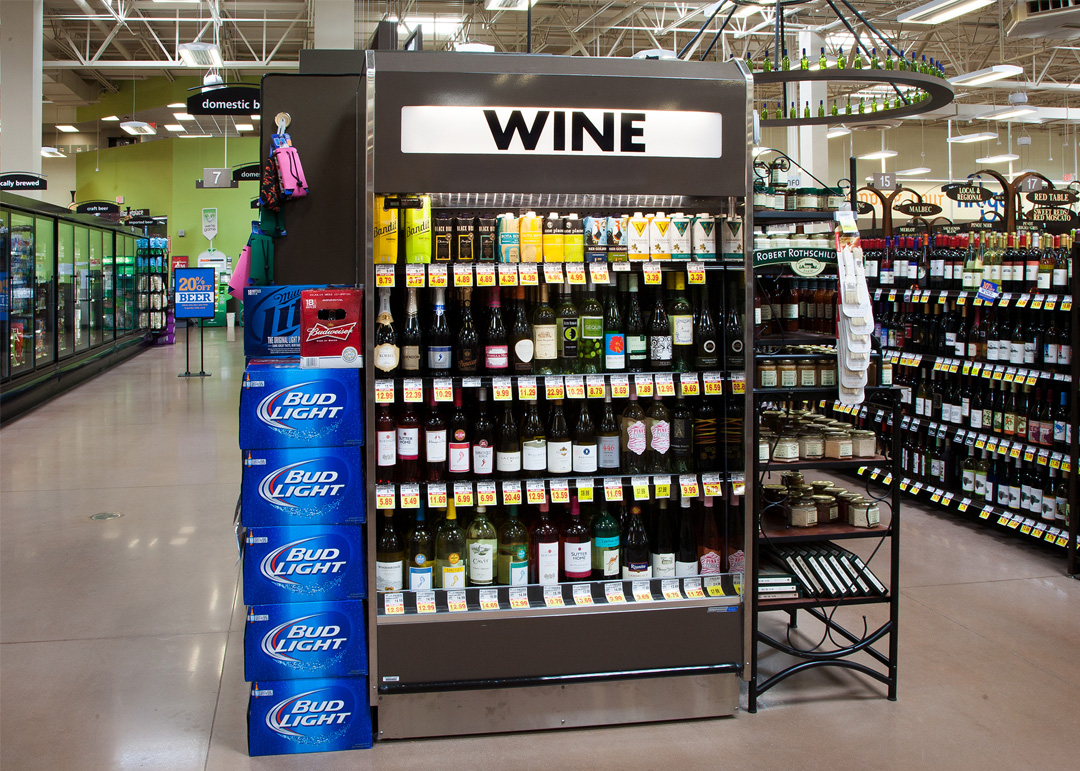

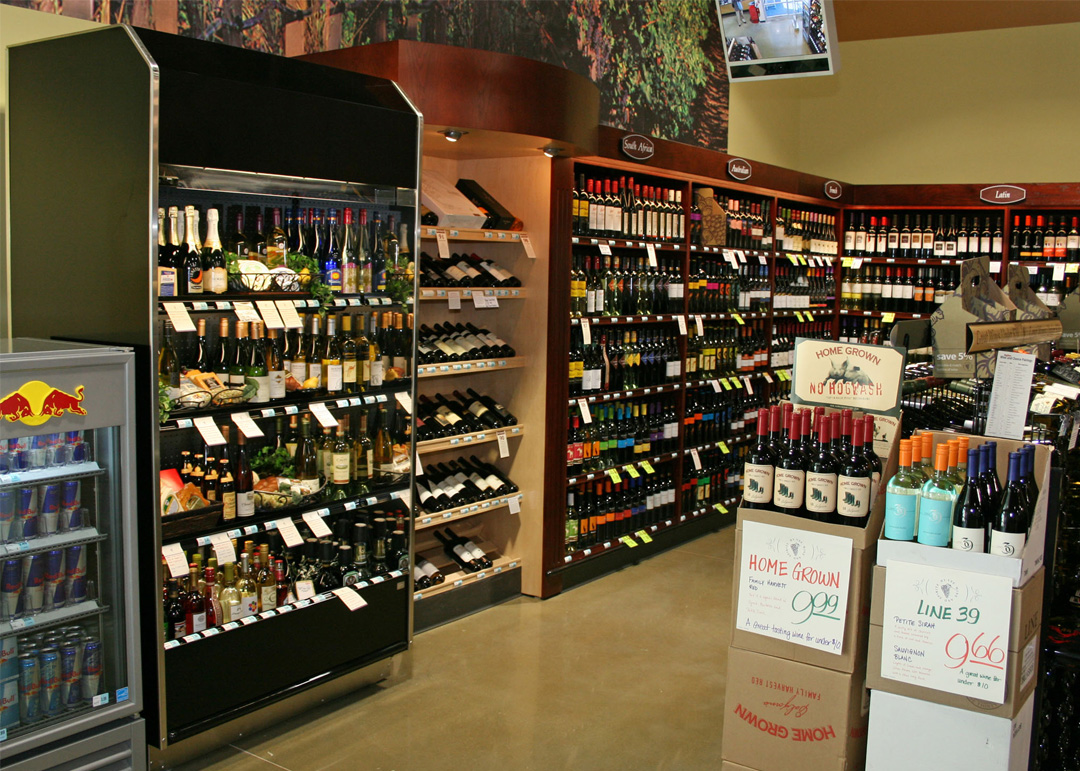

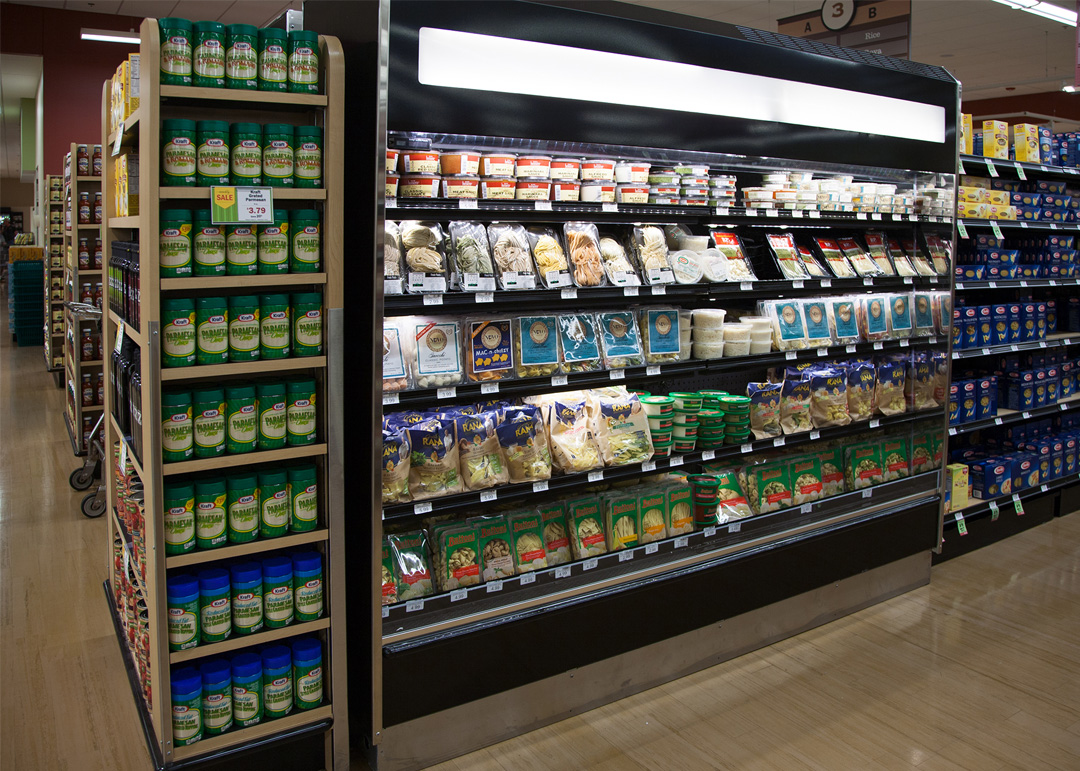

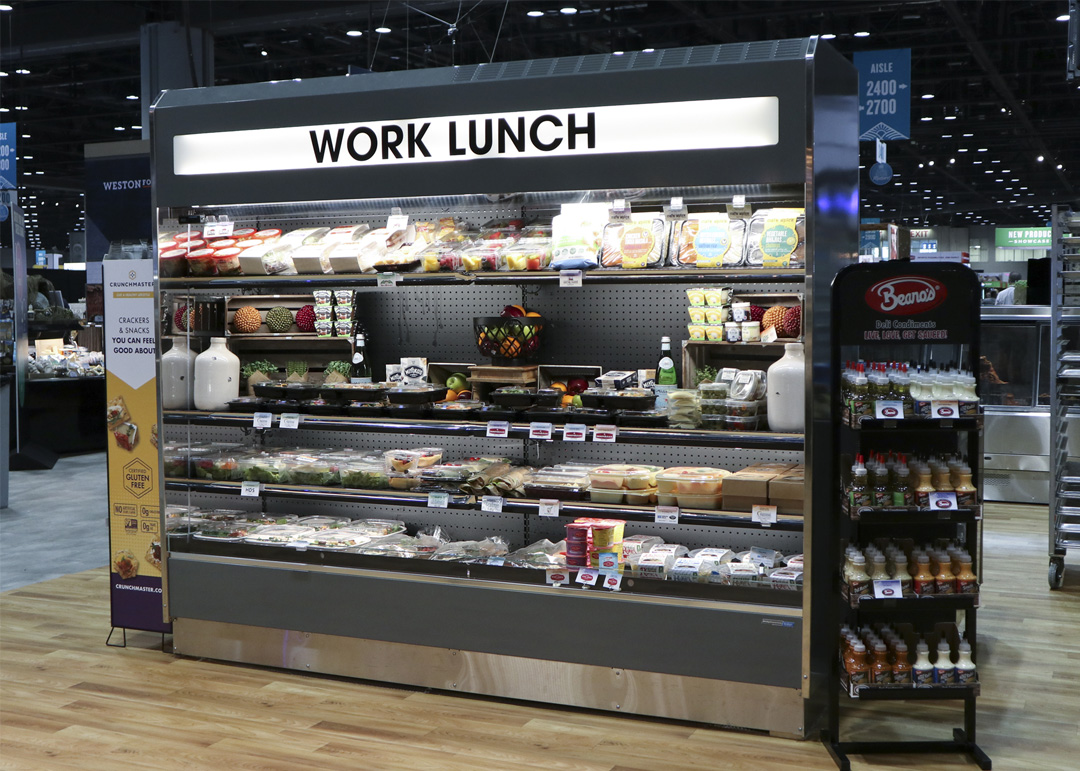

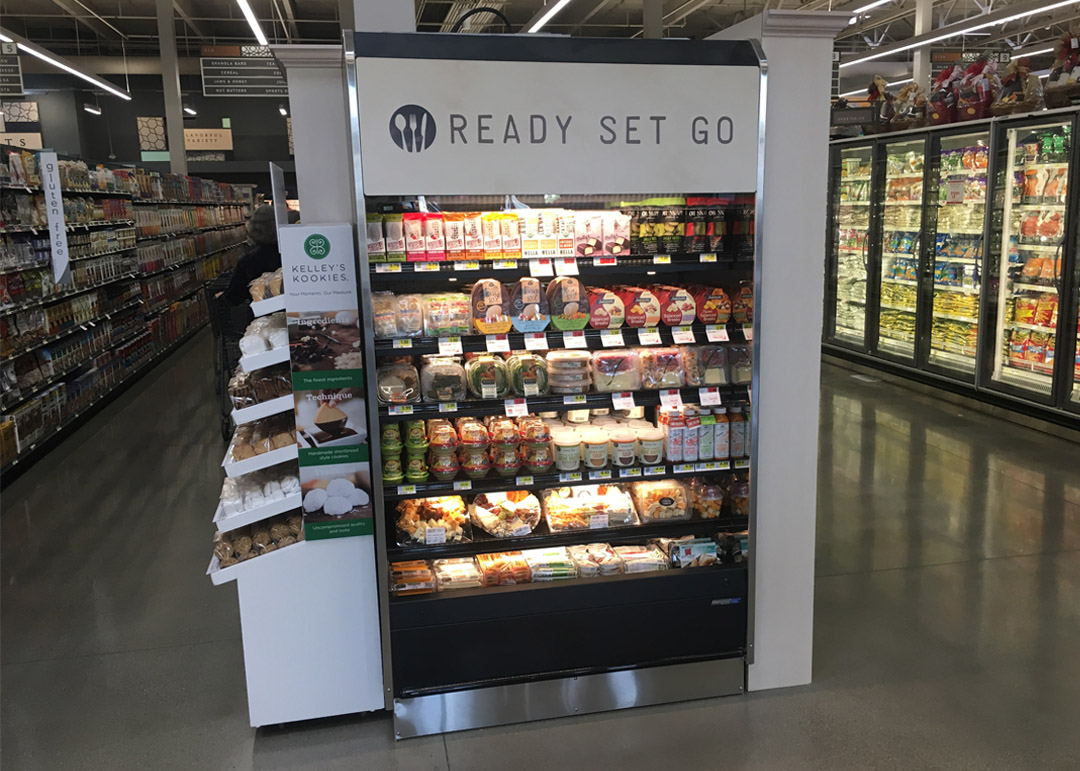

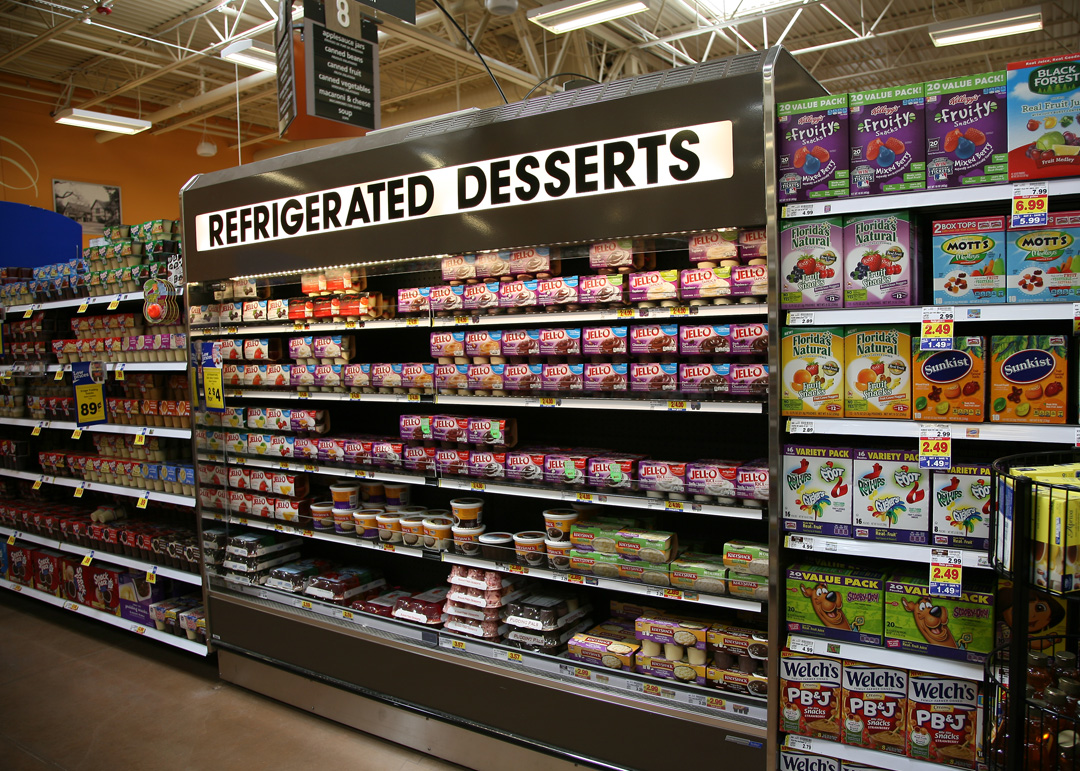

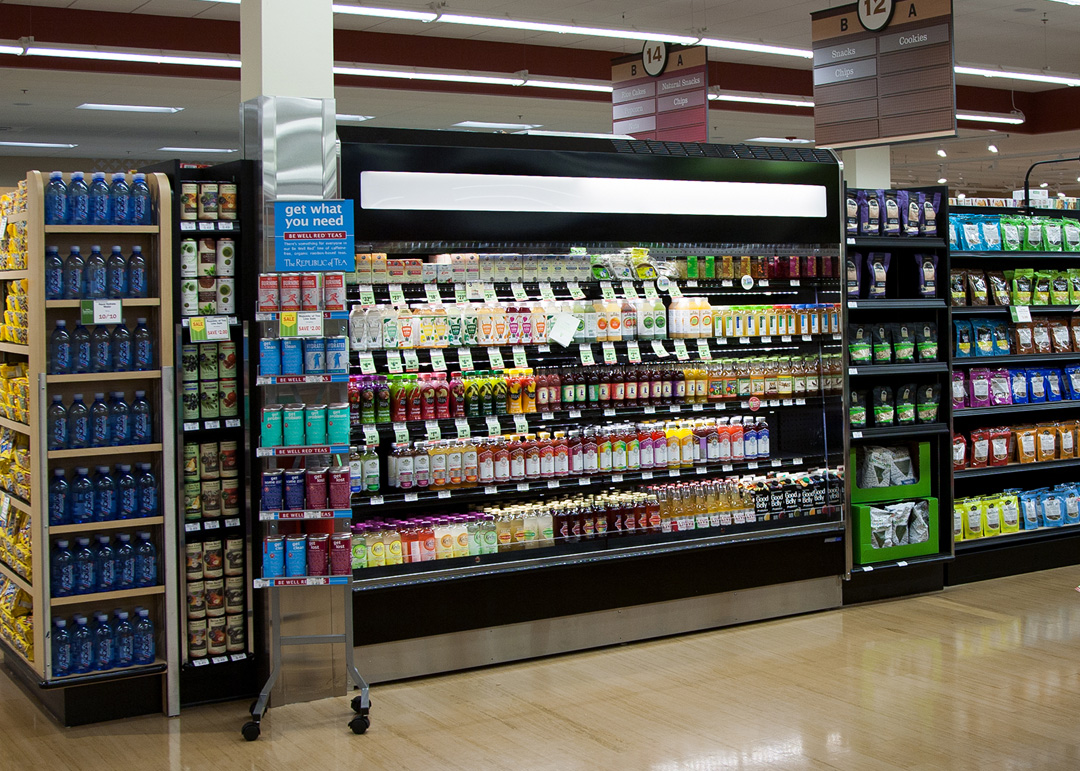

Hillphoenix QTM Multi-Deck, Self-Service, Refrigerated Display. Designed for prepackaged bakery, beverage, dairy, deli and produce applications with option for standard 30″ depth and options of 24″-and 35″-deep displays. Available in several lengths and up to four rows of shelves with top mount, self-contained unit.



Features & Benefits

  • Sled runner base construction.
  • Case dimensions: 82-1/2”H and 30”D.
  • 5-15/16”H stainless steel toekick, front and sides.
  • Painted metal exterior.
  • Solid cornice painted metal to match exterior.
  • Outside back and rear toekick galvanized.
  • Stainless steel exterior trim.
  • 3-1/2”H x 1/2” thick polished, straight die board plex.
  • Painted matte black metal interior and trim.
  • (1) row Clearvoyant ® LED top light.
  • (4) rows each 18” non-lighted adjustable flat black painted metal shelving with black price tag molding.
  • Painted black metal, flat bottom deck with 2” metal product stop.
  • Main power switch and on/off light switch.
  • Energy efficient fans.
  • Solar digital thermometer.
  • Top ballast electrical box located towards front of case.
  • 6’ Cord and plug.



Available Options

  • Case lengths: 47”, 72”, 95”, and 143”.
  • 24” case depth with 4 rows 12” shelves.
  • 35” case depth with 4 rows 22” shelves.
  • Exterior finishes: Exterior grade laminate or stainless steel..
  • Painted metal base trim.
  • Painted or stainless steel case interior.
  • Clearvoyant LED under shelf lighting.
  • Second row Clearvoyant LED top light.
  • Single or dual illuminated cornice – verbiage / lettering optional
  • Solid or full-view end panels with mirror-polished, stainless steel interior.
  • Thermal glass divider.
  • Cart bumper mounted on front panel of case.
  • Cart bumper added to end panels.
  • Econofrost night cover with or without cassette.
  • Refrigeration: R-290, high-efficiency fan motors, and digital temperature control with automatic defrost on 30”D x 47”L only.


QTM-SC-30

Compare

QTM-SC-24

Compare

QTM-SC-35

Compare

QTM-SC-R290 30-47

Compare

Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
