Service Single-Deck

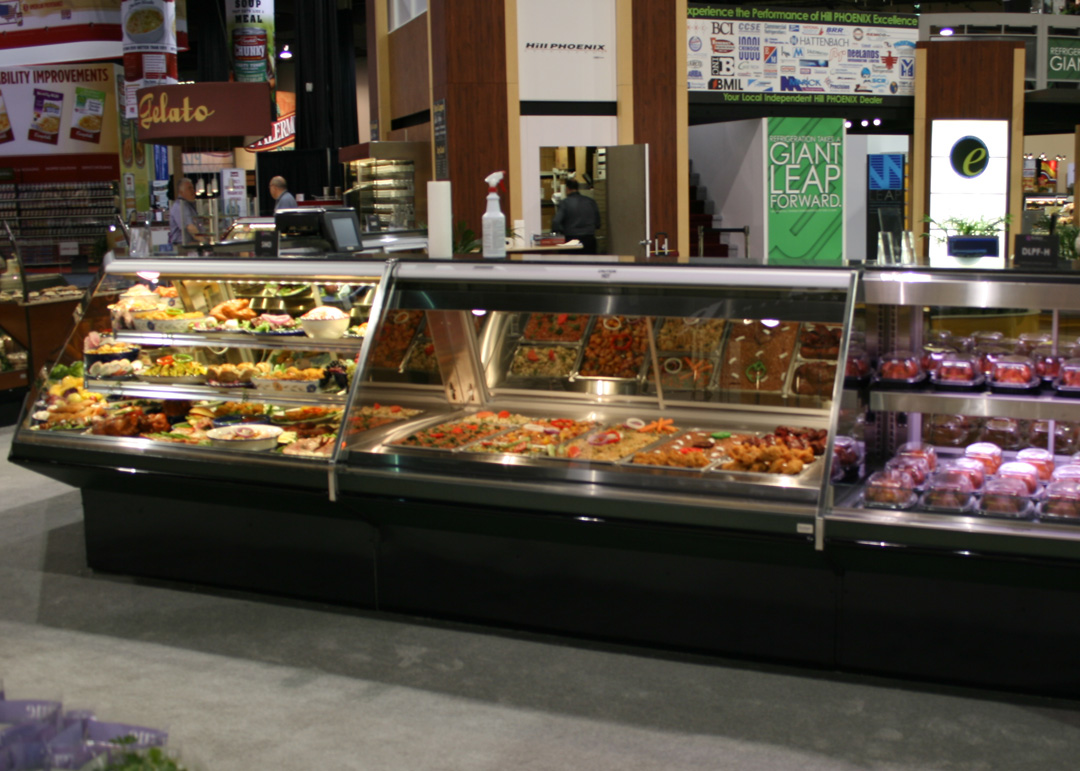

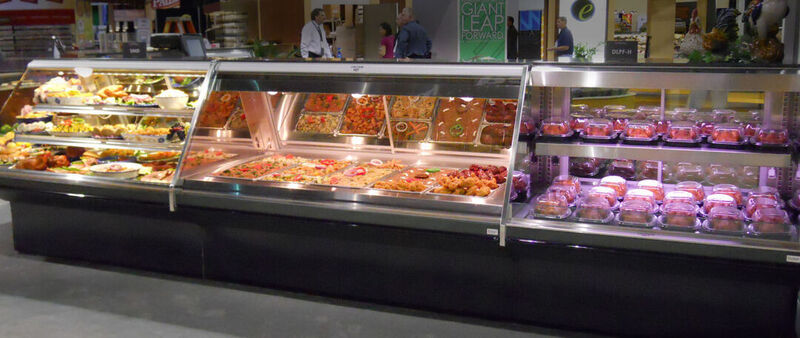

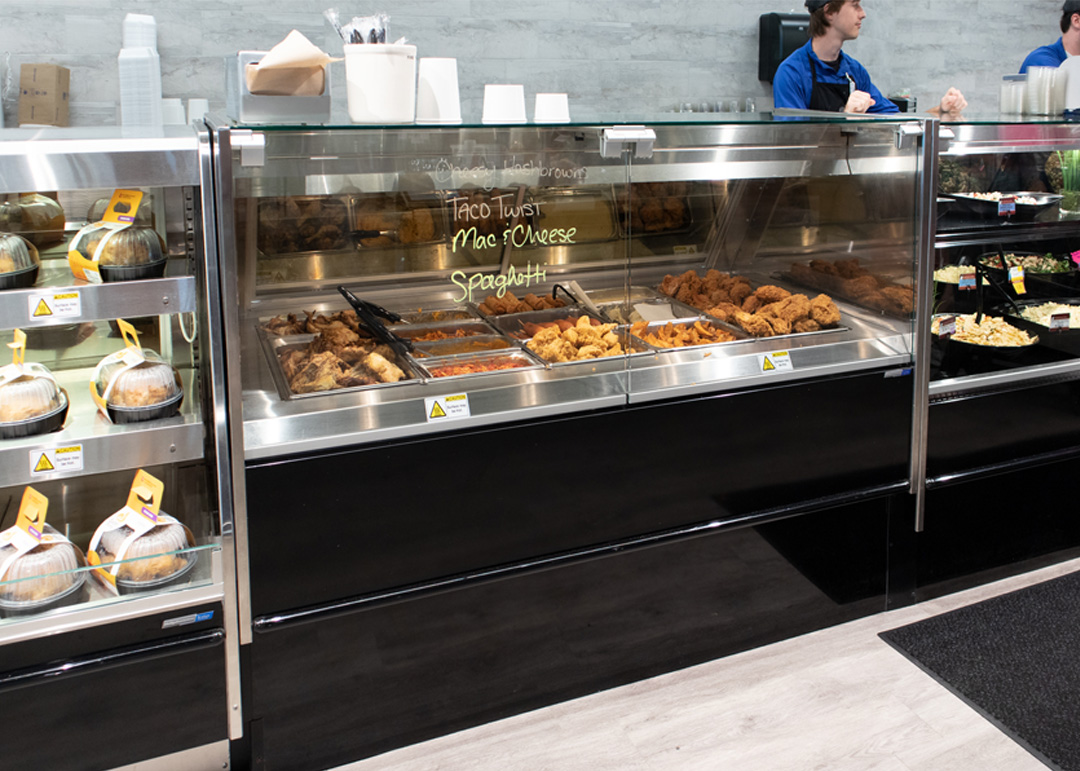

Hillphoenix SMD-H Single-Deck, Service, Hot Food Display. Designed for maintaining hot food temperatures with dry-heat, long-wave, radiant heat system. Available in various lengths with flat and vertical cube lift or swing glass hardware. Front profile lines up with the SMD-R, SMD-RGC and SMD-RG as well as cases with the option for the SMD profiles.

Features and Benefits

Sled runner base construction.
Standard 52-1/8”H and 42”D.
13-15/16”H base trim painted metal to match exterior.
60° front die board.
Painted metal exterior.
Stainless steel exterior trim.
Stainless steel outside back and case top.
3/8” glass case top.
Sliding, reflective rear load doors.
Spherical hardware.
Stainless steel interior and trim.
Stainless steel hot well with divider bars for full size 4”D pans. (Pans not included)
Low wattage, long wave radiant heat system.
Dry heat, no water connections necessary.
Electronically-controlled zone heating.
Rear-mounted heat controls.
2” dial thermometer.
Energy-efficient fans.
Rear electrical raceway.

Available Options

Available lengths: 4’, 6’, 8’, 10’ and 12’.
Bullet leg base with adjustable height toe kick.
Black painted metal base trim.
Cart bumper.
Exterior stainless steel finish.
Solid surface or stone case top.
Integrated case top scale stand.
Adjustable scale stand.
Pans, stainless steel solid deck sections and hot ceramic tiles.
Flat, regular glare front lift glass.
Adjustable scale stand.
Rear fixed or flip-up work boards.
ISO outlet/CON outlets or CAT5.
Thermal glass divider or glass ends, solid or MPSS.
Front electrical raceway.

SMD-H

Compare

Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
