SMD-RG
Service Single-Deck

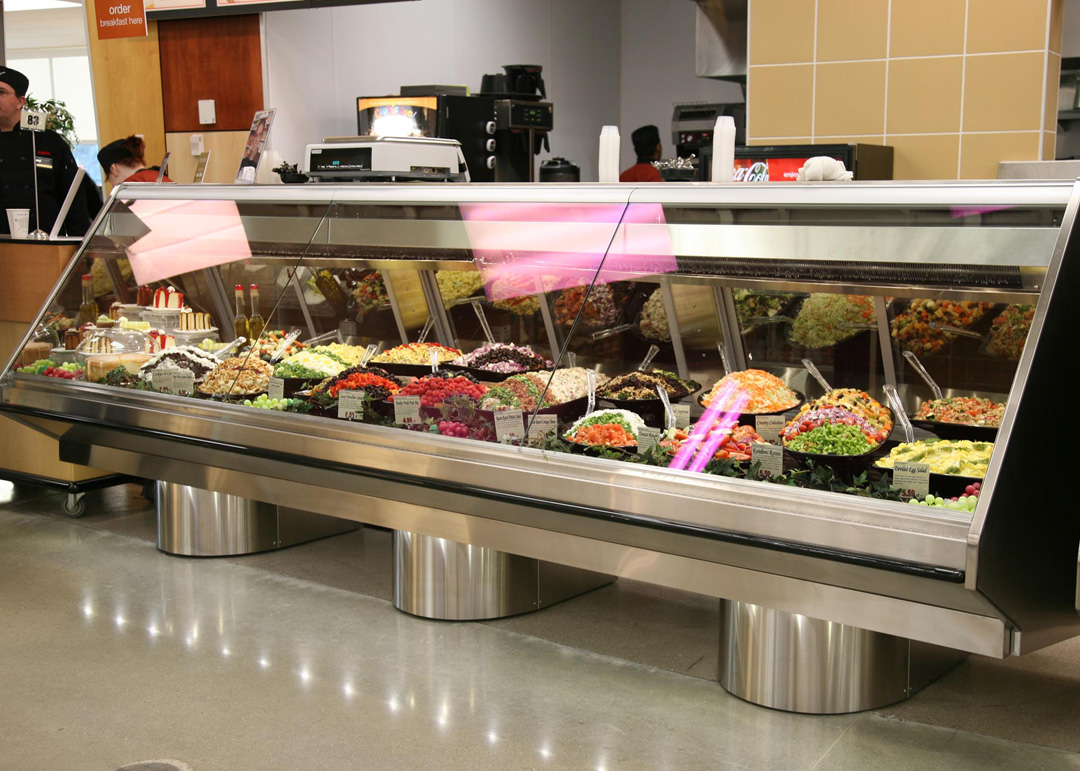

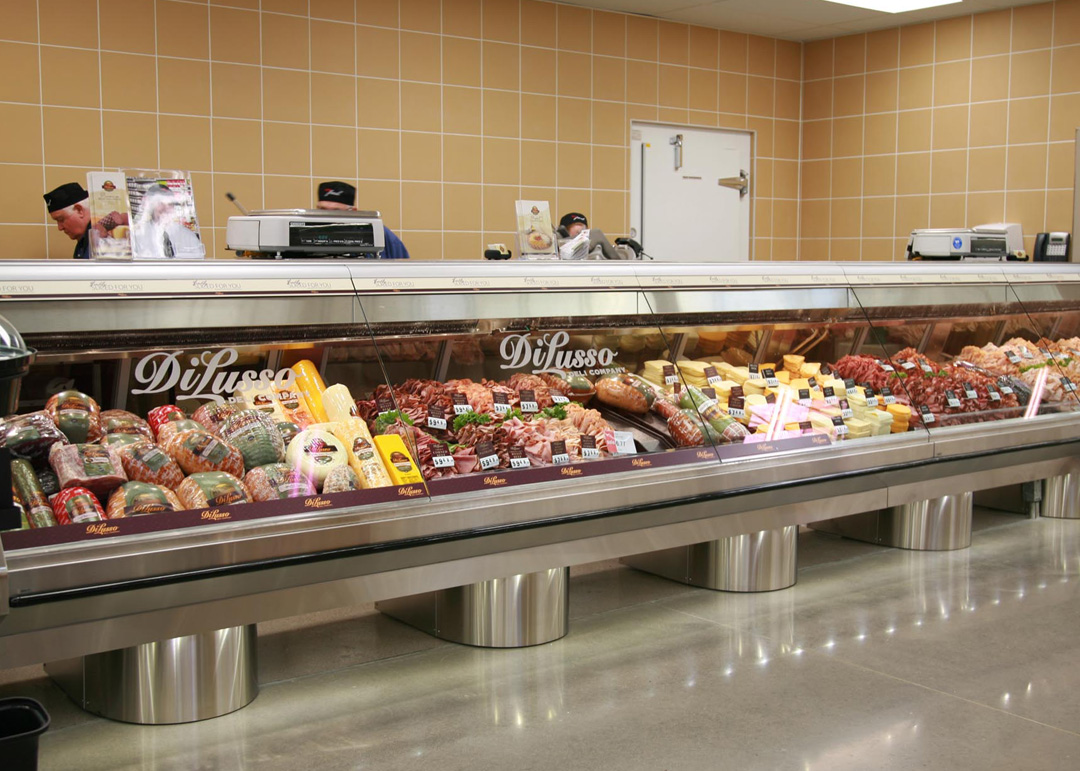

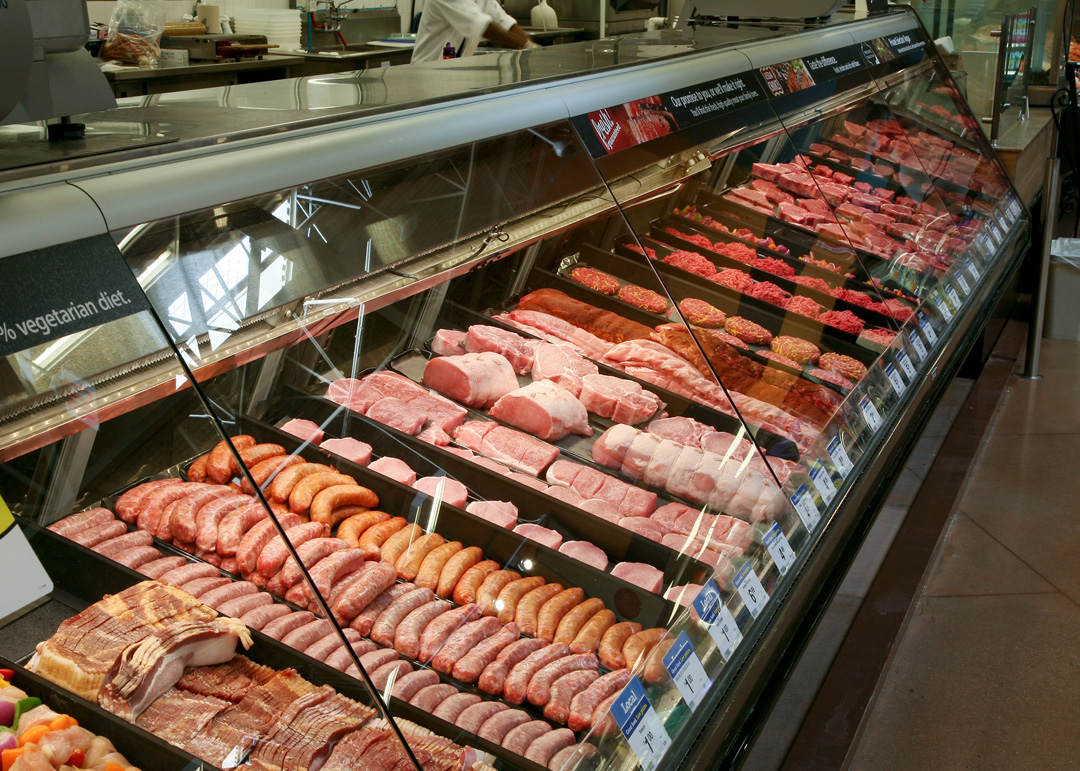

Hillphoenix SMD-RG Single-Deck, Refrigerated, Gravity Coil Display. Designed for deli, meat, and seafood applications with a curved lift-up front glass showcasing the product with an option for flat or vertical (CUBE) style front glass. Several case lengths are available. The front profile lines up with the SMD-R Deli, SMD-H, and SMD-RGC service merchandisers as well as the DLPC-R and DLPF-R self-service merchandisers.
Hillphoenix SMD-RG Single-Deck, Refrigerated, Gravity Coil Display. Designed for deli, meat, and seafood applications with a curved lift-up front glass showcasing the product with an option for flat or vertical (CUBE) style front glass. Several case lengths are available. The front profile lines up with the SMD-R Deli, SMD-H, and SMD-RGC service merchandisers as well as the DLPC-R and DLPF-R self-service merchandisers.
Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
Service Single-Deck
Hillphoenix SMD-RG Single-Deck, Refrigerated, Gravity Coil Display. Designed for deli, meat, and seafood applications with a curved lift-up front glass showcasing the product with an option for flat or vertical (CUBE) style front glass. Several case lengths are available. The front profile lines up with the SMD-R Deli, SMD-H, and SMD-RGC service merchandisers as well as the DLPC-R and DLPF-R self-service merchandisers.
Hillphoenix SMD-RG Single-Deck, Refrigerated, Gravity Coil Display. Designed for deli, meat, and seafood applications with a curved lift-up front glass showcasing the product with an option for flat or vertical (CUBE) style front glass. Several case lengths are available. The front profile lines up with the SMD-R Deli, SMD-H, and SMD-RGC service merchandisers as well as the DLPC-R and DLPF-R self-service merchandisers.
Features & Benefits
- Sled runner base construction.
- Case dimensions: 52-1/8”H & 42”D.
- 13-15/16”H stainless steel toekick, front and sides.
- 60-degree front dieboard.
- Painted metal exterior.
- Stainless steel base trim, front, sides, & rear.
- Stainless steel exterior trim.
- Reflective rear load doors with black frames.
- Single-pane, regular glare curved glass with lift-up glass hardware.
- Painted matte black metal interior and trim.
- Black painted metal flat bottom merchandising deck.
- Clearvoyant® LED dual top lighting.
- Solar digital thermometer.
- Rear electrical raceway location.
- Remote DX gravity coil refrigeration package.
- Serpentine coil assist.
Available Options
- Available lengths: 4’, 6’, 8’, 10’, and 12’.
- Case heights available: 54-1/8”.
- Interior or exterior miters and wedges.
- Alternate 15-15/16” H toekick height.
- Flat front profile.
- Bullet leg base with adjustable height toekick.
- Pedestal base or false pedestal base.
- Exterior finishes: exterior grade laminate or stainless steel.
- Interior finishes: painted white or stainless steel.
- Solid surface or stone case top.
- Non-glare front glass.
- Front glass masking.
- Single-pane, regular glare flat glass with lift-up glass hardware.
- Single-pane, regular glare vertical glass with the option of swing or lift-up hardware.
- Ice pans for ice application.
- Integrated case top scale stand or adjustable scale stand.
- Rear flip-up work boards (fixed or flip-up) in poly, stainless steel, or solid surface.
- Paper cutters.
- ISO outlet/CON outlets (specify vertical or horizontal placement on rear).
- Clear rear load doors.
- Gray rear load door frames.
- Solid or full-view end panels with mirror-polished, stainless steel interior.
- Thermal divider.
- Cart bumper mounted on front panel of case.
- Cart bumper added to end panels.
- Front electrical raceway.
- Remote glycol or CO2 refrigeration packages.
Attributes
- Alternate Heights: 54-1/8"
- Case Depth / Footprint: 42"
- Case Height Standard: 52-1/8"
- Case Length: 4’, 6’, 8’, 10' and 12’
- Case Temp: Medium-Temp
- Case Type: Rear-Load, Remote, Service, Single-Deck
- Department: Deli, Meat & Seafood
- Door Type: -
- Interior Depth: 33-5/8"
- Interior Height: 18-9/16"
- Other Models: Meat and seafood. Also consider the BMD-RG and GMD-RG, SSFM-RG, SSAM-RGSMD-RGC or GMD-RGC
- Product Type: Specialty Cases
- Refrigerated Volume: -
- Remote / Self-Contained: Remote
- Retail Types: Food Service, Mass Merchandise, Membership & Warehouse, Supermarket
