Technical Reference Sheet

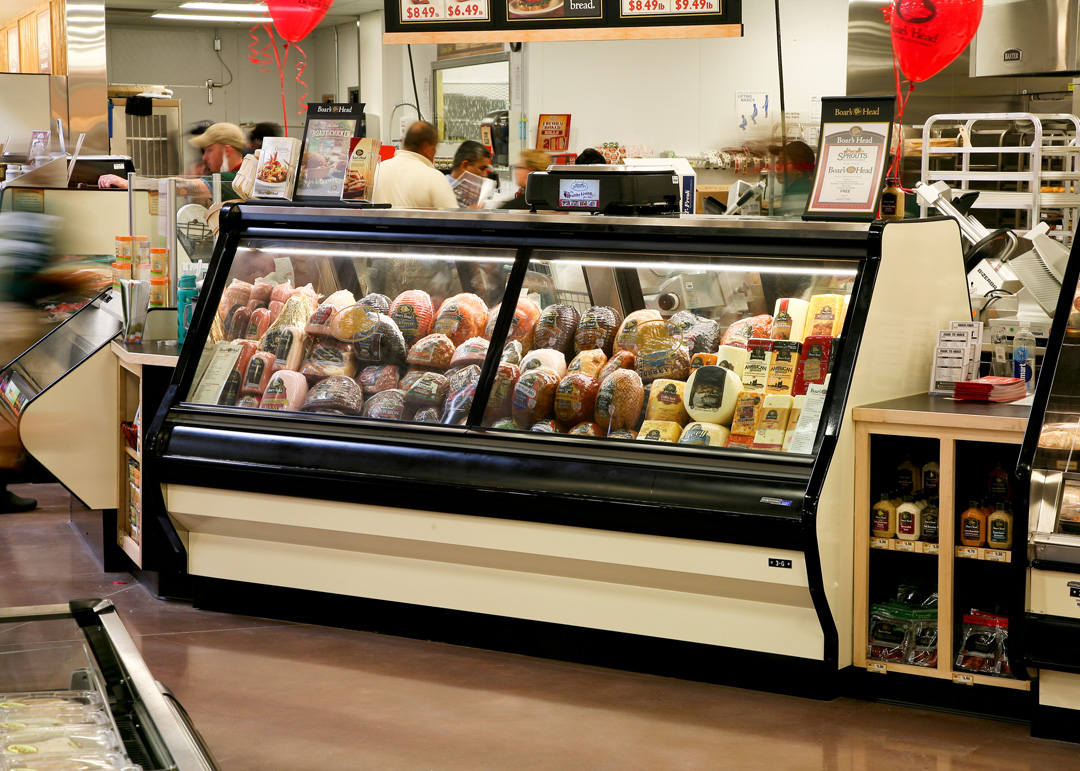

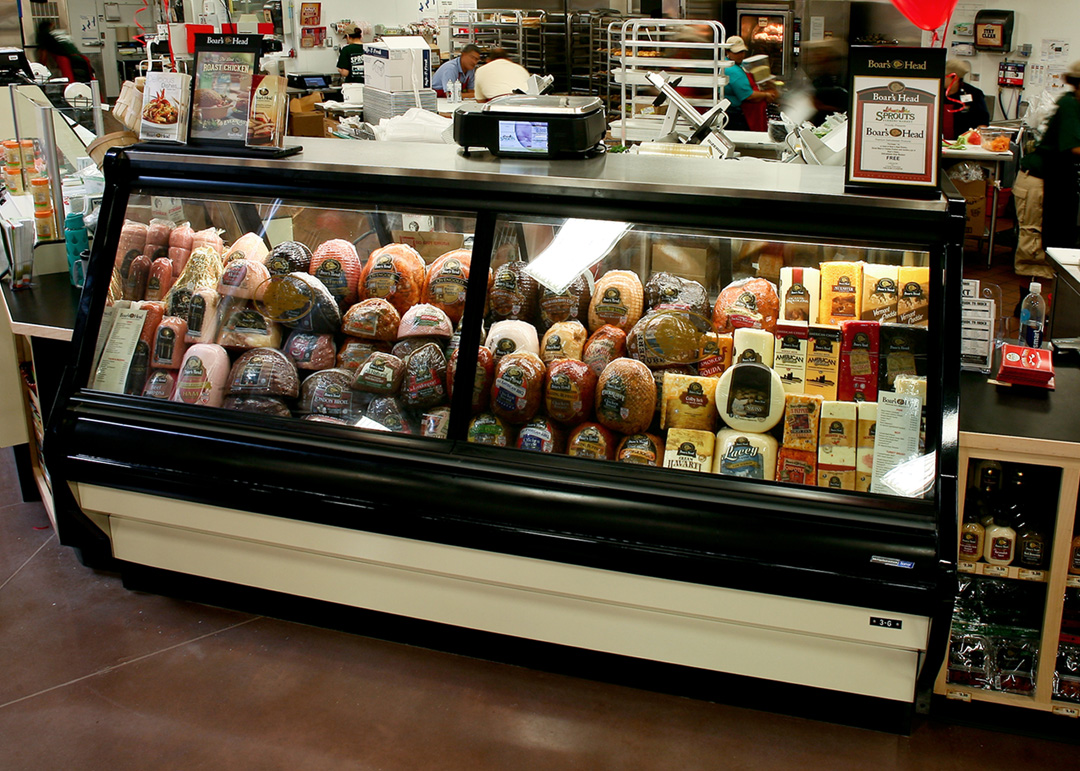

Hillphoenix SSF-R Multi-Deck, Refrigerated Display. Designed for deli applications. Flat glass profile with up to two rows of shelves. Front of case lines up with the SSF-RG, SSFM-RG, SSFS-RG for a continuous department look. Available in several case lengths and heights.
Features and Benefits
- C-frame with bullet leg construction.
- Standard 50-1/2”H with 7”H base frame height.
- Exterior: Painted metal, including lower front panel above base.
- Stainless steel base trim, front and sides.
- Stainless steel exterior trim.
- Painted metal outside back and rear base trim.
- Stainless steel top sill.
- Clear rear load doors with black frames.
- 5/8” thermopane, insulated regular-glare flat lift front glass.
- Gray glass gasket, wipe and glass handle.
- Black painted metal interior and trim.
- Black plastic coil covers with fixed black wire rack.
- LEDl canopy lighting.
- Rear electrical box mounted behind the lower panel.
- Blower deli model.
- Solar digital thermometer.
- Energy efficient fans.
- Remote DX refrigeration package.
Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
