CNZLA

CNZLA

Bunker-style Display

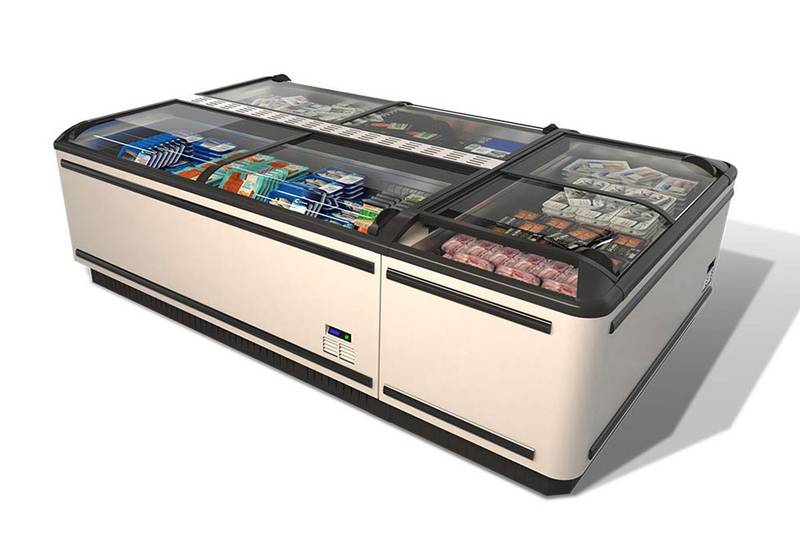

Hillphoenix CNZLA and CNEZLA Self-contained Mobile R-290 Refrigerated Cases.  Designed as a bunker-style display case with horizontal sliding lids and with R-290 cold wall technology.  It's a multi-temperature display for medium temp, low temp, or ice cream temperatures.   Available in several lengths and can be utilized as a stand-alone case or in an island configuration creating merchandising flexibility.

Hillphoenix CNZLA and CNEZLA Self-contained Mobile R-290 Refrigerated Cases.  Designed as a bunker-style display case with horizontal sliding lids and with R-290 cold wall technology.  It's a multi-temperature display for medium temp, low temp, or ice cream temperatures.   Available in several lengths and can be utilized as a stand-alone case or in an island configuration creating merchandising flexibility.

Less

  • CNZLA-CNEZLA-photo-images-hero-1000x667.jpg
  • CNZLA-display-case-CAD-drawing.dwg

Installation Manuals

  • CNZLA-CNEZLA-display-case-manual-rv1.pdf

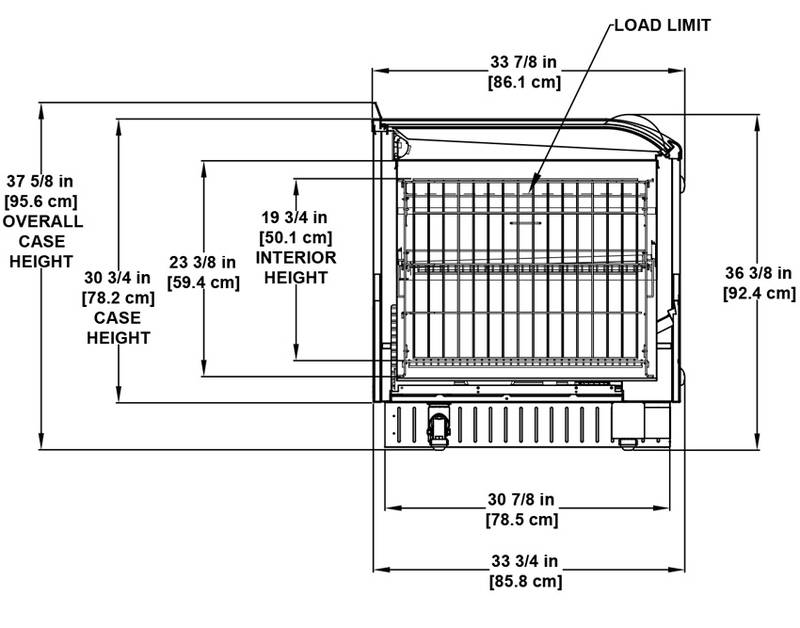

Cross Section

  • CNZLA-page-profile-rv1.jpg

Sales Literature

  • R-290 CASE Availability 5-2023.pdf
  • CNZLA-CNEZLA-display-case-sales-sheet.pdf

Technical Reference

  • CNZLA-display-case-tech-reference-sheet-rv2.pdf

Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.

Bunker-style Display

Hillphoenix CNZLA and CNEZLA Self-contained Mobile R-290 Refrigerated Cases.  Designed as a bunker-style display case with horizontal sliding lids and with R-290 cold wall technology.  It's a multi-temperature display for medium temp, low temp, or ice cream temperatures.   Available in several lengths and can be utilized as a stand-alone case or in an island configuration creating merchandising flexibility.

Hillphoenix CNZLA and CNEZLA Self-contained Mobile R-290 Refrigerated Cases.  Designed as a bunker-style display case with horizontal sliding lids and with R-290 cold wall technology.  It's a multi-temperature display for medium temp, low temp, or ice cream temperatures.   Available in several lengths and can be utilized as a stand-alone case or in an island configuration creating merchandising flexibility.

Less


Download OPEN FULL SCREEN
ADD TO DOWNLOAD LIST

Features & Benefits

  • Self-contained.
  • Propane (R-290) cold wall refrigeration package.
  • CNZLA case dimensions: 37-5/8”H and 33-3/4”D.
  • CNEZLA end cap case dimensions: 37-5/8”H and 33-3/4”D.
  • Painted white metal exterior.
  • Horizontal sliding lids with dark grey trim.
  • Two rows dark gray bumper.
  • Dark grey tag molding mounted to exterior of case.
  • Dark grey vented kick plates and exterior trim.
  • Recessed casters with adjustable feet.
  • Aluminum interior.
  • Interior Grey wire bin baskets.
  • 19-1/2”H stacking load line.
  • Multi-temperature capability including medium temp, low temp, and ice cream temp.
  • LED interior case lighting.
  • Frost resistant surfaces.
  • Side to side slider lid movement.
  • 6’ Cord and plug.
  • Power: 115v, 60Hz, single phase with NEMA 5-15P plug.

Available Options

  • CNZLA case lengths: 4’, 7’, and 8’.
  • CNEZLA end cap case length: 6’
  • No miters or wedges available.
  • Exterior painted finish: dark gray
  • Trim kit for multi-case island configurations.
  • 6’ locking cord and plug NEMA L5-15P
  • 50HZ electrical configuration.

Attributes

  • Case Depth / Footprint: 33-3/4"
  • Case Height Standard: 37-5/8"
  • Interior Height: 19-3/4"
  • Case Length: 4', 7', and 8'
  • Interior Depth: basket = 25" D
  • Case Temp: Low-Temp, Medium-Temp, Multi-Temp
  • Case Type: Self-Service, Glass Door & Lid, Propane, Self-Contained, Island, Single-Deck
  • Remote / Self-Contained: Self-Contained
  • Product Type: Display Case
