VNRZ
Narrow Glass Door Reach-In

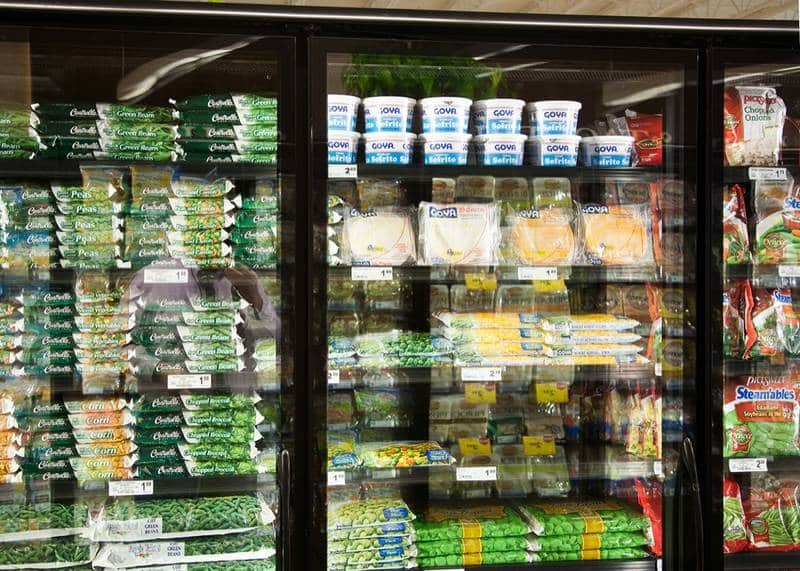

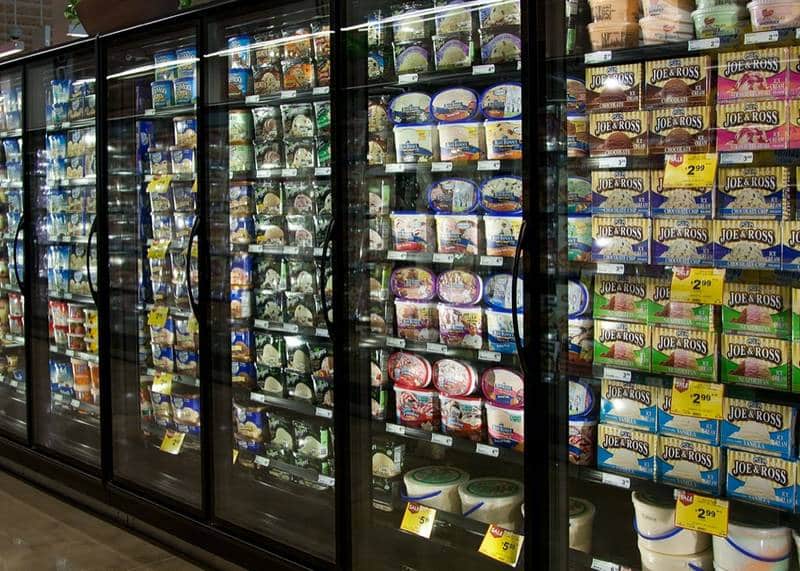

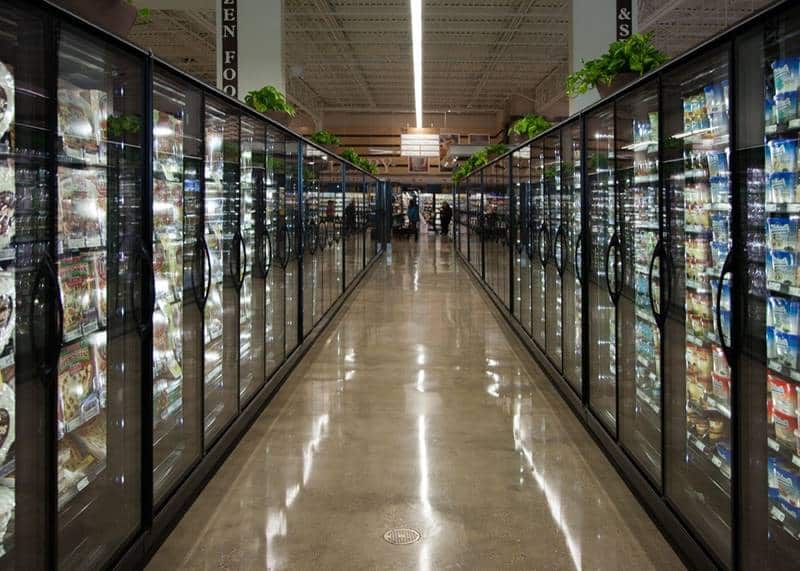

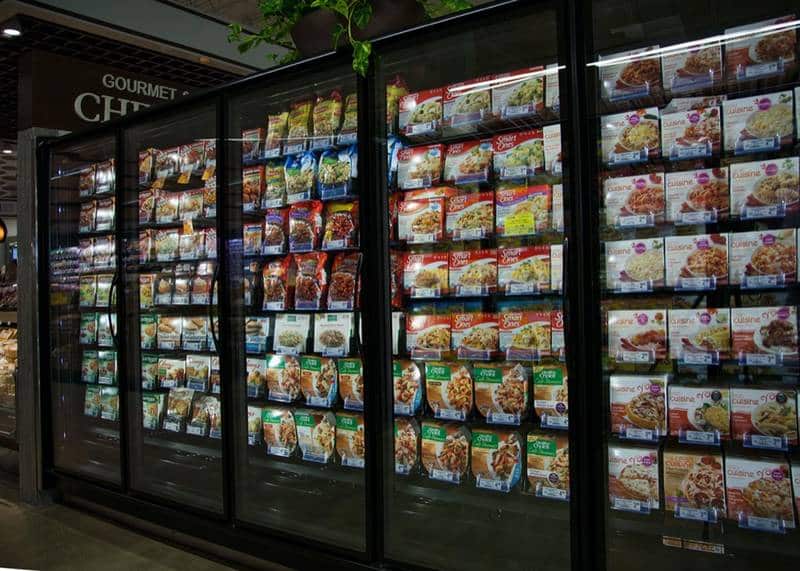

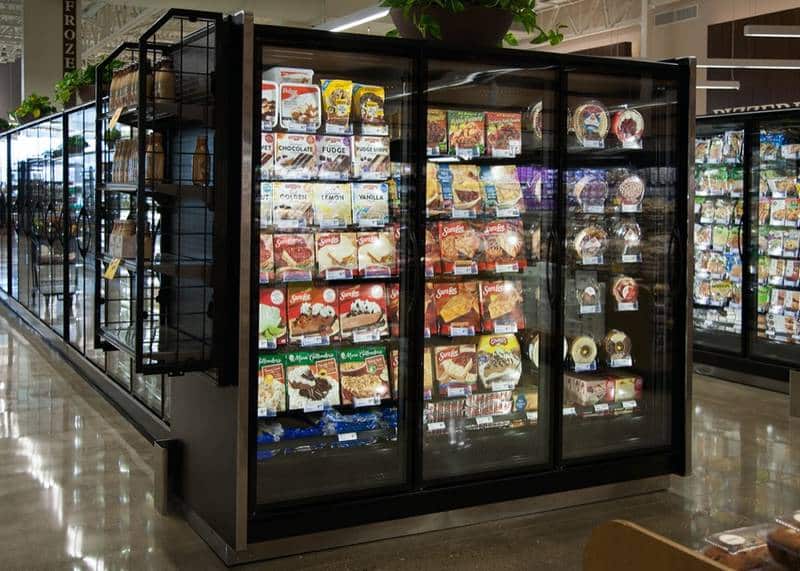

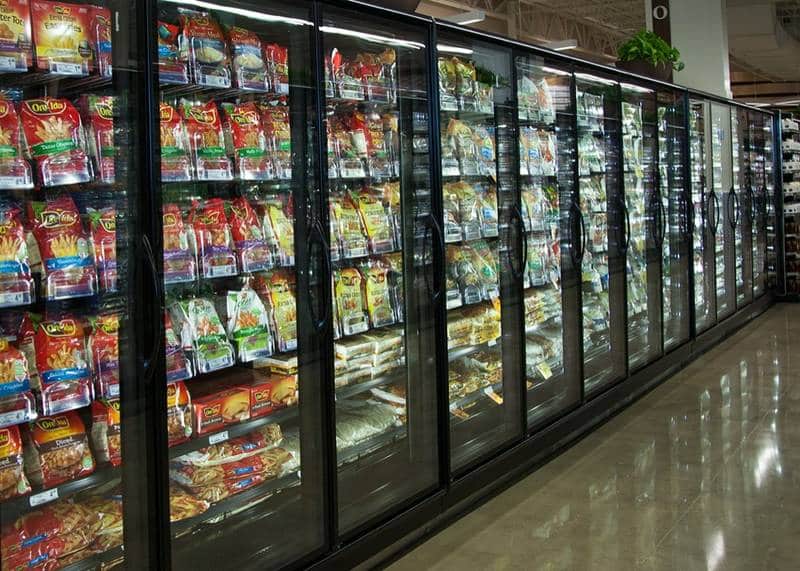

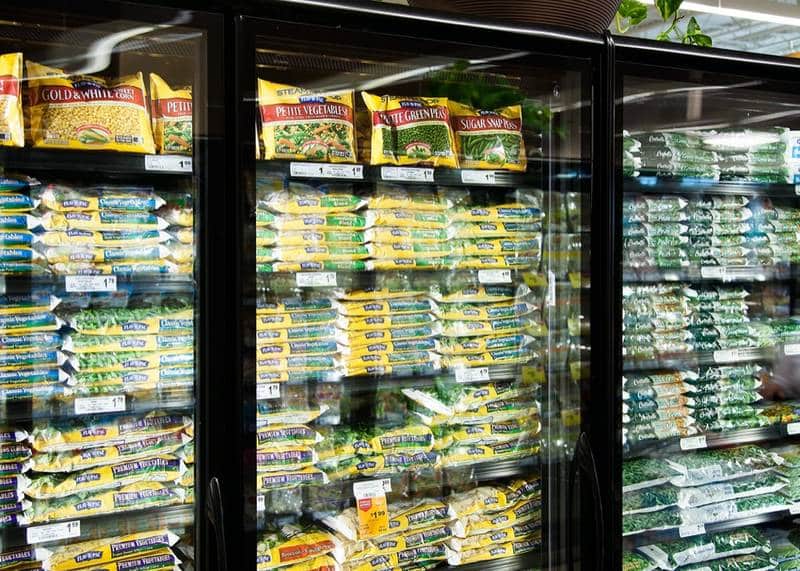

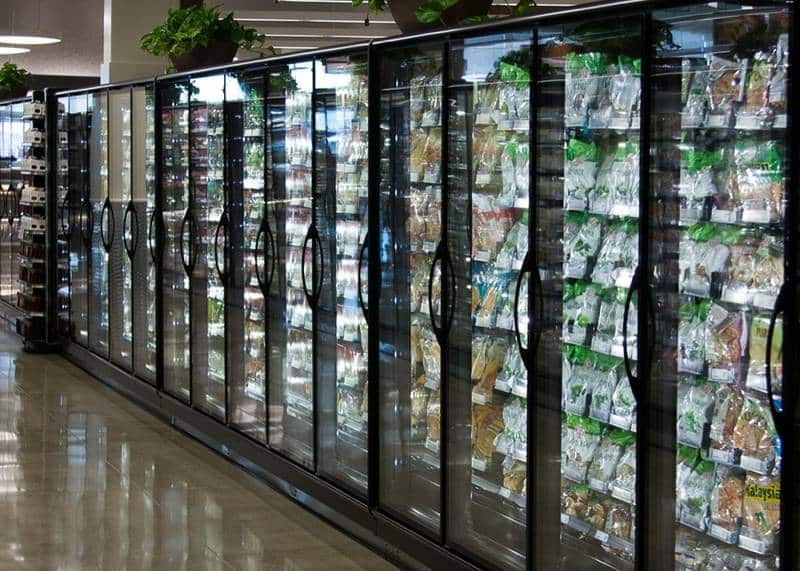

Hillphoenix Clarity Glass Door, Reach-In Cases VNRZ Low-Front Narrow-Depth, Standard-Height and VNRZH Narrow-Depth, High-Height, Low-Temperature Display Cases for frozen food and ice cream. Modern, all-glass look, flexible and dynamic merchandising. Several 3-pane door styles, finish colors and handles available.
Hillphoenix Clarity Glass Door, Reach-In Cases VNRZ Low-Front Narrow-Depth, Standard-Height and VNRZH Narrow-Depth, High-Height, Low-Temperature Display Cases for frozen food and ice cream. Modern, all-glass look, flexible and dynamic merchandising. Several 3-pane door styles, finish colors and handles available.
Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
Narrow Glass Door Reach-In
Hillphoenix Clarity Glass Door, Reach-In Cases VNRZ Low-Front Narrow-Depth, Standard-Height and VNRZH Narrow-Depth, High-Height, Low-Temperature Display Cases for frozen food and ice cream. Modern, all-glass look, flexible and dynamic merchandising. Several 3-pane door styles, finish colors and handles available.
Hillphoenix Clarity Glass Door, Reach-In Cases VNRZ Low-Front Narrow-Depth, Standard-Height and VNRZH Narrow-Depth, High-Height, Low-Temperature Display Cases for frozen food and ice cream. Modern, all-glass look, flexible and dynamic merchandising. Several 3-pane door styles, finish colors and handles available.
Features & Benefits
- 75” tall door (VNRZ), 81” tall door (VNRZH), coupled with 8” ultra-low front maximizes product visibility and merchandising versatility.
- 66” Interior front facings (VNRZ), 72” Interior front facings (VNRZH) enhance planogram design options with added flexibility and versatility.
- With no restrictions in the interior due to refrigeration components being located in the tank below the deck pan, planograms are easier to design allowing for product to take center stage.
- Bottom-located refrigeration components facilitate serviceability and allow for full top shelf merchandising.
- Modular interior component design allows easy access to the coil, fans and drain for ease of maintenance.
- Proprietary Synerg-E® technology with NRGcoil™ and energy efficient fan motors ensure uniform case performance and lower average product temperatures with optimum energy efficiency.
- Medium and low temp models match for consistency in store design.
- Innovative Anthony® Optimax LED lighting choices increase visual impact of product while reducing energy consumption.
- Removable casters for easy merchandiser unloading and movement during installation.
Available Options
- 1, 2, 3, 4 & 5 door cases with 30” standard swing doors.
- Variety of door rail profiles, finishes and handles.
- Available frames: Anthony® 101 LE.
- Available doors: Anthony ELM D, ELM H & Infinity 90.
- Available door colors: silver satin, polished aluminum, black or glass infinity edge.
- Low energy or standard heat doors.
- Shelving: 22” or 24”.
- Motion sensors for additional energy savings.
- Anti-condensate controls.
- Electric or Hot Gas defrost.
- Polymer or metal end trim.

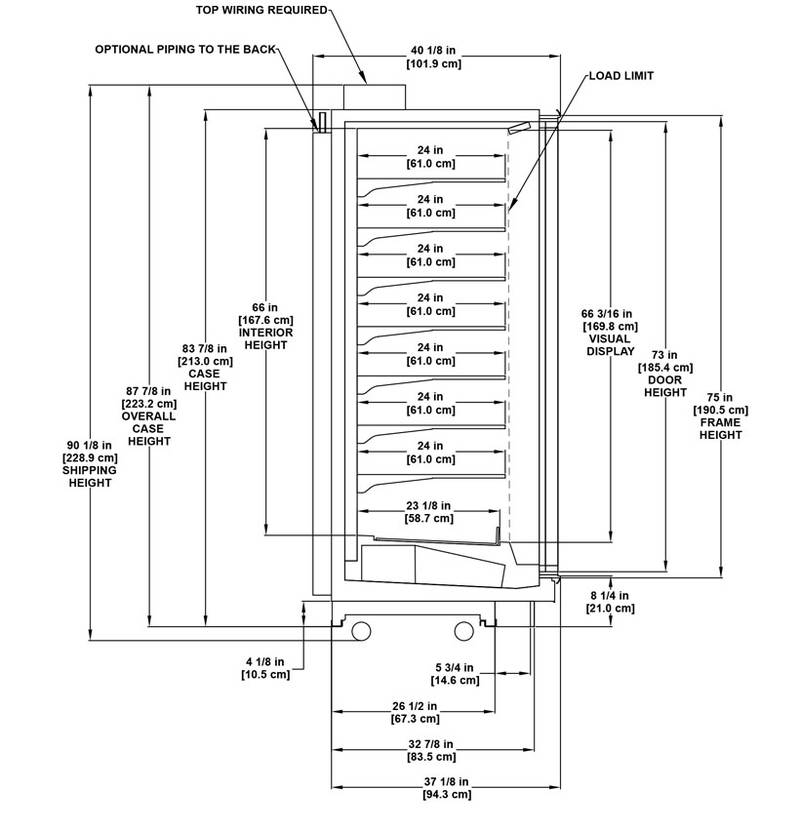

Attributes
- Alternate Heights: VNRZH
- Case Depth / Footprint: 37-1/8"
- Case Height Standard: 87 7/8"
- Case Length: 1, 2, 3, 4 & 5 Door
- Case Temp: Low-Temp
- Case Type: Reach-In, Remote, Self-Service, Glass Door & Lid
- Department: Frozen Food, Ice Cream & Gelato
- Door Type: Many door types in 3-pane, finish colors and handle options available. Please see Clarity for more details.
- Interior Depth: 23 1/8"
- Interior Height: 66"
- Other Models: Best used for applications that you want a modern all-glass door case merchandising option. Several 3-pane door styles, finish colors and handles available. Available in Standard Height, High and Bac
- Product Type: Display Case
- Refrigerated Volume: 27.5 Cubic Foot per Door
- Remote / Self-Contained: Remote
- Retail Types: Convenience Store, Drug Store, Mass Merchandise, Membership & Warehouse, Supermarket
