HVI-3-406R/S

HVI-3-406R/S

Refrigerated Island Merchandiser

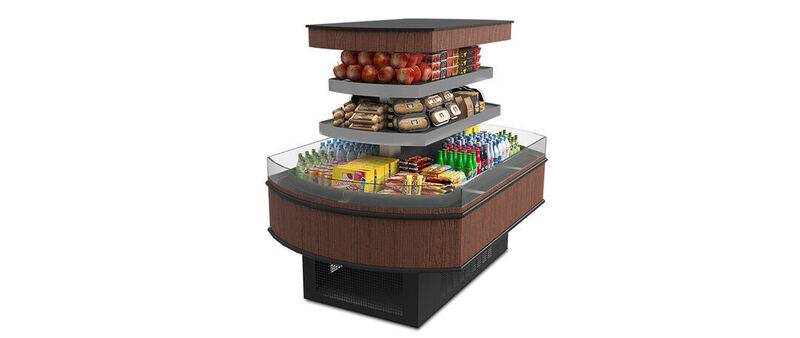

Hillphoenix HVI-3-406R/S Refrigerated Island Merchandiser for bakery, beverage, dairy, deli, and produce applications. This 4' wide island is a shop-around island available in a 6' case length with the option of remote or self-contained refrigeration.  Available with two rows of airflow shelving.  Also available in an 8' (HVI-3-408R) case length in the remote option only.  For an option with only one end cap and shopped from three sides, choose the HVI-3-406S-EC model.

Hillphoenix HVI-3-406R/S Refrigerated Island Merchandiser for bakery, beverage, dairy, deli, and produce applications. This 4' wide island is a shop-around island available in a 6' case length with the option of remote or self-contained refrigeration.  Available with two rows of airflow shelving.  Also available in an 8' (HVI-3-408R) case length in the remote option only.  For an option with only one end cap and shopped from three sides, choose the HVI-3-406S-EC model.

Less

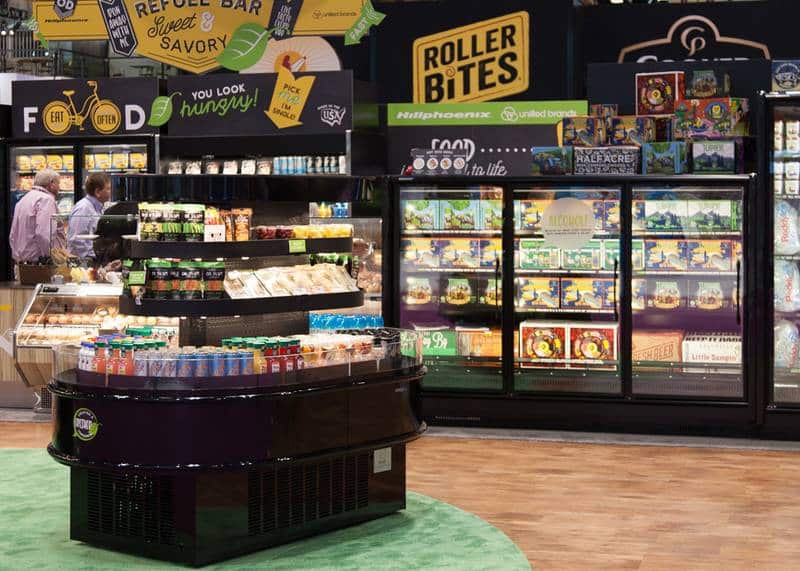

  • HVI-3-406S-display-case-photo-deli-0517.jpg

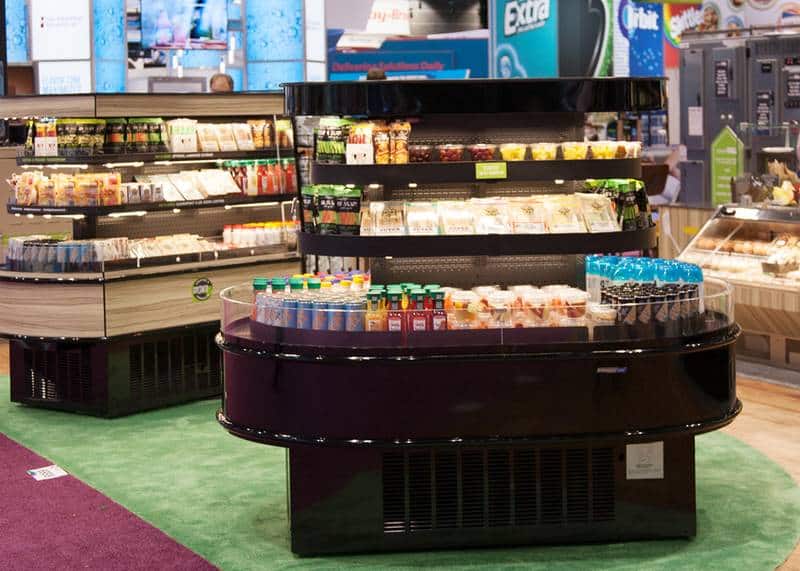

  • HVI-3-406S-display-case-photo-deli-0514.jpg

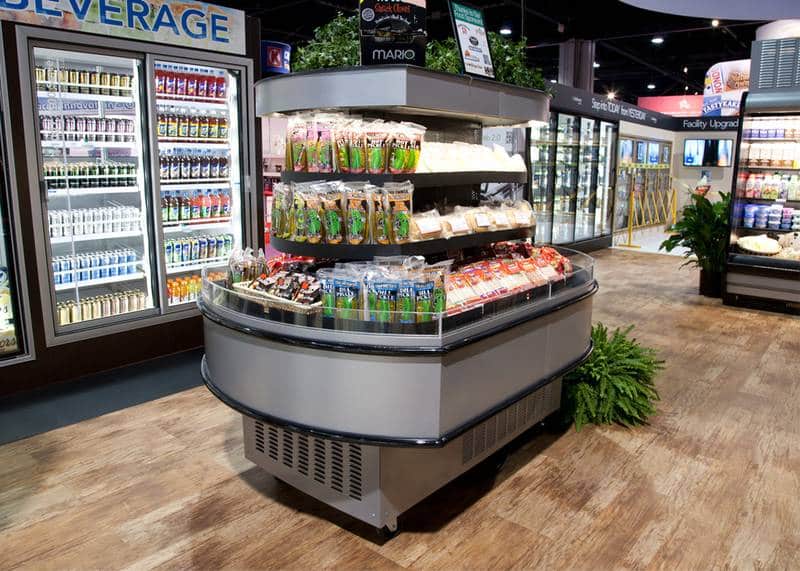

  • HVI-3-406S-display-case-photo-deli-6808.jpg

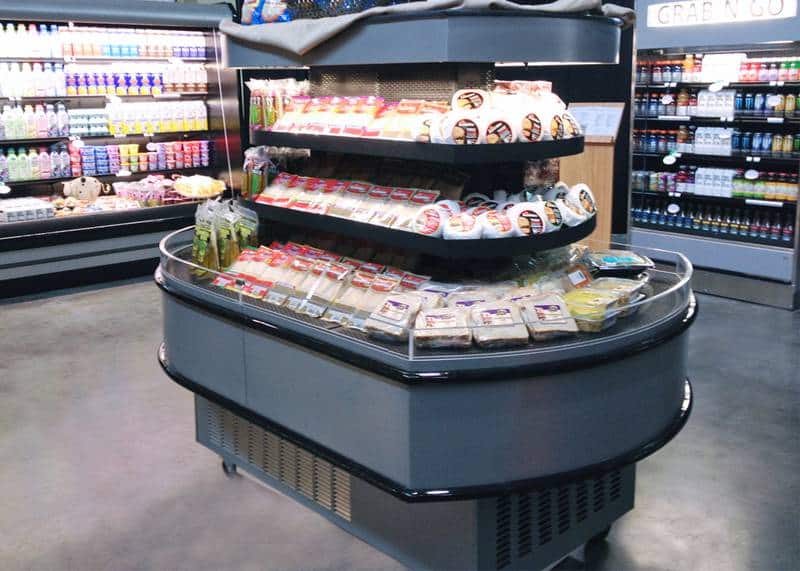

  • HVI-3-406S-display-case-photo-deli-2323.jpg

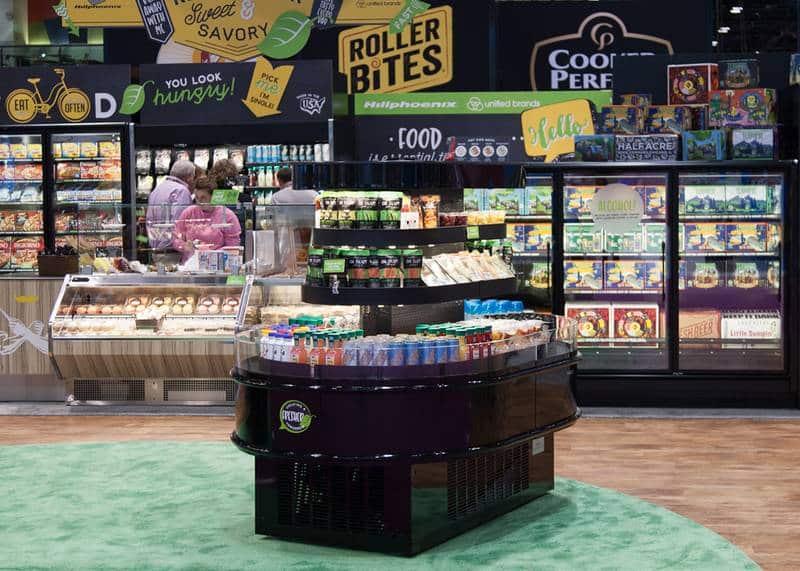

  • HVI-3-406S-display-case-photo-deli-0519.jpg

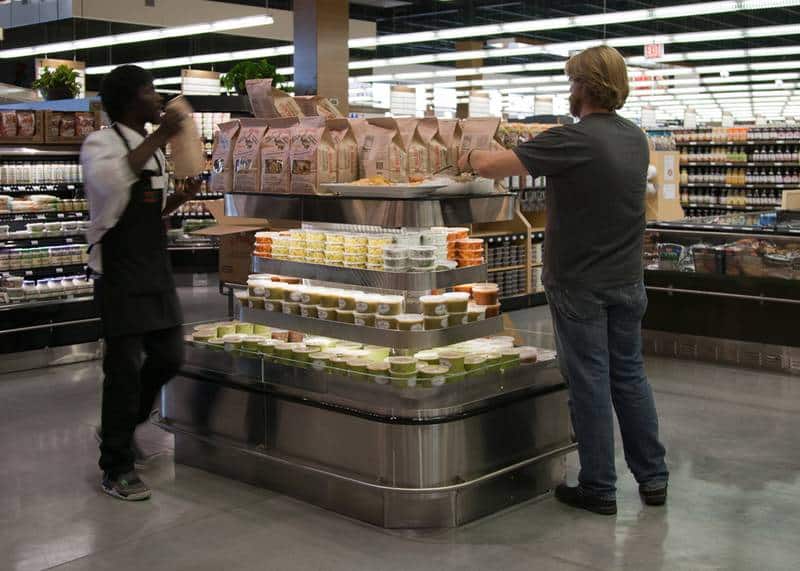

  • HVI-3-406R-display-case-photo-deli-8062.jpg

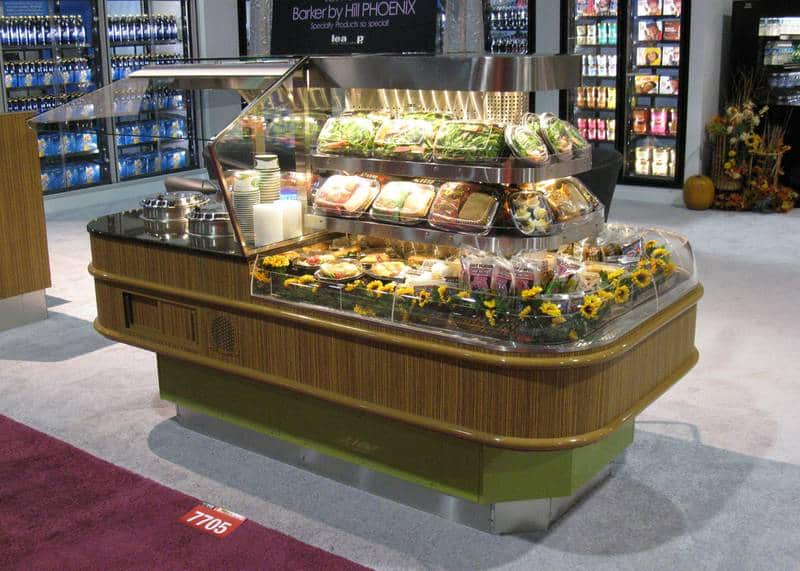

  • HVI-3-305R-Endcap-display-case-photo-deli-0001.jpg

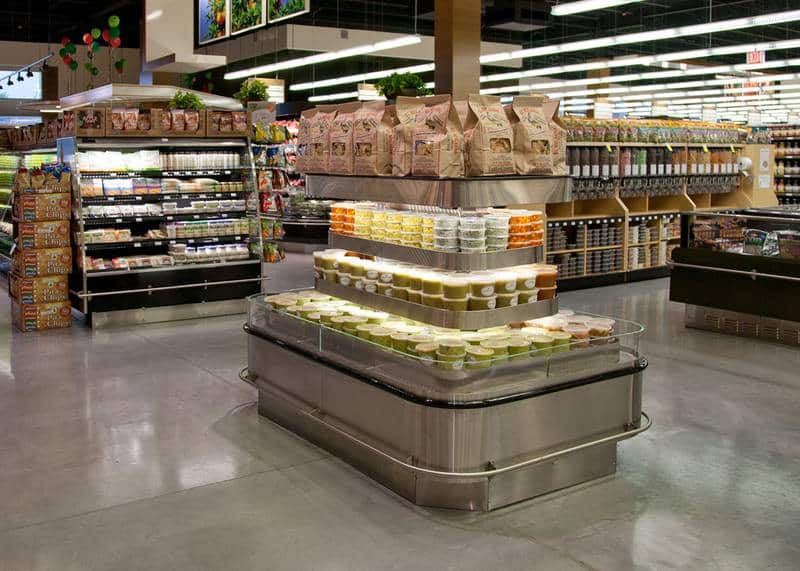

  • HVI-3-406R-display-case-photo-deli-8282.jpg
  • HVI-3-305-406sc-rad-small-format-product-page-hero.jpg

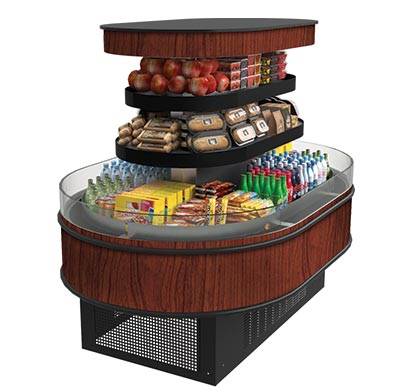

  • HVI-B-305-406sc-rad-product-page-selector-SelectCherry-11.jp...
  • HVI-3-406R_HVI-3-408R-CURVED-display-case-CAD-drawing.dwg
  • HVI-3-406R_HVI-3-408R-RADIUS-display-case-CAD-drawing.dwg

Installation Manuals

  • HVI-3-406R_HVI-3-408R-display-case-manual-v2.pdf

Accessories

  • Standard-Bumper-Color-Chart-Brochure.pdf
  • Standard-Paint-Color-Chart-Brochure-082823-v2.pdf

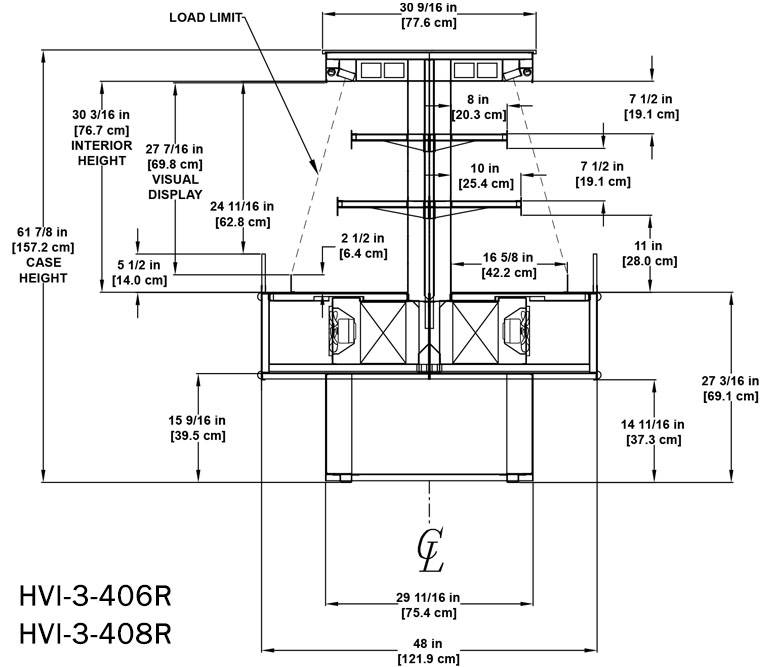

Cross Section

  • HVI-3-406R_HVI-3-408R-page-profile-rv1-v2.jpg

Sales Literature

  • HVI-3-406-408-display-case-sales-sheet-v3.pdf
  • Island Cases Category Brochure.pdf

Technical Reference

  • HVI-3-406R-408R-display-case-tech-reference-sheet-rv5.pdf
  • HVI-3-406S-display-case-tech-reference-sheet-rv5.pdf
  • HVI-3-406S-EC-display-case-tech-reference-sheet-rv3.pdf

Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.

Refrigerated Island Merchandiser

Hillphoenix HVI-3-406R/S Refrigerated Island Merchandiser for bakery, beverage, dairy, deli, and produce applications. This 4' wide island is a shop-around island available in a 6' case length with the option of remote or self-contained refrigeration.  Available with two rows of airflow shelving.  Also available in an 8' (HVI-3-408R) case length in the remote option only.  For an option with only one end cap and shopped from three sides, choose the HVI-3-406S-EC model.

Hillphoenix HVI-3-406R/S Refrigerated Island Merchandiser for bakery, beverage, dairy, deli, and produce applications. This 4' wide island is a shop-around island available in a 6' case length with the option of remote or self-contained refrigeration.  Available with two rows of airflow shelving.  Also available in an 8' (HVI-3-408R) case length in the remote option only.  For an option with only one end cap and shopped from three sides, choose the HVI-3-406S-EC model.

Less


Download OPEN FULL SCREEN
ADD TO DOWNLOAD LIST

Features & Benefits

  • Sled runner base construction.
  • Standard 61-7/8” H and 48” D.
  • 14-11/16” H painted metal base.
  • Flat front dieboard.
  • Painted metal exterior.
  • Stainless steel exterior trim.
  • Solid surface case top.
  • 5-1/2” H x 1/2” thick polished, straight die board plex.
  • Radius end caps.
  • Painted matte black metal interior and trim.
  • (1) row each 8” and 10” fixed flat painted metal airflow shelving.
  • Painted black metal, flat bottom deck with 2” metal product stop.
  • Clearvoyant® LED top lighting.
  • On/off light switch.
  • Energy efficient fans.
  • Solar digital thermometer.
  • Ballast electrical box location in base.
  • Remote DX refrigeration package.

Available Options

  • Remote length: 6’ with two end caps.
  • Self-contained length: 6’ with two end caps (HVI-3-406S) or one end cap (HVI-3-406S-EC).
  • Exterior finishes Exterior grade laminate or stainless steel.
  • White or stainless steel case interior.
  • Stainless steel base trim.
  • Shelf options:  lighted, product stops, and price tag molding.
  • Curved endcaps.
  • Cart bumper.
  • Leveling pads.
  • 6’ cord and plug on HVI-3-406S self-contained case.
  • Remote glycol or CO2 refrigeration packages.

Attributes

  • Case Depth / Footprint: 4'
  • Case Height Standard: 61-7/8"
  • Case Length: 6'
  • Case Temp: Medium-Temp
  • Case Type: Island, Multi-Deck, Remote, Self-Contained, Self-Service
  • Department: Bakery, Beverage, Dairy, Deli, General, Produce
  • Interior Depth: 12"
  • Interior Height: 28-11/16"
  • Other Models: HVI-3-408R, HVI-4-406R, HVI-4-406S and HVI-4-408R
  • Refrigerated Volume: -
  • Remote / Self-Contained: Remote or Self-Contained
  • Retail Types: Dollar Discount, Food Service, Mass Merchandise, Membership & Warehouse, Supermarket
  • Small Format: Small Format
