PFI-R-5

PFI-R-5

Self-Service Multi-Deck

Hillphoenix PFI-R-5 Multi-Deck, Self-Service, Refrigerated Island Display. Designed for prepackaged bakery, beverage, dairy, deli and produce applications in a 5' wide depth. Available in several case lengths with mitered end caps.

Hillphoenix PFI-R-5 Multi-Deck, Self-Service, Refrigerated Island Display. Designed for prepackaged bakery, beverage, dairy, deli and produce applications in a 5' wide depth. Available in several case lengths with mitered end caps.

Less

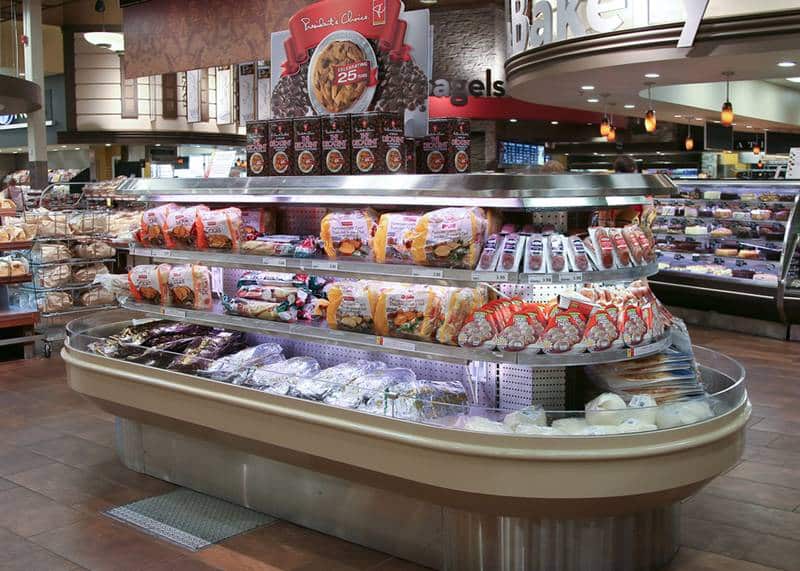

  • PFI-R-5-display-case-photo-deli-radius-9754.jpg

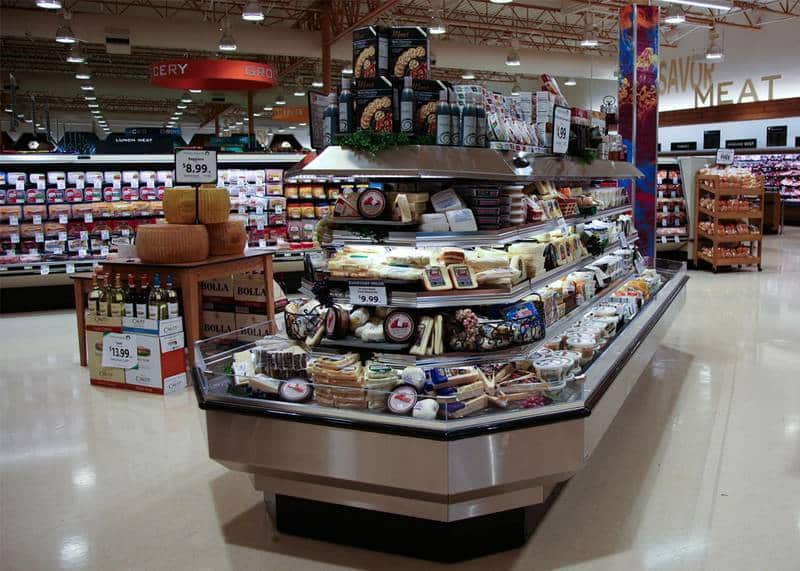

  • PFI-R-5-display-case-photo-deli-miter-9125.jpg

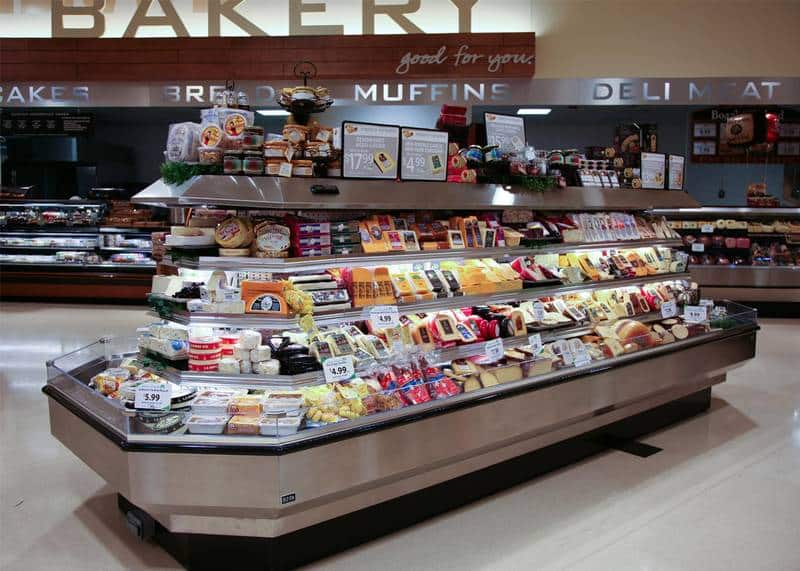

  • PFI-R-5-display-case-photo-deli-miter-9122.jpg

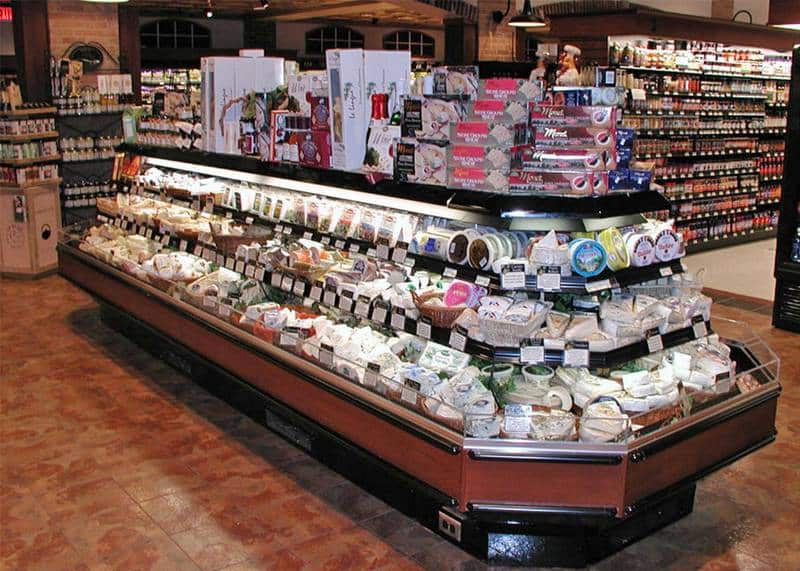

  • PFI-R-5-display-case-photo-deli-miter-0004.jpg

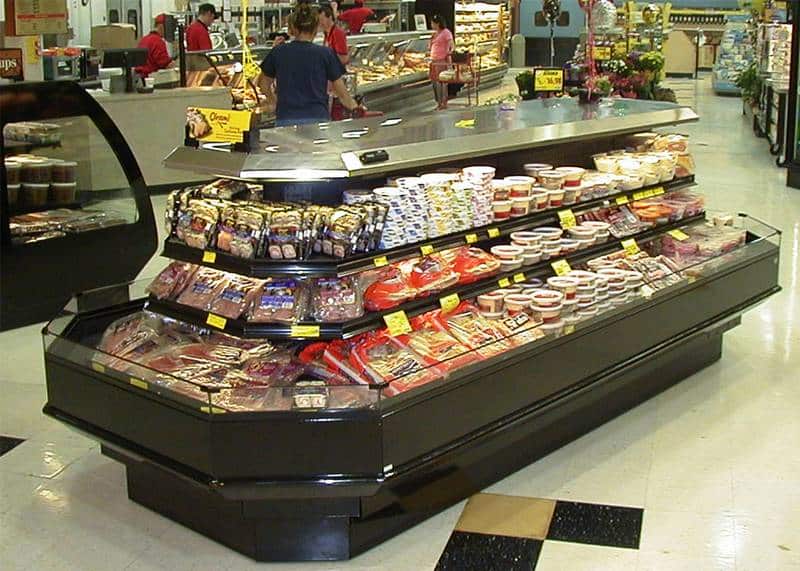

  • PFI-R-5-display-case-photo-deli-miter-0001.jpg

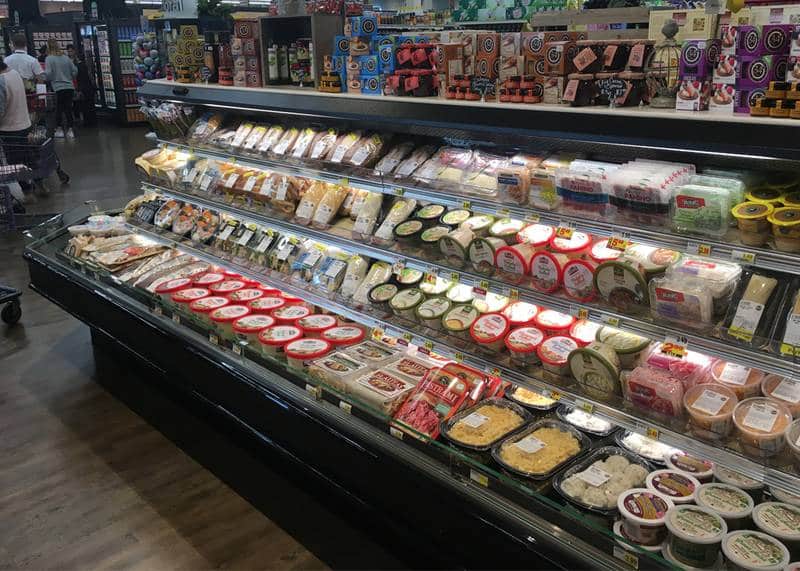

  • PFI-R-5-display-case-photo-deli-miter-2283-1.jpg

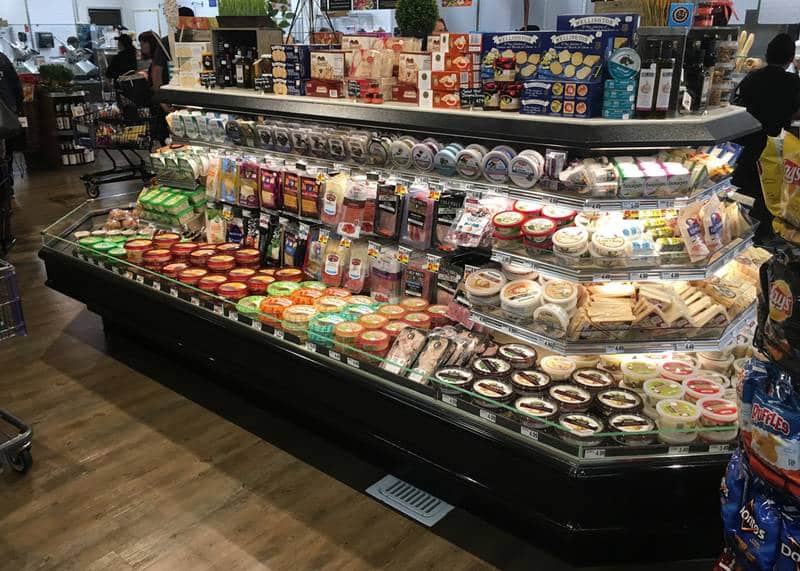

  • PFI-R-5-display-case-photo-deli-miter-2696-1.jpg
  • PFI-5R_54-display-case-CAD-drawing.dwg
  • PFI-5R_48-display-case-CAD-drawing.dwg

Installation Manuals

  • PFI-R-5-display-case-manual-rv1.pdf

Accessories

  • Standard-Bumper-Color-Chart-Brochure.pdf
  • Standard-Paint-Color-Chart-Brochure-082823-v2.pdf
  • PFI-PC.zip

Cross Section

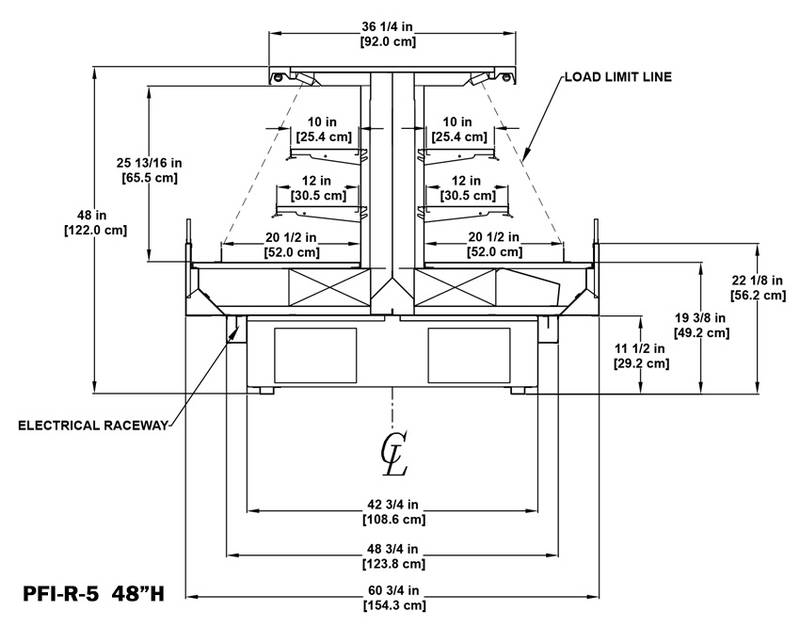

  • PFI-R-5-48H-page-profile-rv1.jpg

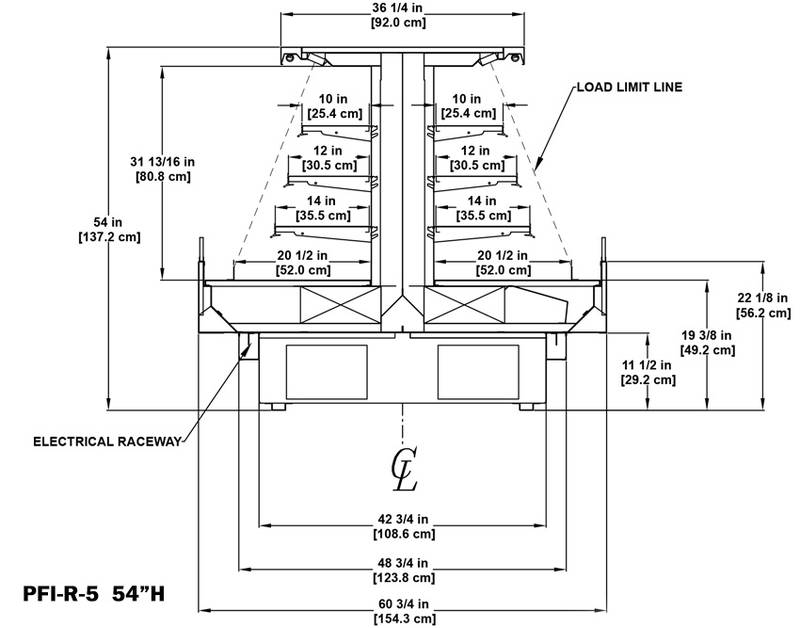

  • PFI-R-5-54H-page-profile-rv1.jpg

Sales Literature

  • PFI-R-5-display-case-sales-sheet-v1.pdf
  • PF-series-sales-sheet.pdf

Technical Reference

  • PFI-5-48-R-display-case-tech-reference-sheet-rv4.pdf
  • PFI-5-54-R-display-case-tech-reference-sheet-rv4.pdf

Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.



Self-Service Multi-Deck

Hillphoenix PFI-R-5 Multi-Deck, Self-Service, Refrigerated Island Display. Designed for prepackaged bakery, beverage, dairy, deli and produce applications in a 5' wide depth. Available in several case lengths with mitered end caps.

Hillphoenix PFI-R-5 Multi-Deck, Self-Service, Refrigerated Island Display. Designed for prepackaged bakery, beverage, dairy, deli and produce applications in a 5' wide depth. Available in several case lengths with mitered end caps.

Less

Features & Benefits

  • Sled runner base construction.
  • Standard 54” H and 60-3/4” D.
  • 11-1/2” H stainless steel toekick, front and sides.
  • Flat front profile.
  • Outside back and 36-1/4” D case top painted to match exterior.
  • Painted metal exterior.
  • Stainless steel exterior trim.
  • 3-1/2” H x 1/2” thick polished, straight die board plex.
  • Painted matte black metal interior and trim.
  • (1) row each 10”, 12”, and 14” adjustable flat painted metal shelving.
  • Shelf position:  specify upon ordering either flat or angled.
  • Painted black metal, flat bottom deck with 2” metal product stop.
  • Clearvoyant® LED top lighting.
  • On/off light switch.
  • Energy efficient fans.
  • Solar digital thermometer.
  • Front electrical raceway location.
  • Remote DX refrigeration package.

Available Options

  • Remote lengths: 8’, 9’, 10’, 11’, 12’, 13’, 14’, 15’, 16’, and 17’.
  • Alternate toekick height: 7-13/16” H with no change to overall height.
  • Alternate case heights: 48” with (1) row each 10” and 12” shelves.
  • Alternate case depth:  7'.
  • 45-degree front dieboard.
  • Radius dieboard and base on end caps.
  • Exterior finishes Exterior grade laminate or stainless steel.
  • Solid surface, stainless steel, or stone case top.
  • White or stainless steel case interior.
  • Shelf options:  lighted, product stops, and price tag molding.
  • Solid or full-view end panel with mirror-polished, stainless steel interior for single end cap island configuration.
  • Cart bumper mounted on the front panel of the case.
  • Ballast tray for electrical.
  • Remote glycol or CO2 refrigeration packages.

Attributes

  • Alternate Heights: 48"
  • Case Depth / Footprint: 60-3/4"
  • Case Height Standard: 54"
  • Case Length: 8', 9', 10', 11', 12', 13', and 14'
  • Case Temp: Medium-Temp
  • Case Type: Island, Multi-Deck, Remote, Self-Service
  • Department: Bakery, Beverage, Deli, General, Produce
  • Door Type: -
  • Interior Depth: 20-1/2"
  • Interior Height: 31-13/16"
  • Other Models: Bakery, beverage, dairy, deli and produce. ALSO consider O2IM, O3IM, ON3IMO3EIF-NRG and O3IP
  • Refrigerated Volume: -
  • Remote / Self-Contained: Remote
  • Retail Types: Food Service, Mass Merchandise, Membership & Warehouse, Supermarket
