PF
Self-Service Multi-Deck

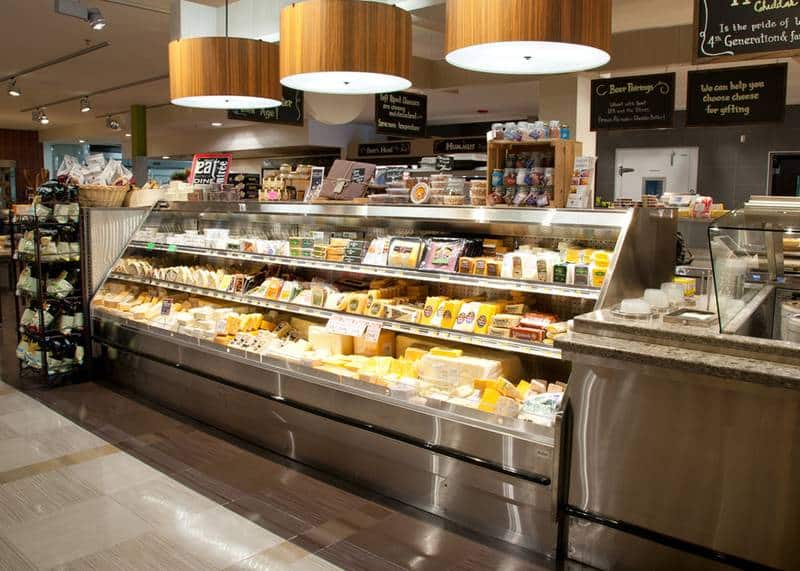

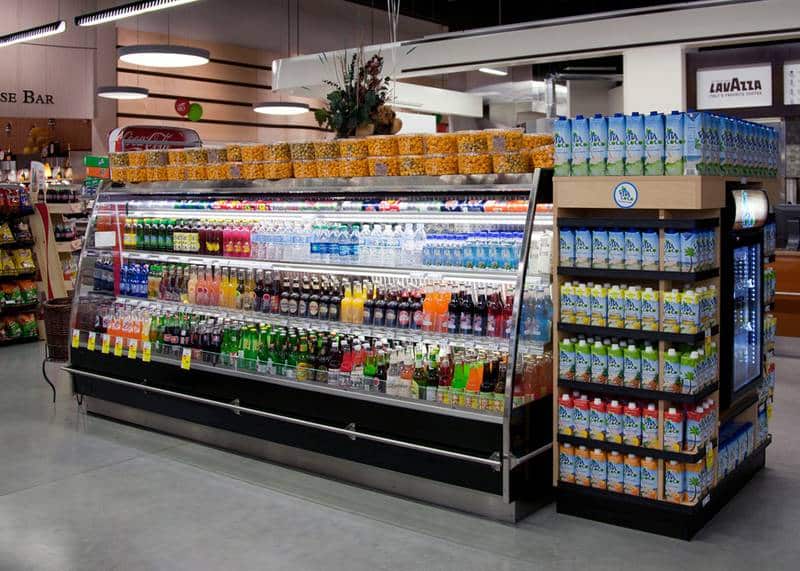

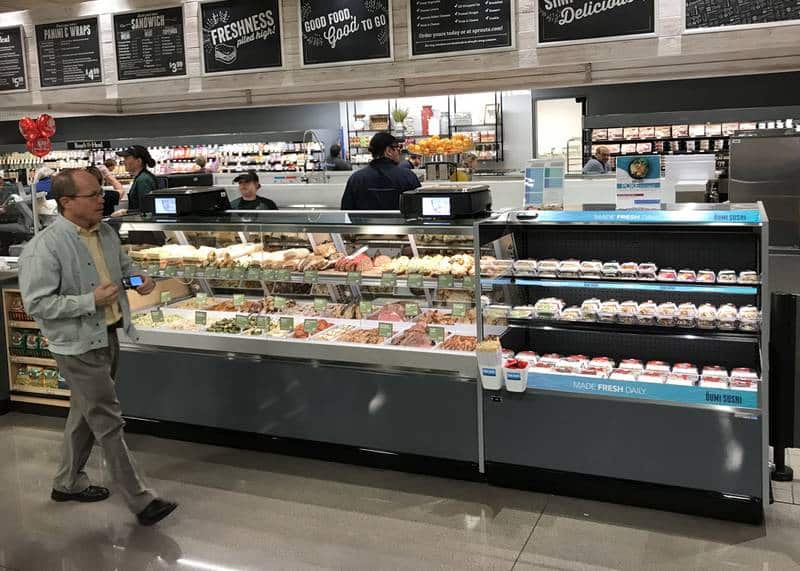

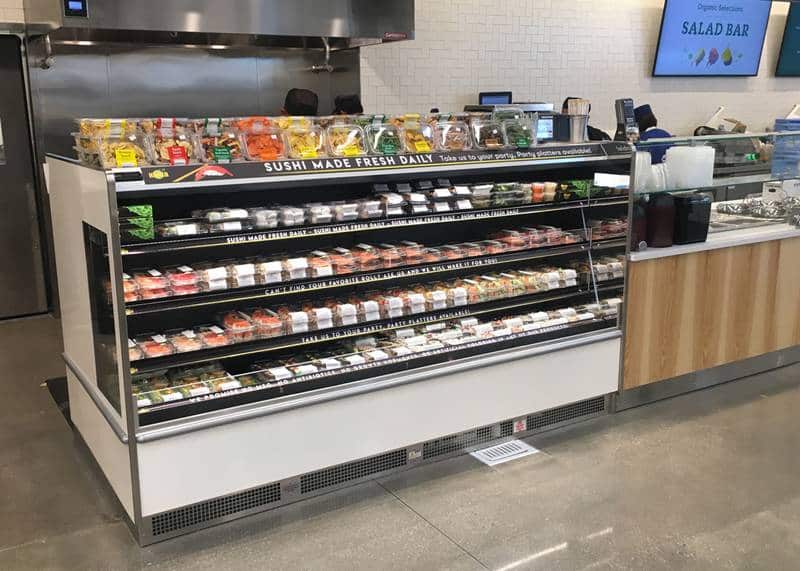

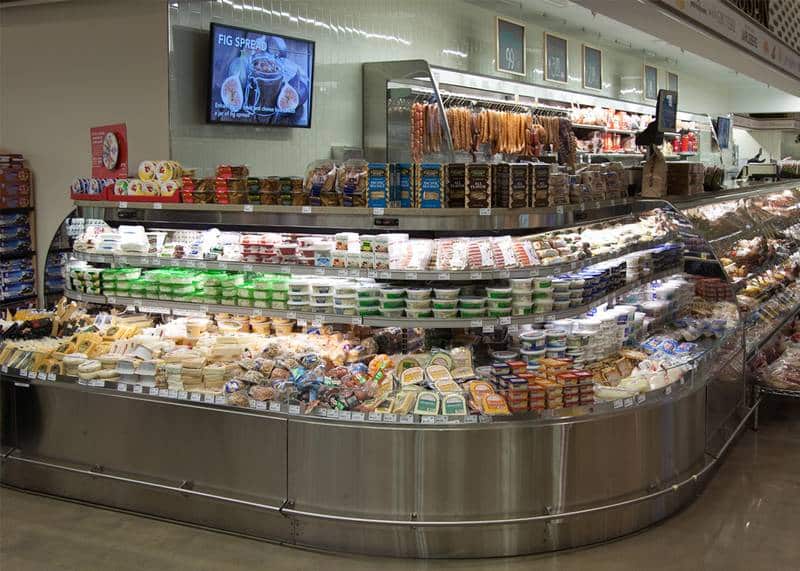

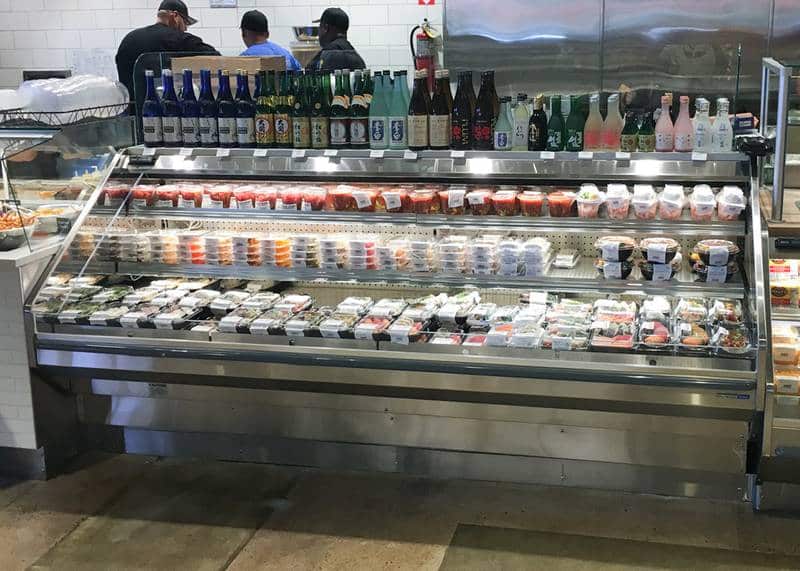

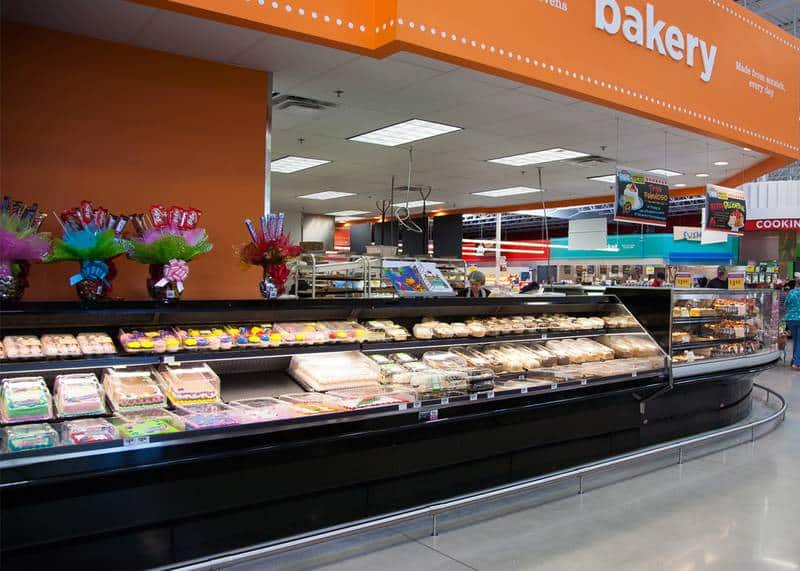

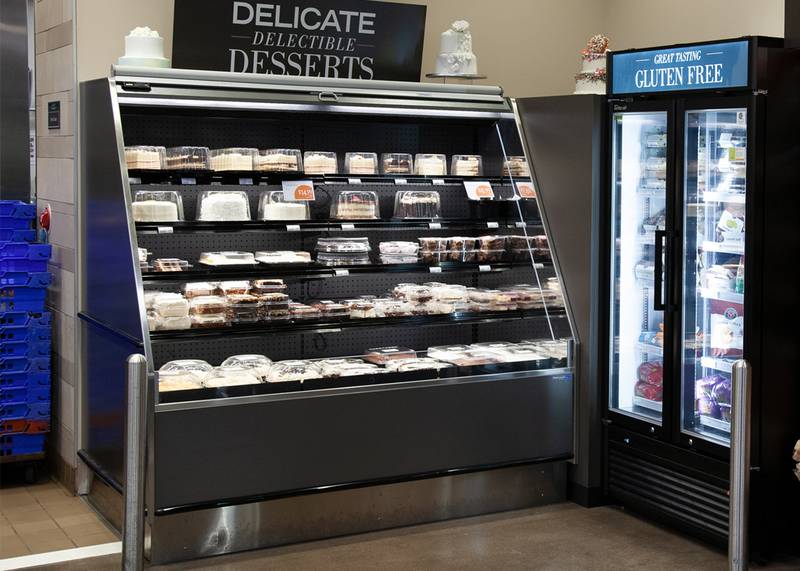

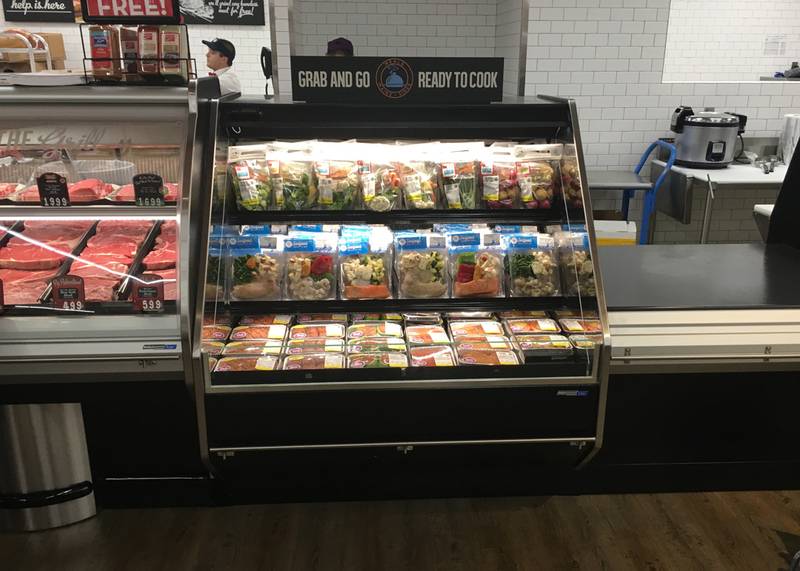

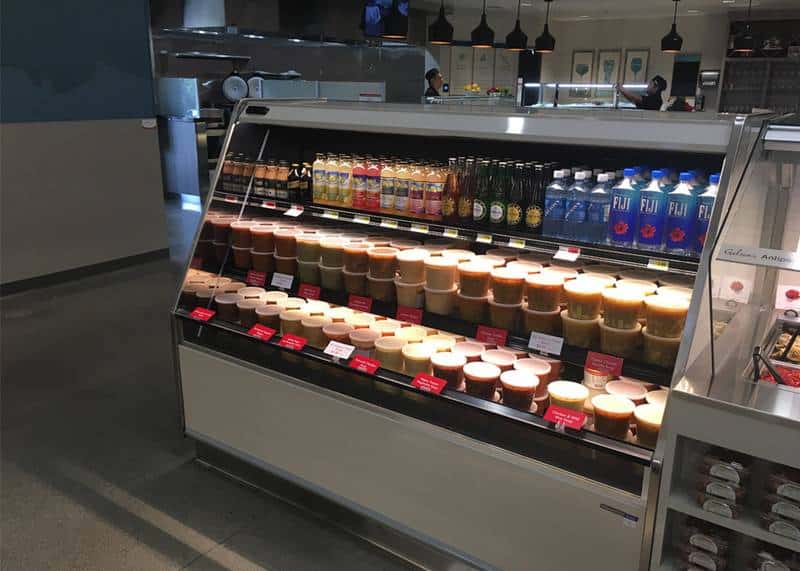

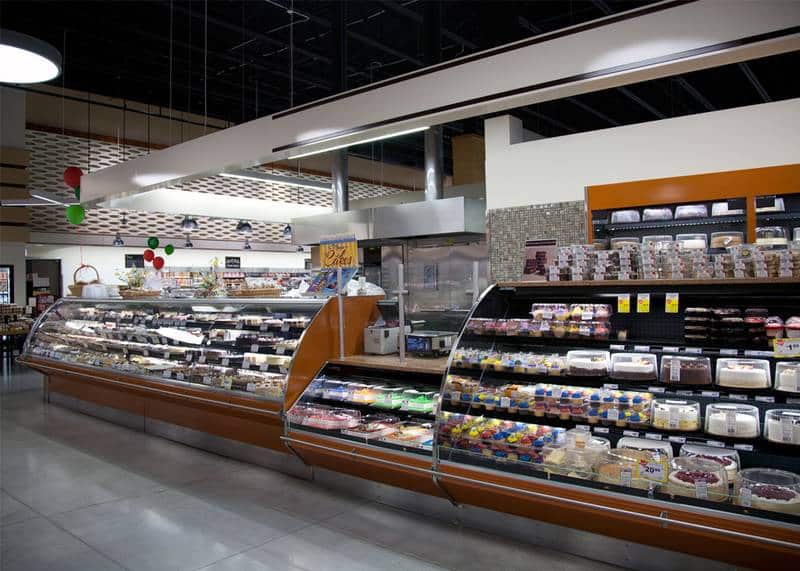

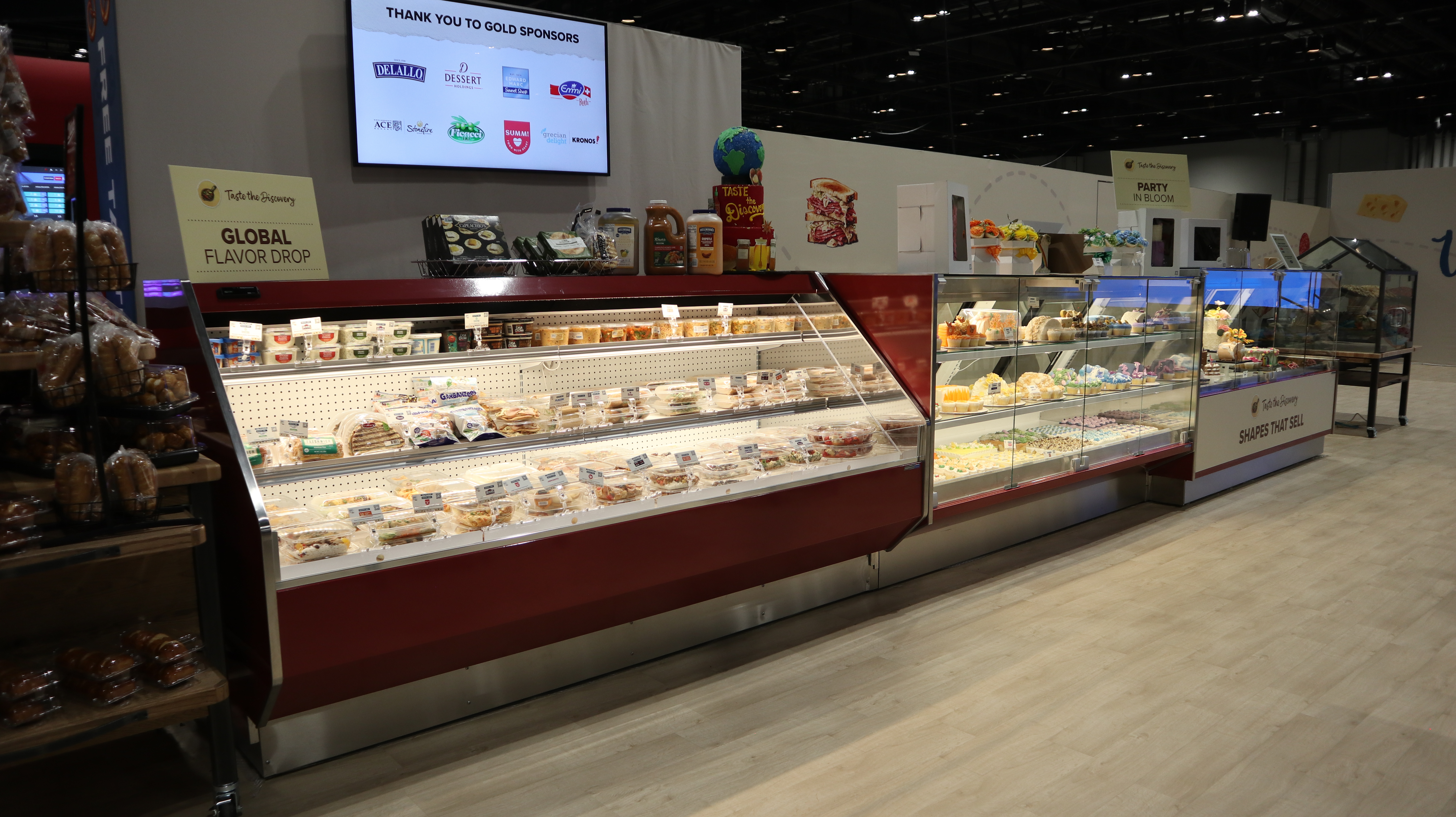

Hillphoenix PF Multi-Deck, Refrigerated, Self-Service Display Case. Designed for bakery, beverage, dairy and deli applications. Merchandise with up to two rows of shelves. The front profile lines up with the BMD series service cases, and the dome-style PTD and SD series to create a continuous departmental look. Available in several case lengths and in remote or self-contained refrigeration.
Hillphoenix PF Multi-Deck, Refrigerated, Self-Service Display Case. Designed for bakery, beverage, dairy and deli applications. Merchandise with up to two rows of shelves. The front profile lines up with the BMD series service cases, and the dome-style PTD and SD series to create a continuous departmental look. Available in several case lengths and in remote or self-contained refrigeration.
Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice.
- Remote refrigeration designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
- Self-contained refrigeration designed for performance in store environments where temperature and humidity do not exceed 80° F and 55% R.H. Certified to UL 60335-2-89 and ANSI/NSF Standard 7.
Self-Service Multi-Deck
Hillphoenix PF Multi-Deck, Refrigerated, Self-Service Display Case. Designed for bakery, beverage, dairy and deli applications. Merchandise with up to two rows of shelves. The front profile lines up with the BMD series service cases, and the dome-style PTD and SD series to create a continuous departmental look. Available in several case lengths and in remote or self-contained refrigeration.
Hillphoenix PF Multi-Deck, Refrigerated, Self-Service Display Case. Designed for bakery, beverage, dairy and deli applications. Merchandise with up to two rows of shelves. The front profile lines up with the BMD series service cases, and the dome-style PTD and SD series to create a continuous departmental look. Available in several case lengths and in remote or self-contained refrigeration.
Features & Benefits
- Sled runner base construction.
- Remote: 6-5/16” H stainless steel toekick, front and sides.
- Self-contained: 18-3/16" pained metal base, front, and sides
- Angled front profile.
- Outside back unfinished galvaneal.
- Case top painted to match the exterior.
- Painted metal exterior and trim.
- 5-1/2”H x 1/2” thick polished, straight die board plex.
- Painted metal interior and trim.
- Adjustable painted metal shelving.
- Separate on/off light switch located on interior top.
- Painted metal, fixed, flat bottom deck.
- Left and right solid painted metal end panels.
- Energy-efficient fans.
- Solar digital thermometer.
- Remote DX or self-contained refrigeration packages.
Available Options
- Remote lengths: 4’, 6’, 8’, 10’, and 12’.
- 22.5°, 45°, and 90° Interior or exterior wedges on remote option only.

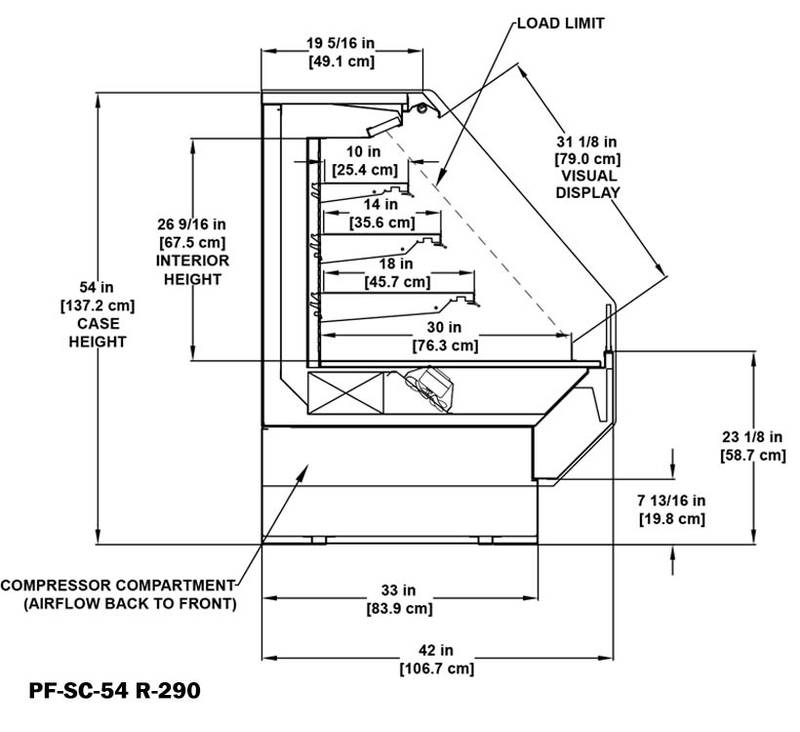

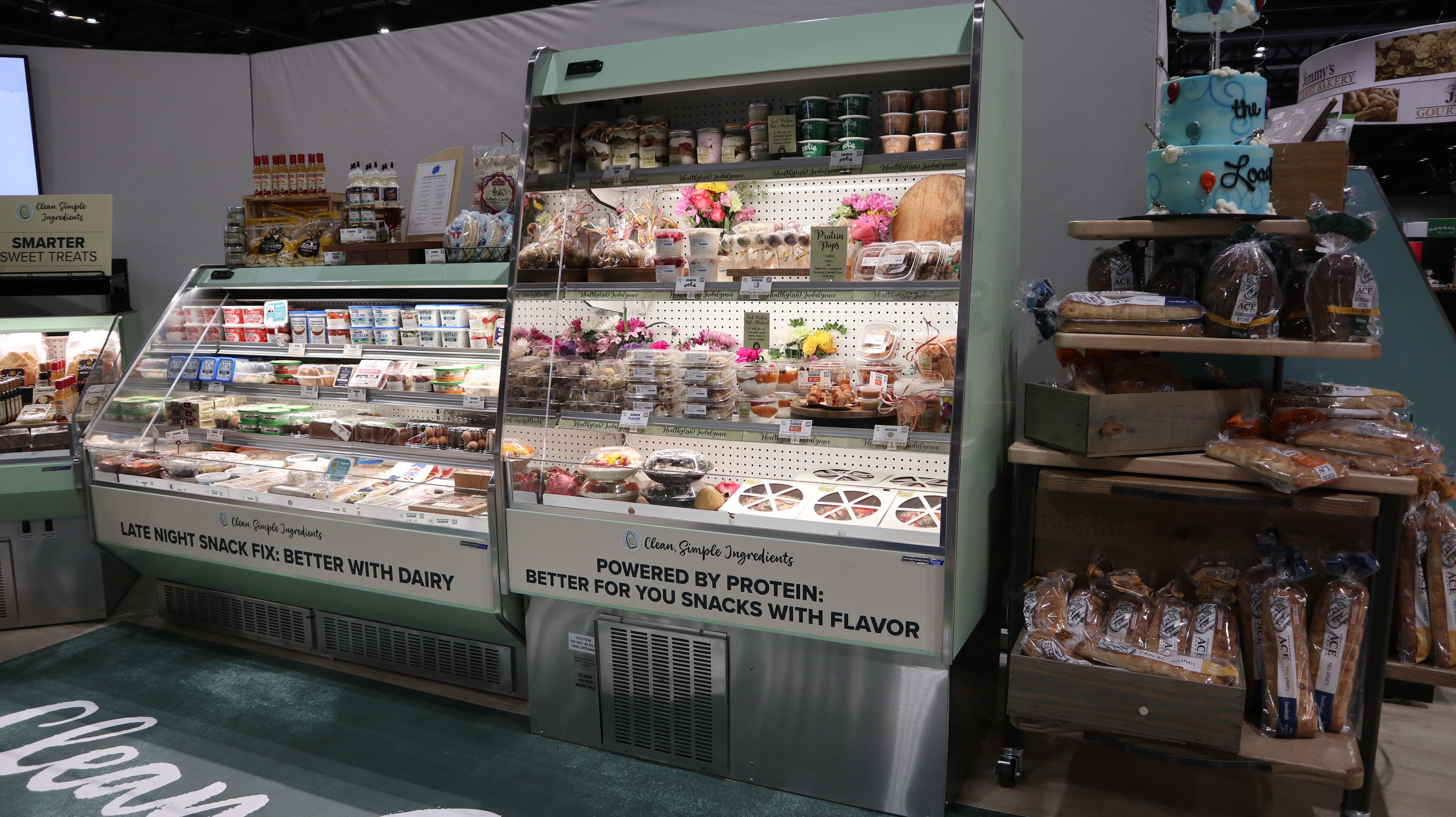

- Self-contained lengths with R-290 refrigerant: 3', 4’ in 48", 54" & 72"H. 6’ length in 48" & 54” H only. Refer to the PF-R-290 sales sheet for more information.
- Alternate toekick height: 7-13/16” H with no change to overall height for remote option.
- Alternate case heights for remote refrigeration: 48”, 54”, and 72”.
- Straight front profile.
- Exterior finishes: exterior grade laminate, stainless steel or wood cladding.
- Exterior back panel: painted metal or stainless.
- Case top: solid surface, butcher block, laminate, poly, or stone finish.
- White or stainless steel case interior.
- Clearvoyant® LED top lighting.
- Dual top lighting requires a 2” case top extension for remote option.
- Shelf options: lighted, product stops, additional shelves and price tag molding.
- Nose light for remote option (case grows 2” in depth).
- ISO outlet/CON outlets for remote option (specify vertical or horizontal placement on rear).
- Night cover: retractable roller shade or polycarbonate panel.
- End panels: framed glass, full view glass pack or thermal divider.
- Cart bumper mounted on the front panel of the case: single or dual row.
- Cart bumper added to end panels.
- Remote glycol or CO2 refrigeration packages.
Attributes
- Alternate Heights: 48", 54", and 72"
- Case Depth / Footprint: 42"

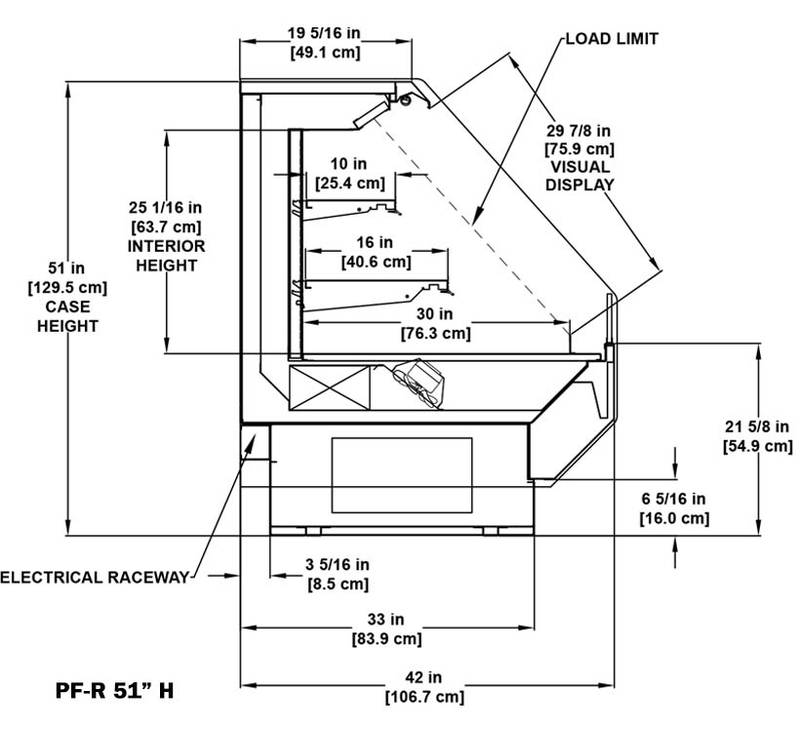

- Case Height Standard: Remote: 51" ; Self-contained: 48", 54" and 72"
- Case Length: Remote: 4’, 6’, 8’, 10', and 12; Self-contained 3', 4', and 6'
- Case Temp: Medium-Temp
- Case Type: Multi-Deck, Remote, Self-Service, Self-Contained, Propane
- Department: Bakery, Beverage, Deli, General, Dairy
- Door Type: -
- Interior Depth: remote: 30"; self-contained: 20-9/16", 26-9/16" and 44-9/16"
- Interior Height: See X-sections or sales sheets
- Other Models: Also consider the DLPF-R, O2UM-NRG, O2.5UM-NRG, O3UM-NRG and O3UD-NRG
- Product Type: Specialty Cases
- Refrigerated Volume: -
- Remote / Self-Contained: Remote and Self-Contained
- Retail Types: Dollar Discount, Drug Store, Food Service, Mass Merchandise, Membership & Warehouse, Supermarket
