Clarity Reach-In Merchandisers

Medium and Low-Temperature Reach-In Display Cases

Hillphoenix® is the industry leader that supermarkets, super centers, convenience stores and drug stores rely upon for dependable, efficient refrigeration solutions. The CLARITY line of Merchandising Display Case Systems is a prime example. Multiple sizes and configurations, more frame and door pairings, all combine to create unique and compelling shopping experiences for every refrigeration application.

Clarity Merchandisers are perfect for both LT (low-temperature) and MT (medium-temperature) applications. CLARITY brings a new versatility to store merchandisers by giving them a wider choice of fitments and customizing options. Multiple sizes and configurations, more frame and door pairings, all combine to create unique and compelling shopping experiences for every refrigeration application.

DISPLAY CASES

V Series

These cases combine the aesthetic of full viewing through a wall of glass that enhances merchandising and provides customers with easy access to the top shelf.

Application

  • Low and medium temperature for beverage, dairy, deli, floral, frozen food and ice cream.

Best For

  • Creating walls of merchandise.
  • Contemporary store aesthetics.
  • Restricted floor space with maximum pack-out & facings.

Features and Benefits

  • Up to 79” tall door coupled with 8” ultra-low front, maximizes product visibility and merchandising versatility for all applications.
  • Large pack-out: Combination of the largest shelf & interior space.
  • 24” (narrow version) or 27” (standard version) shelves from bottom to top without any planogram restrictions.
  • Bottom-located refrigeration components facilitate serviceability and allow for full top-shelf merchandising with 66” or 72” interior height.
  • Medium temp and low temp models match for consistency in store design.
  • Provides the product viewing benefits of top coil case design in bottom coil case construction.
  • For a wall of Infinity edge glass doors, choose the Infinity

O Series

These cases combine the aesthetic of full viewing through a wall of glass that enhances merchandising and provides customers with easy access to the top shelf.

Application

  • Low and medium temperature for beverage, dairy, deli, floral, frozen food, ice cream and meat.

Best For

  • Traditional formats.
  • Classic Origin design.
  • Matching Origin case models to carry throughout the store.

Features and Benefits

  • Large pack-out capabilities with standard depth cases and 27” shelves.
  • Exclusive 6-door case means one less unit in a typical lineup. that delivers installation, operational and maintenance benefits with one less set of connections and one less unit that has to be handled.
  • All applications: Dairy, Meat, Deli, Produce, Beverage, Beer, Frozen Food and Ice Cream.
  • Matching medium and low temp lineup options.
  • Up to 64” interior merchandising height for optimal planogram design and product facings.
  • Standard, narrow, high and back-to-back models are available with a variety of customer-specific configurations.
  • Rear-load options available with the ORBR.

J Series

J Series self-contained cases give you options for smaller solutions without giving up big time performance.

Application

  • Low and medium temperature for beverage, dairy, deli, frozen food, and ice cream.

Best For

  • Self Contained applications.
  • Remodels w/ limited access to refrigeration.
  • Small, restricted spaces.

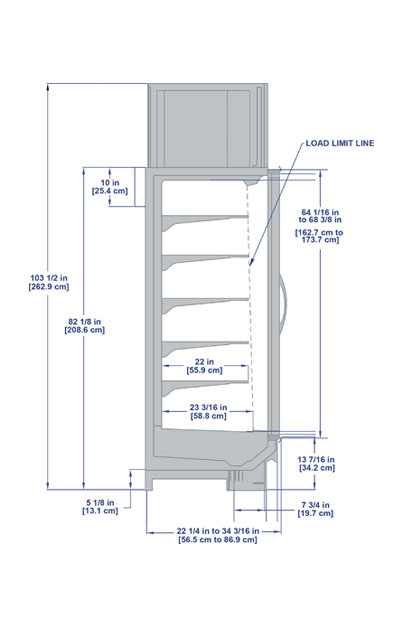

Field Install Profile

Features and Benefits

  • Fits through 80” door.
  • Bottom-located refrigeration components facilitate serviceability and allow for full top-shelf merchandising.
  • Energy-efficient Synerg-E® technology  provides uniform case performance and lower average product temperatures.
  • 63-3/4” front facings with no planogram restrictions.
  • MT & LT for lineup cases seamlessly for a flawless in-store experience.
  • Large 22” shelves allow you to maximize display capacity.
  • Field-installed cases (JNRZHSA, JNRZHSA), have modular constructionto allow entry through a restricted space, to be assembled in your store. Top -mounted Field-installed condensing units feature quickconnect refrigeration couplings for flexibility. Condensing units, drain components, and evaporator pans are installed on-site as plug and play components requiring minimal assembly. The cases incorporate a special base frame option allowing it to fit through an 80” door. A loading dock is not required because the design incorporates a special low base frame on wheels.

DOORS

These cases combine the aesthetic of full viewing through a wall of glass that enhances merchandising and provides customers with easy access to the top shelf.

Vista C

Medium-Temperature Door

Both energy savings and exceptional product visibility come as part of the package with the Vista C door.

Clarity Door Vista C Close Up
Vista C - Both energy savings and exceptional product visibility come as part of the package with the Vista C door.
Vista Elite Display Case Door Zero Energy
Clarity-brochure-icons-metal-french
Clarity Display Case 2 Pane Door
Clarity Display Case Standard Door

Features and Benefits

  • Energy-free doors deliver optimal cost savings.
  • The design makes the most of thin 0.88”, 2-pane, argon-filled, non-heated glass pack and heat reflective Low-E glass.
  • Narrow, full-wrap aluminum door rails, thin Vista handle and no center mullions all improve shoppers’ visibility and access.
  • Hold-open feature allows easy stocking and shoppers easy access to merchandise.
  • Door stop feature limits how far the door opens to minimize impact with adjacent doors and shoppers.
  • Available in single or French (Bi-swing) door options.
  • Energy-saving LED

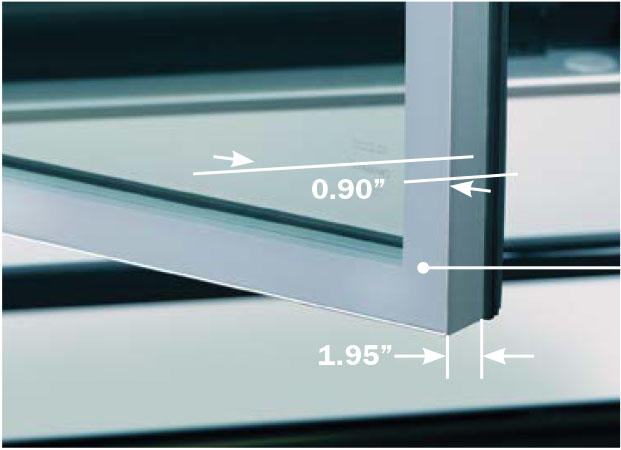

Infinity 90

Medium-Temperature & Low-Temperature Door

A contemporary, all-glass design incorporates an infinity edge for a superior, unobstructed display.

Clarity Door Infinity 90 Close Up
Infinity 90 - A contemporary, all-glass design incorporates an infinity edge for a superior, unobstructed display.
Vista Elite Display Case Door Zero Energy
Clarity Doors Energy Efficient

Features and Benefits

  • Robust aluminum door rails ensure years of reliable performance.
  • A slim 0.90” masking provides a stylish all-glass design with a
  • large viewing area.
  • 3-pane 1.95” thick glass pack.
  • Hold-open feature allows easy stocking & shoppers’ easy access to merchandise.
  • Door stop feature limits how far the door opens to minimize impact with adjacent doors and shoppers.
  • Energy-saving LED lights for enhanced illumination are an available option.
  • Available in single or French (Bi-swing) door options.

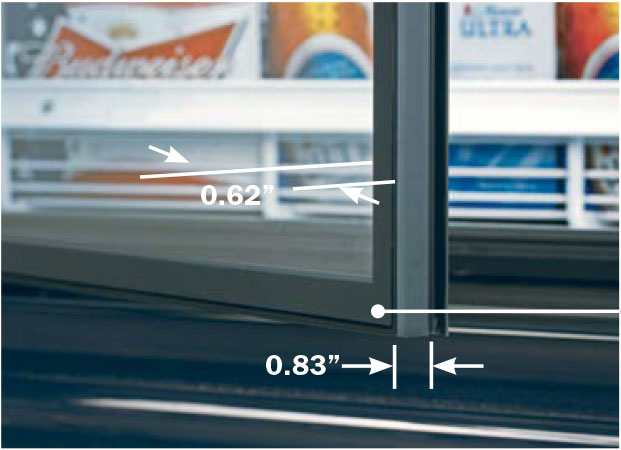

Infinity 60

Medium-Temperature

This door’s “all-glass, infinity edge design” maximizes product visibility for a friendlier, more accessible shopper experience.

Clarity Door Infinity 60 Close Up
Infinity 60 - This door’s “all-glass, infinity edge design” maximizes product visibility for a friendlier, more accessible shopper experience.
Vista Elite Display Case Door Zero Energy
Clarity Display Case 2 Pane Door

Features and Benefits

  • Energy-free, zero heat door.
  • Polymer door rail design offers additional energy effi ciency.
  • 2-pane, 0.62” thick glass pack.
  • Hold-open feature allows easy stocking and shoppers’ easy access to all of the merchandise.
  • Ultra-thin 0.62” masking all-glass doors, no center mullion and thin Vista handle increase product visibility and shopper access to merchandise.
  • Door stop feature limits how far the door opens to minimize impact with adjacent doors and shoppers.
  • Available in single or French (Bi-swing) door options.
  • Energy-saving LED lights for enhanced illumination are an available option.

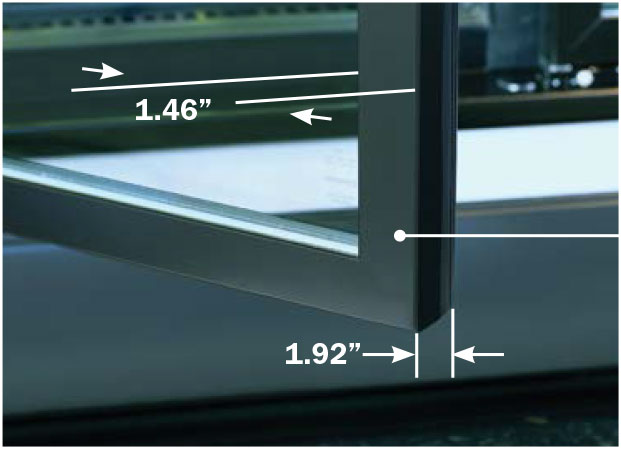

ELM H

Low-Temperature

The perfect, energy-efficient door with smooth rail aesthetics.

Clarity Door ELM H Close Up
ELM H - The perfect, energy-efficient door with smooth rail aesthetics.
Clarity Doors Energy Efficient
Clarity Door 3 Pane
Clarity Display Case Standard Door

Features and Benefits

  • Energy-free, zero heat door.
  • Polymer door rail design offers additional energy effi ciency.
  • 2-pane, 0.62” thick glass pack.
  • Hold-open feature allows easy stocking and shoppers’ easy access to all of the merchandise.
  • Ultra-thin 0.62” masking all-glass doors, no center mullion and thin Vista handle increase product visibility and shopper access to merchandise.
  • Door stop feature limits how far the door opens to minimize impact with adjacent doors and shoppers.
  • Available in single or French (Bi-swing) door options.
  • Energy-saving LED lights for enhanced illumination are an available option.

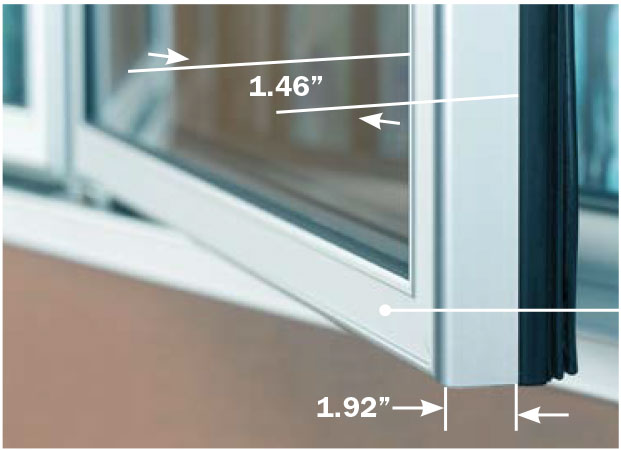

ELM D

Medium-Temperature & Low-Temperature

An energy-saving door with enhanced visibility that offers years of reliable performance.

Clarity Door ELM D Close Up
ELM D - An energy-saving door with enhanced visibility that offers years of reliable performance.
Vista Elite Display Case Door Zero Energy
Clarity Doors Energy Efficient
Clarity Display Case Standard Door
Clarity Door 3 Pane

Features and Benefits

  • 1.25” thick, 3-pane, argon gas-fi lled glass pack with heat-reflective Low-E glass.
  • Decorative door rail 1.46” wide aluminum door rails enhance product visibility.
  • Hold-open feature allows for easy stocking and shoppers’ easy access to all of the merchandise.
  • Door stop feature minimizes impact with adjacent doors and shoppers.
  • Magnetic door gasket for tight seals.
  • Optional anti-fog coating

Frame & Door Options Guide

Click image to enlarge

Medium-Temperature

Low-Temperature

DOOR OPTIONS

Customize your Reach-In to meet your energy needs, and pick the perfect handle and finishes to match your store.

Door Options Guide

Click image to enlarge

LIGHTING

Optimax LED Vertical Mullion Lighting

Frame & Door Options

Optimax Series LED Vertical Mullion Lighting makes your merchandise “pop” with superior illuminance, even uniformity, and color saturation. This displays the freshness of the products and entices the shopper to buy more products.



Features and Benefits

  • Vertical Mullion Reach-In Case Lighting and optic packages designed for both single swing and bi-swing (French) door applications.
  • High color saturation with natural white light color.
  • Industry-leading efficiency, up to 120 Lumens/Watt.
  • 100,000-hour L70 life cycle for long-term reliability.
  • 24V constant-voltage power supply.
  • 94 CRI.
  • IP65.
  • Available in 3500K or 4000K
Clearvoyant LED Horizontal Lighting

LED Horizontal Lighting

Clearvoyant LEDs brilliantly light products with natural color saturation without creating hotspots or shadows with the use of a frosted lens, adjustable fixture and expertly-designed lights designed specifically for the application.

Features and Benefits

  • Horizontal LEDs designed for use in all Hillphoenix open case models and select door models for case illumination and product shelf lighting.
  • Variable angle adjustment with positive detents for tuning the illumination on products.
  • Diffused lens for ease on customers’ eyes while reducing hot spots.
  • Optimized lighting uniformity eliminates shadows.
  • CRI ≥93 with a high R9.
  • High color saturation across all color spectrums.
  • L85 rating of 60,000 hours.
  • 24VDC for increased safety and reliability.
  • UL, NSF, IP65, DLC listings.
  • Available in 3000K, 3500K or 4000K
