QCD-R

QCD-R

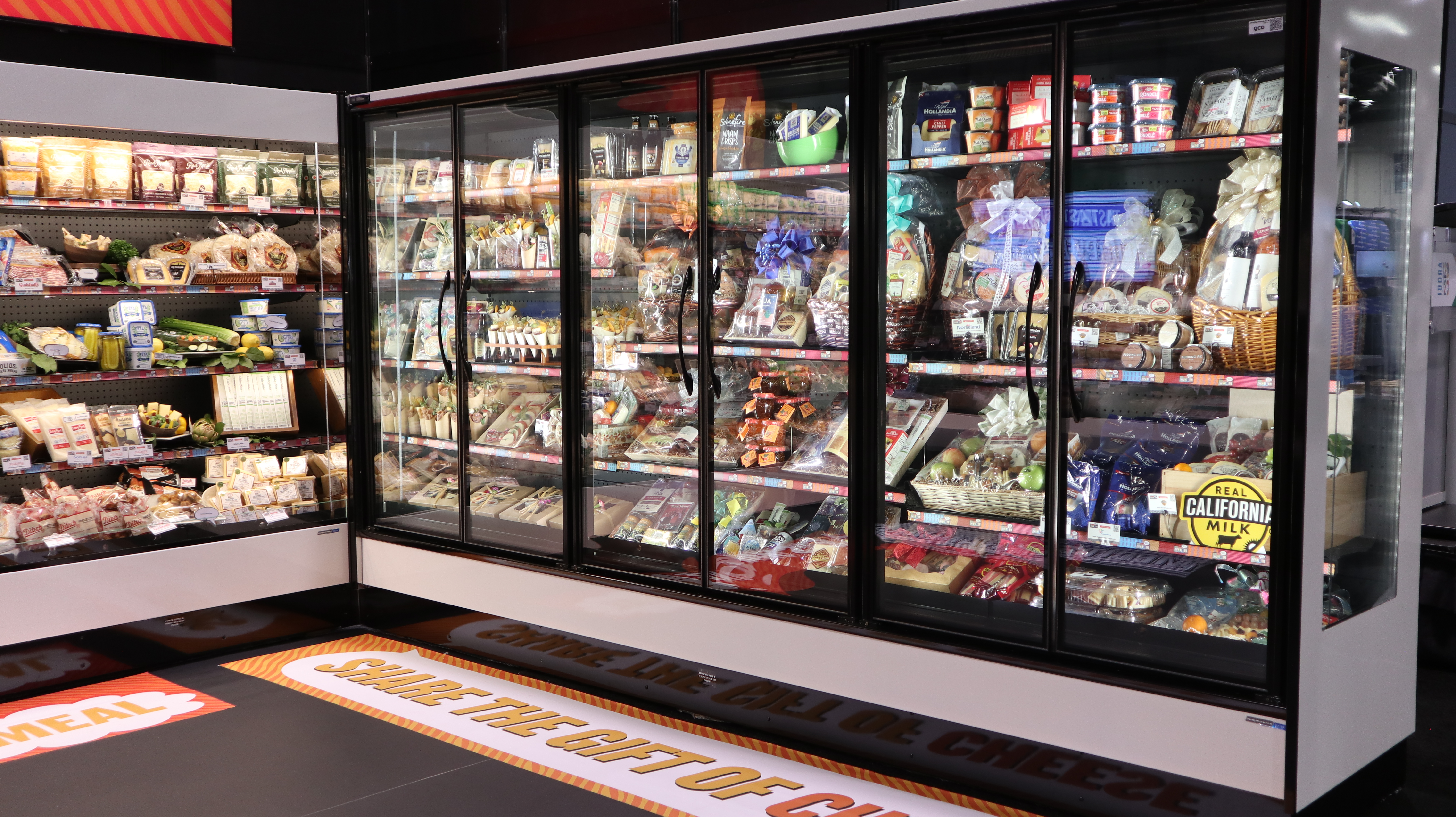

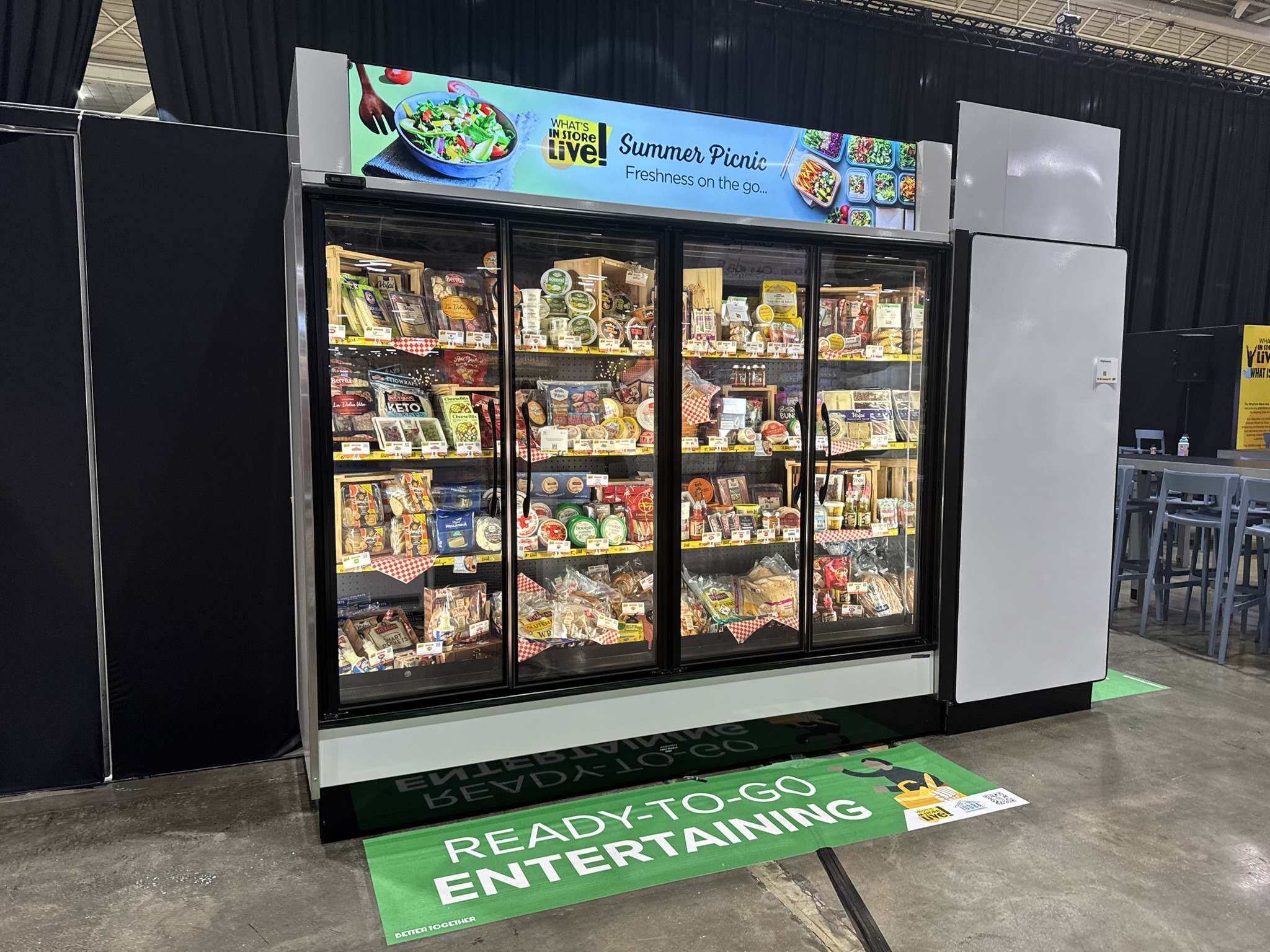

Multi-Deck, Glass Door, Reach-In, Self-Service Display Case.

Hillphoenix QCD-R Multi-Deck, Glass Door, Reach-In Refrigerated Display Case. Medium temperature, glass door, reach-in display case for beverage, dairy, deli, produce,
meat and seafood.

Hillphoenix QCD-R Multi-Deck, Glass Door, Reach-In Refrigerated Display Case. Medium temperature, glass door, reach-in display case for beverage, dairy, deli, produce,
meat and seafood.

Less

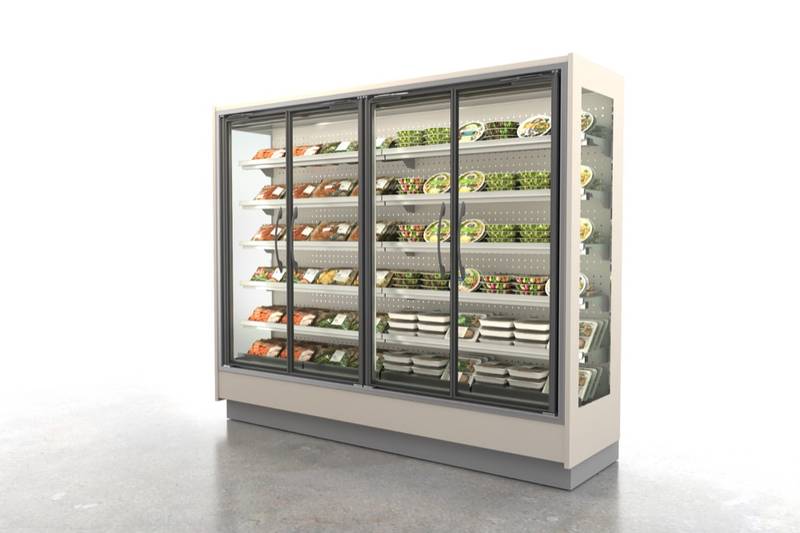

  • QCD-R-Display-Case-Photos-Glass End-2.jpg

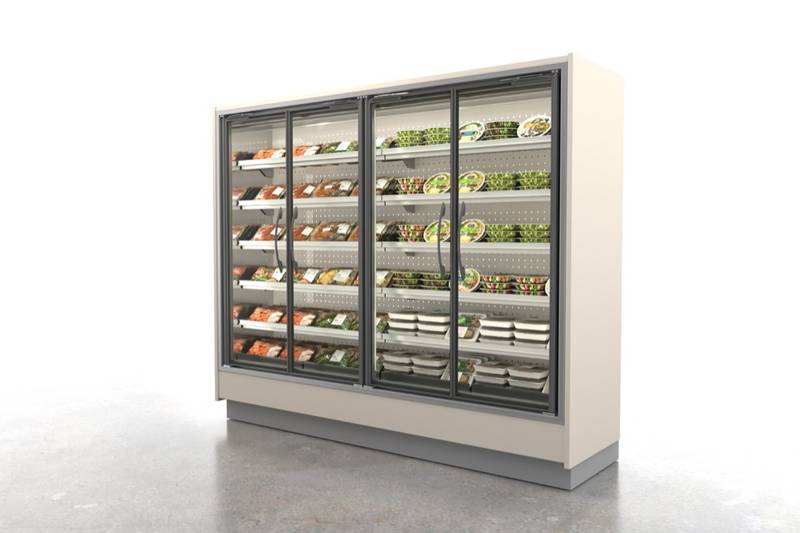

  • QCD-R-Display-Case-Photos-Solid-End-2.jpg
  • QCD-R-Display-Case-CAD-26-R.dwg
  • QCD-R-Display-Case-CAD-32-R.dwg
  • QCD-R-Display-Case-CAD-37-R.dwg

Installation Manuals

  • QCD-R-display-case-manual-rv1.pdf

Accessories

  • Standard-Bumper-Color-Chart-Brochure.pdf
  • Standard-Paint-Color-Chart-Brochure-082823-v2.pdf

Cross Section

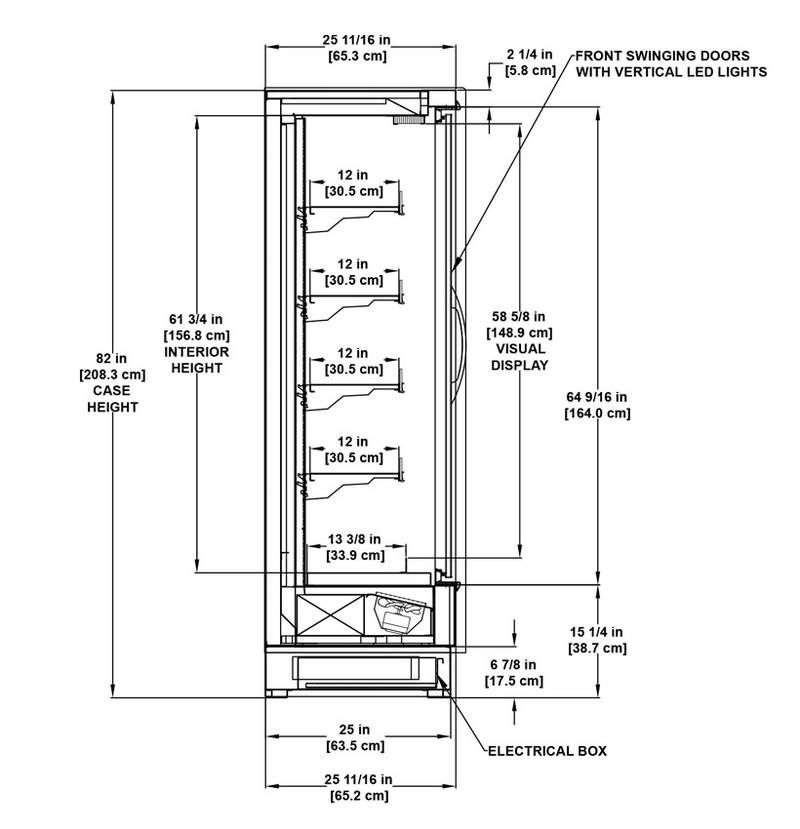

  • QCD-26-page-profile-rv1.jpg

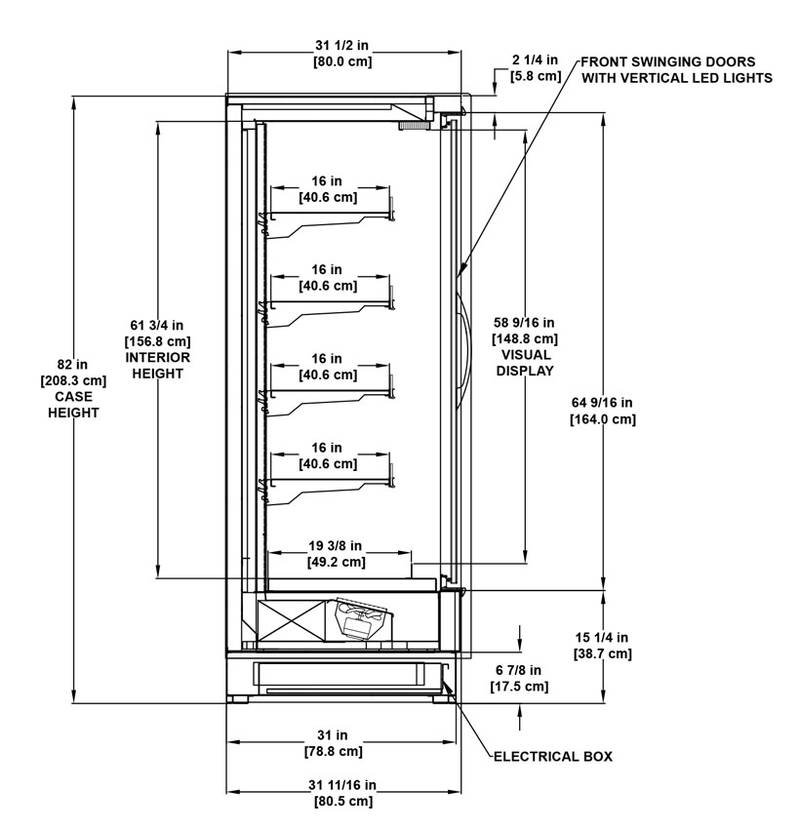

  • QCD-32-page-profile.jpg

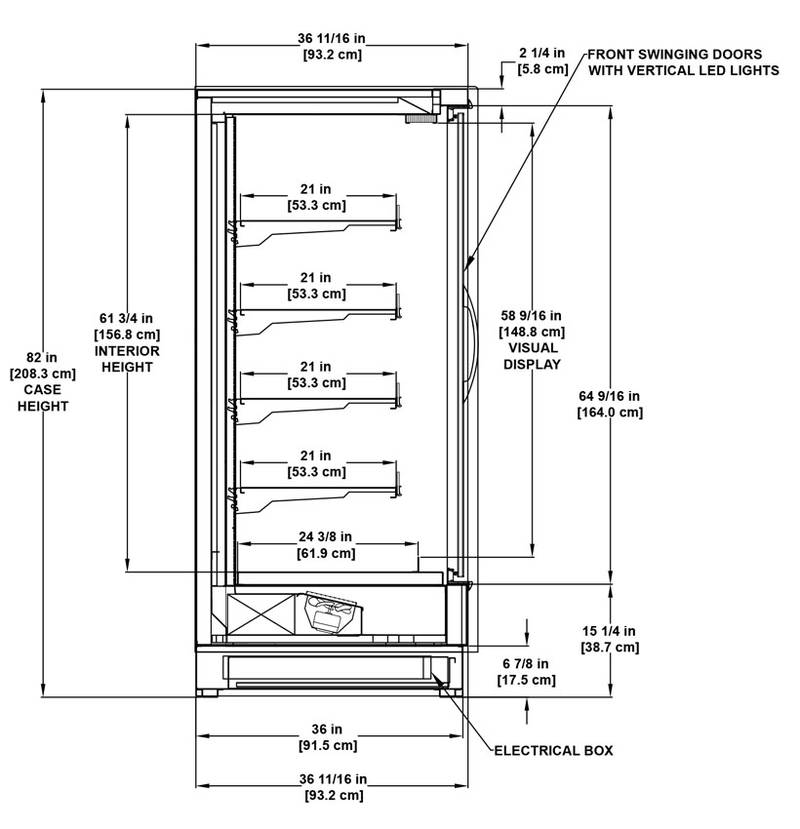

  • QCD-37-page-profile.jpg

Sales Literature

  • QCD-R-display-case-sales-sheet-rv1.pdf

Technical Reference

  • QCD-26-R-display-case-tech-reference-sheet.pdf
  • QCD-32-R-display-case-tech-reference-sheet-rv1.pdf
  • QCD-37-R-display-case-tech-reference-sheet-rv1.pdf

Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.

Multi-Deck, Glass Door, Reach-In, Self-Service Display Case.

Hillphoenix QCD-R Multi-Deck, Glass Door, Reach-In Refrigerated Display Case. Medium temperature, glass door, reach-in display case for beverage, dairy, deli, produce,
meat and seafood.

Hillphoenix QCD-R Multi-Deck, Glass Door, Reach-In Refrigerated Display Case. Medium temperature, glass door, reach-in display case for beverage, dairy, deli, produce,
meat and seafood.

Less

Features & Benefits

  • Sled runner base construction.
  • Case dimensions: 82” H and 26” D.
  • 6-7/8” H stainless steel toekick, front and sides.
  • Outside back and rear toekick galvanized.
  • Painted metal exterior.
  • Stainless steel exterior trim.
  • Infinity I60 bi-swing doors.
  • Vista® C door frames.
  • Optimax® LED vertical mullion lighting on doors.
  • Painted black metal interior and trim.
  • (4) rows each 12” adjustable flat black painted metal shelving.
  • Painted black metal, flat bottom deck with 2” metal product stop.
  • Main power switch and on/off light switch.
  • Energy efficient fans.
  • Solar digital thermometer.
  • Front ballast tray location.
  • Remote DX refrigeration package.

Available Options

  • Remote lengths: 4’, 5’, 6’, 8’, and 12’.
  • Alternate case depth: 32” with (4) 16” rows of shelves.
  • Alternate case depth: 35” with (4) 21” rows of shelves.
  • Exterior finishes exterior grade laminate or stainless steel.
  • White or stainless steel case interior.
  • Glass shelving.
  • Shelf options: product stops and price tag molding.
  • Mirror polished stainless steel finish on inside back panel.
  • Solid or full-view end panels with mirror-polished, stainless steel interior.
  • Thermal divider.
  • Cart bumper mounted on the front panel of the case.
  • Cart bumper added to end panels.
  • Remote glycol or CO2 refrigeration packages.
  • NSF Type II.

Attributes

  • Case Height: 82"
  • Door Type: Infinity I60
  • Interior Height: 62"
  • Case Height Standard: 82"
  • Case Length: 4’, 6’, 8’, 10’, 12'
  • Description: Hillphoenix QCD-R Multi-Deck, Glass Door, Reach-In Refrigerated Display Case. Designed for prepackaged bakery, beverage, dairy, deli and produce applications with option for standard 30″ depth or narrow 24″ depth. Available in several lengths and up to four rows of shelves.
  • Interior Depth: 2
  • Case Depth / Footprint: 26", 30", 35"
  • Department: Bakery, Beverage, Dairy, Deli, Produce
  • Case Temp: Medium-Temp
  • Remote / Self-Contained: Remote
  • Product Type: Specialty Cases
  • Case Type: Reach-In, Glass Door & Lid, Self-Service, Remote, End Cap
