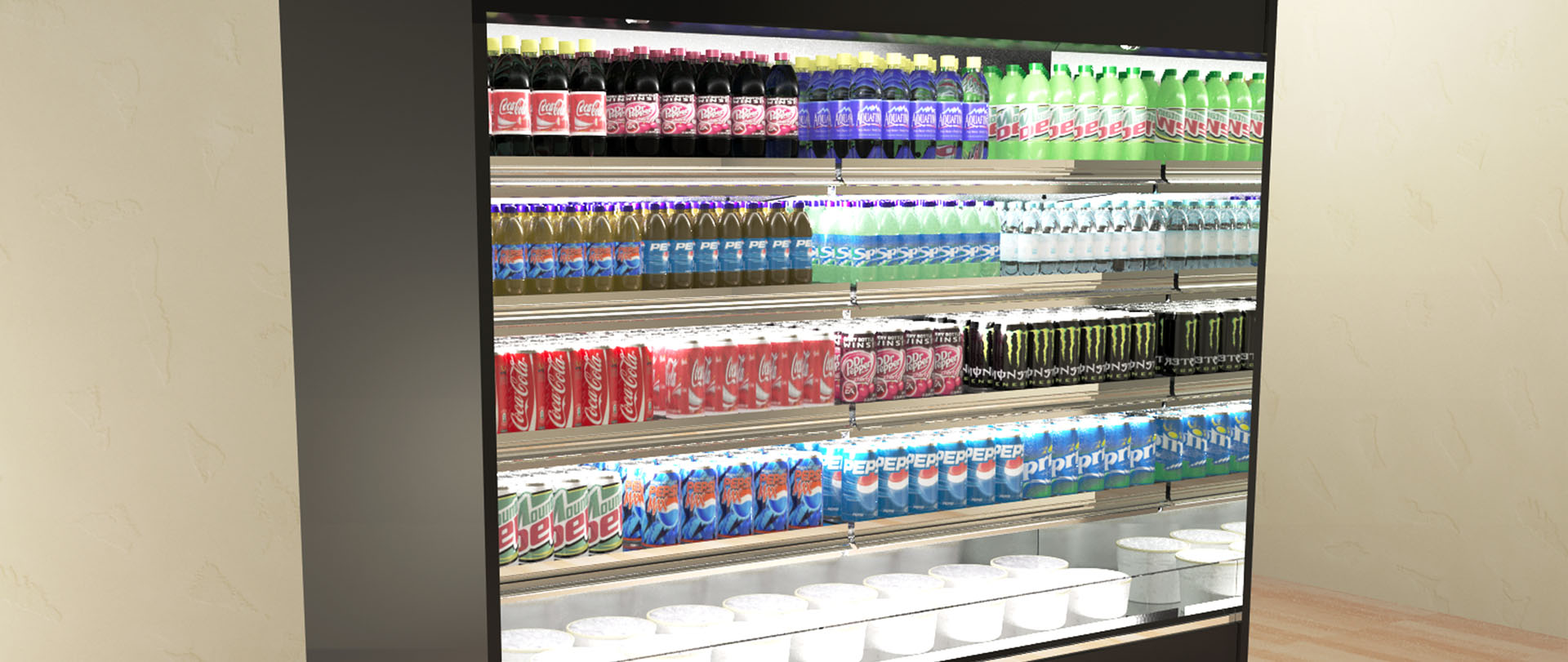

CF-S Multi-Deck Refrigerated Self-Service Display Case


Self-Service Multi-Deck

Hillphoenix CF-S Multi-Deck, Refrigerated, Self-Service Display. Designed for prepackaged bakery, beverage, dairy, and deli applications with up to four rows of shelves. Available in several lengths in both remote and self-contained refrigeration.


Features and Benefits

  • Closed base construction with leveling pads.
  • Standard 81-1/2”H and 32-1/2”D with chimney.
  • 18-3/16”H painted metal base, front and sides.
  • Painted metal exterior.
  • Stainless steel exterior trim.
  • Painted metal interior.
  • Interior trim to match interior.
  • Painted metal to match exterior front, side and
    rear base.
  • Outside back and 29-7/16”D case top painted to
    match exterior.
  • 3-1/2”H x 1/2” thick polished, straight die board plex.
  • (4) rows each 16” adjustable angled, black painted
    metal shelves with black price tag molding with 3”
    polycarbonate product stop.
  • Clearvoyant LED canopy top light.
  • Painted black metal, flat bottom deck with 2” metal
    product stop.
  • Front electrical raceway.
  • Solar digital thermometer.
  • Self-contained refrigeration package.

Available Options

  • Available lengths: 4’, 6’, 8’, 10’ and 12’.
  • 35”D case with up to (4) rows of 20” shelves.
  • Exterior finish: Exterior grade laminate.
  • Recessed casters.
  • Cart bumper.
  • Econofrost night cover with or without cassette.
  • Polycarbonate night cover.
  • Magnetic night shield.
  • Swing rear load doors (dual plenum-add 2-1/2” to overall case depth).
  • Sliding rear load doors (dual plenum-add 2-1/2” to overall case depth).
  • Rear raceway.
  • LED undershelf lighting.
  • Remote, DX, or Glycol refrigeration package.


Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
