QC
Self-Service Multi-Deck

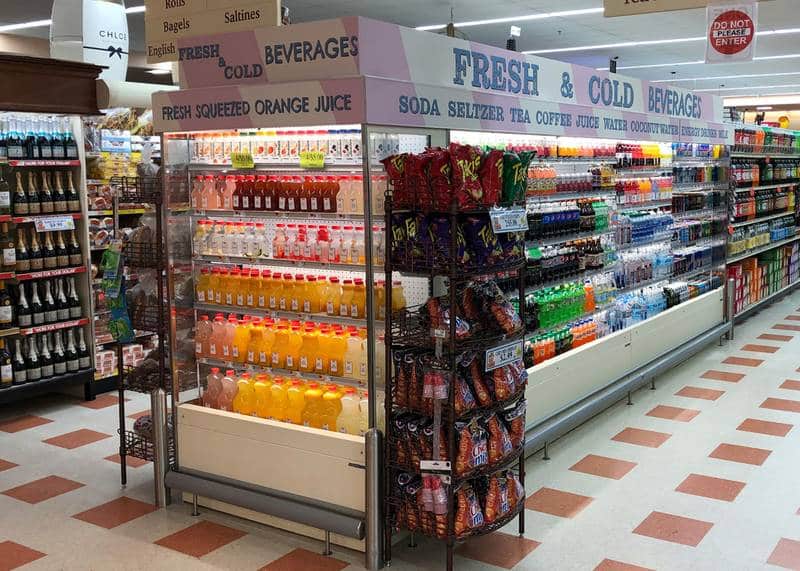

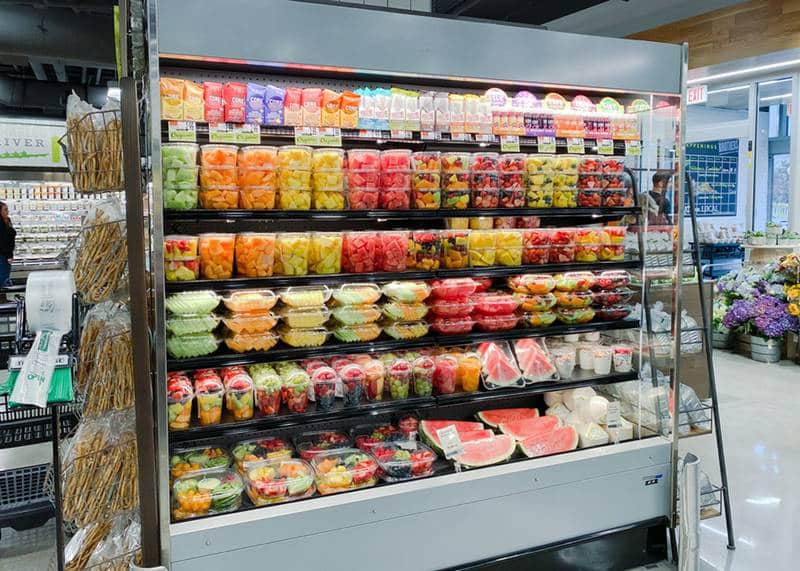

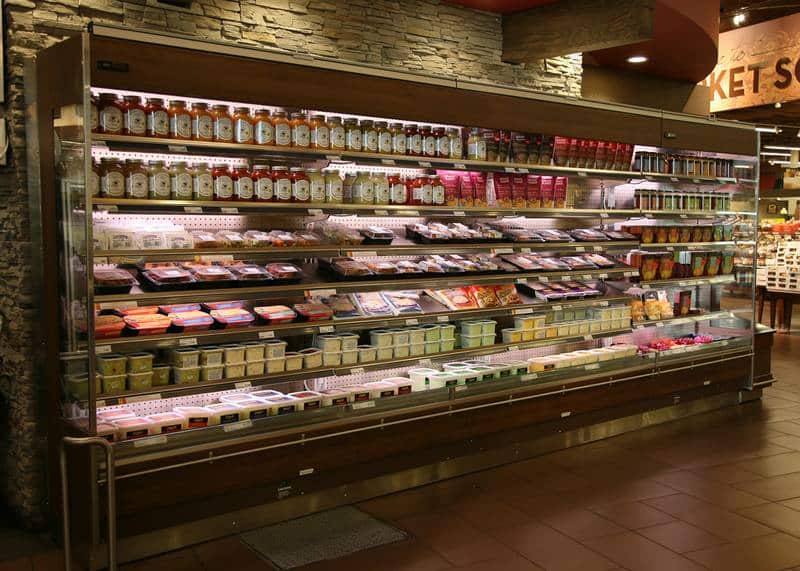

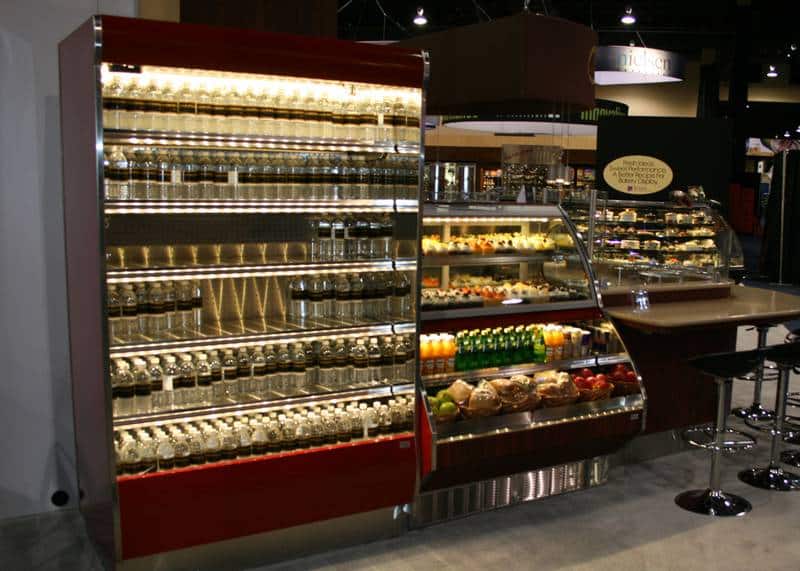

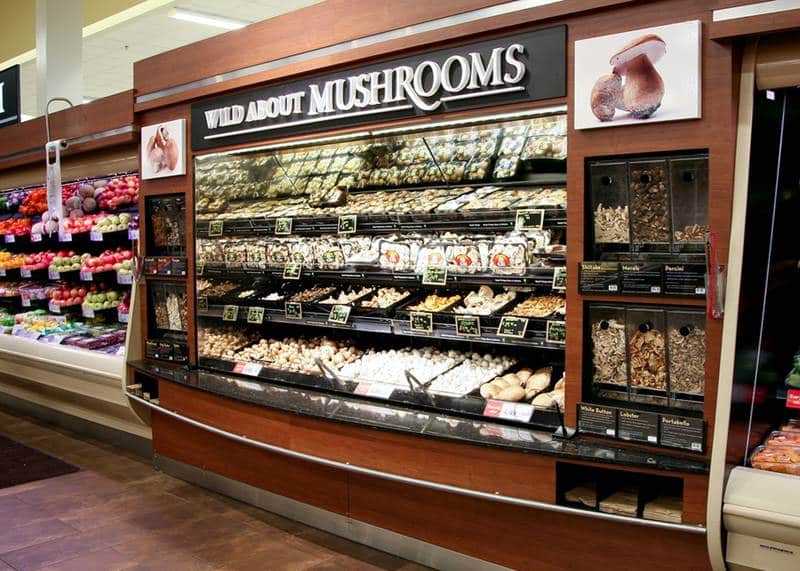

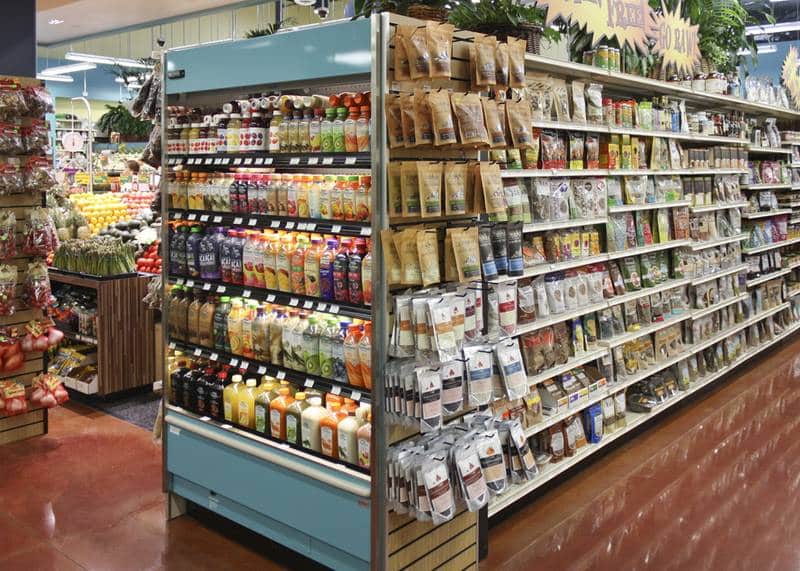

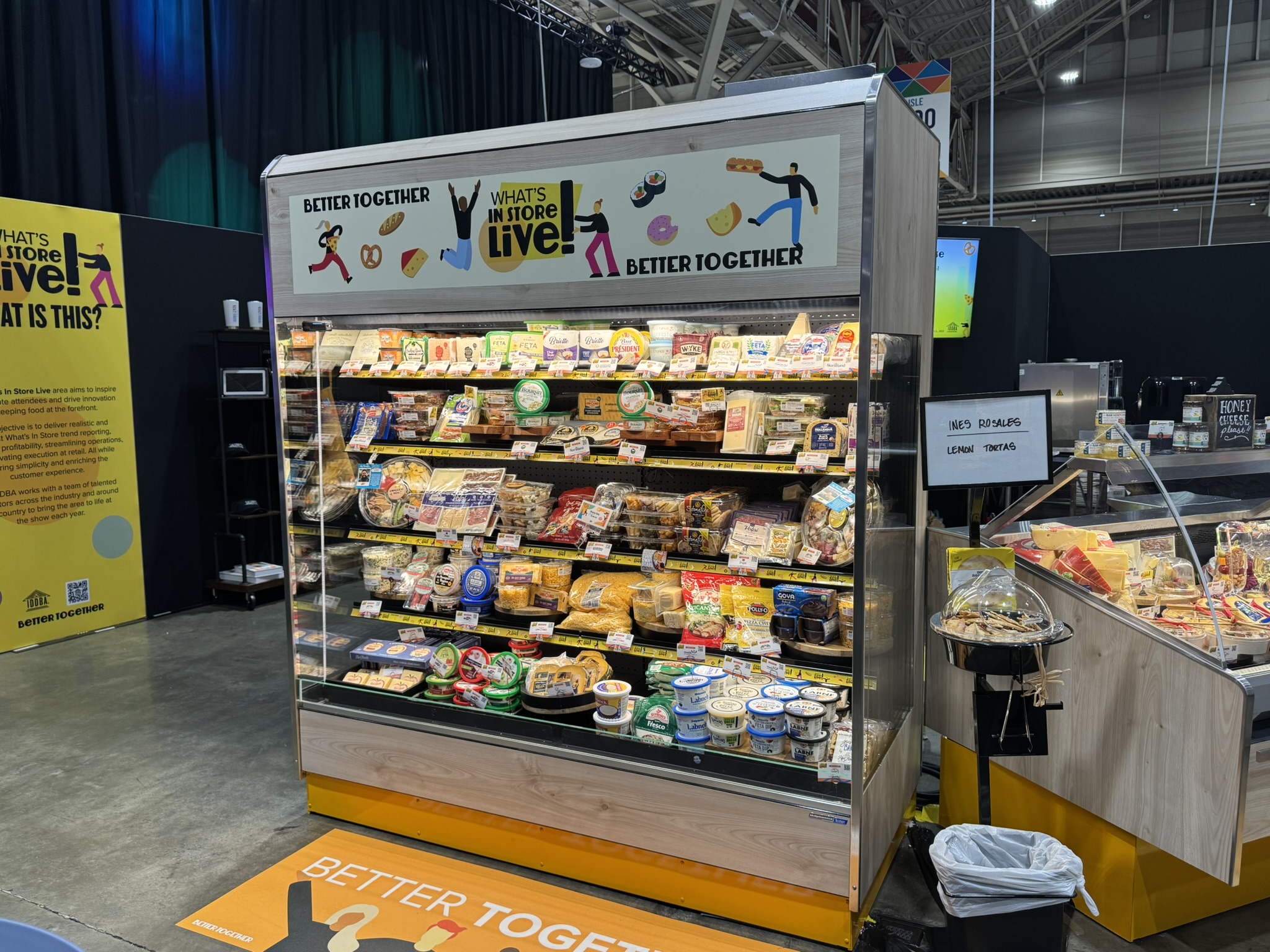

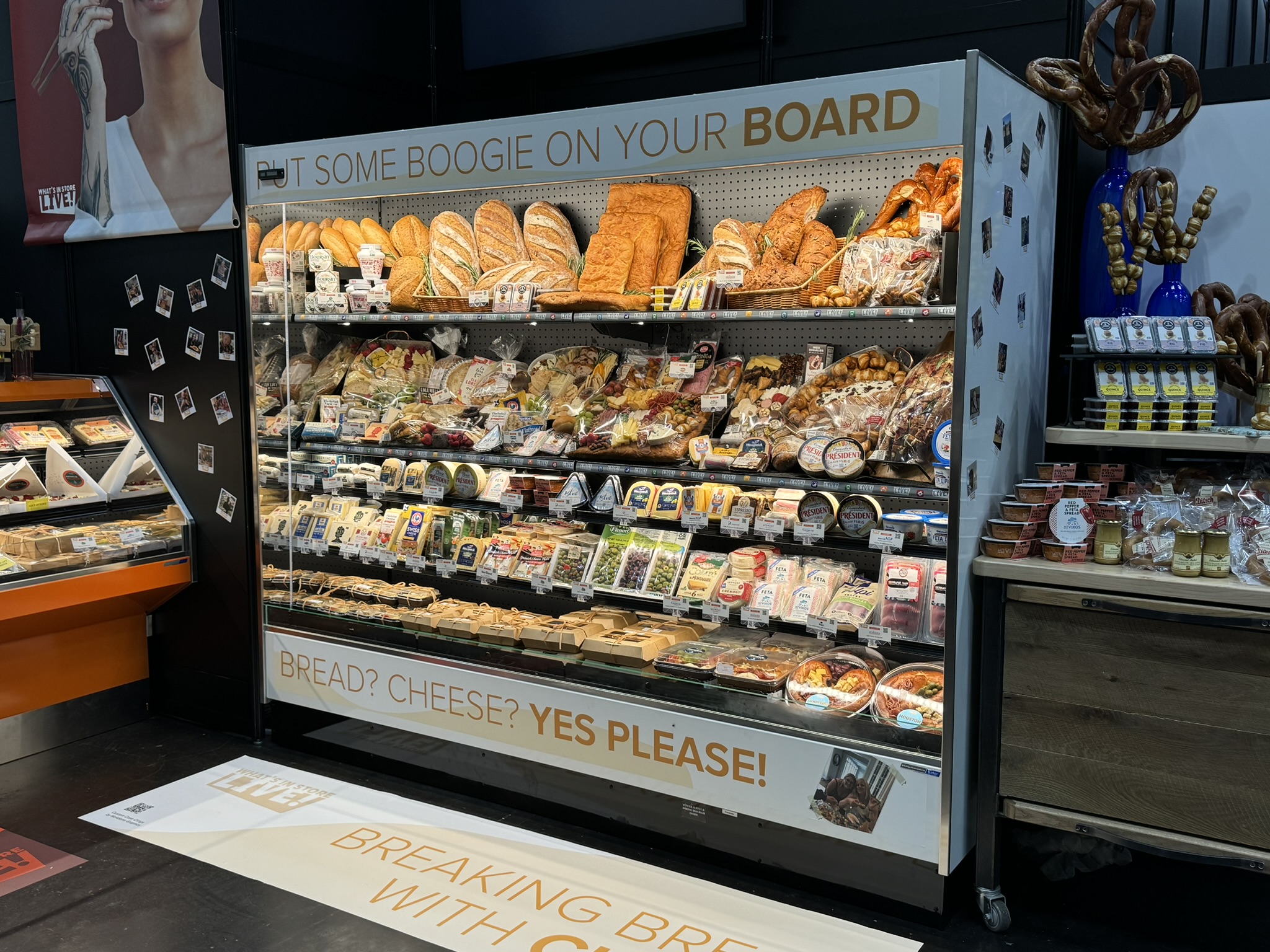

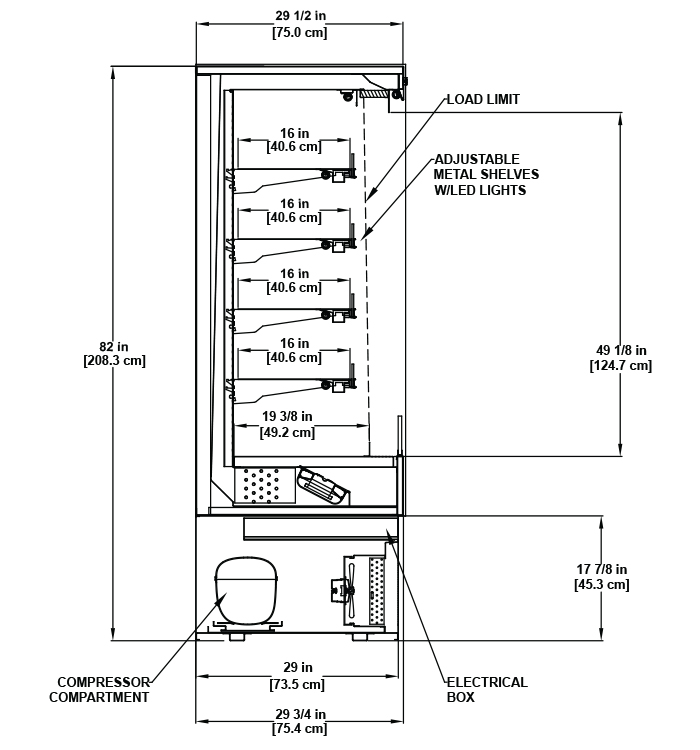

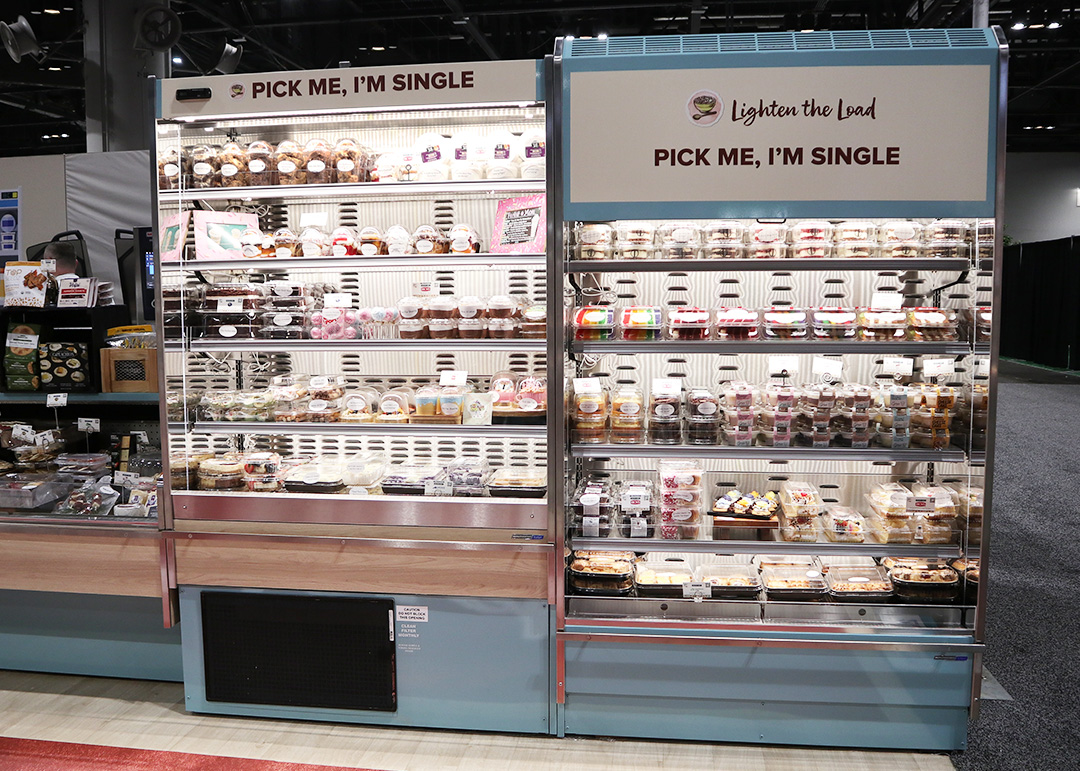

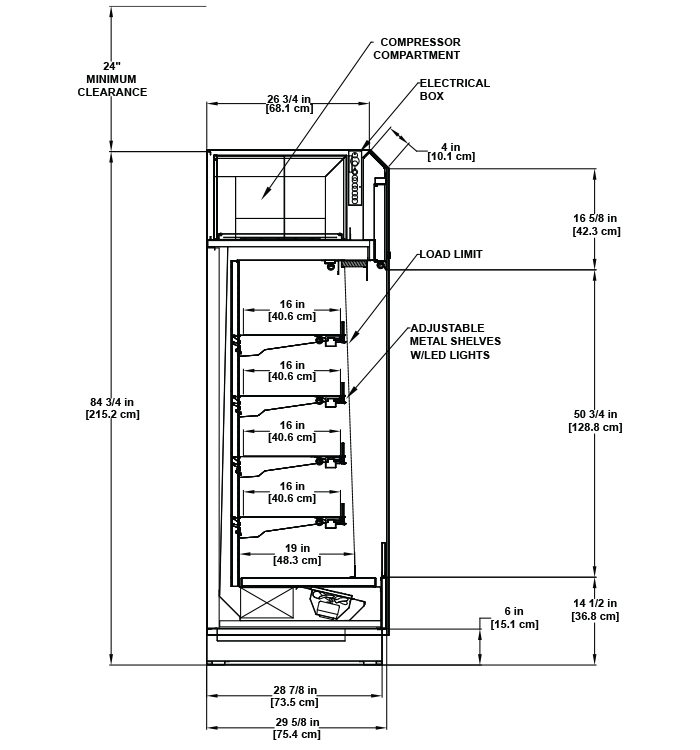

Hillphoenix QC Multi-Deck, Self-Service, Refrigerated Display. Designed for prepackaged bakery, beverage, dairy, deli and produce applications with option for standard 30" depth or narrow 24" depth. Available in several lengths and up to four rows of shelves in remote and self-contained refrigeration packages. Self-contained is also available with either a top mount or bottom mount compressor location.
Hillphoenix QC Multi-Deck, Self-Service, Refrigerated Display. Designed for prepackaged bakery, beverage, dairy, deli and produce applications with option for standard 30" depth or narrow 24" depth. Available in several lengths and up to four rows of shelves in remote and self-contained refrigeration packages. Self-contained is also available with either a top mount or bottom mount compressor location.
Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Remote refrigeration designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
Self-contained refrigeration designed for performance in store environments where temperature and humidity do not exceed 80° F and 55% R.H. Certified to UL 60335-2-89 and ANSI/NSF Standard 7.
Self-Service Multi-Deck
Hillphoenix QC Multi-Deck, Self-Service, Refrigerated Display. Designed for prepackaged bakery, beverage, dairy, deli and produce applications with option for standard 30" depth or narrow 24" depth. Available in several lengths and up to four rows of shelves in remote and self-contained refrigeration packages. Self-contained is also available with either a top mount or bottom mount compressor location.
Hillphoenix QC Multi-Deck, Self-Service, Refrigerated Display. Designed for prepackaged bakery, beverage, dairy, deli and produce applications with option for standard 30" depth or narrow 24" depth. Available in several lengths and up to four rows of shelves in remote and self-contained refrigeration packages. Self-contained is also available with either a top mount or bottom mount compressor location.
Features & Benefits
- Sled runner base construction.
- Closed base.
- Straight front profile.
- Painted metal base, front, and sides.
- Outside back unfinished galvaneal.
- Case top painted to match the exterior.
- Painted metal exterior and trim.
- Straight die board plex.
- Painted metal interior and trim.
- 4 Painted metal shelves: 10”D shelves in 24”D case, 16”D
shelves in 30”D case, and 20”D shelves in 35”D case. - Separate on/off light switch located on interior top.
- Painted metal, fixed, flat bottom deck.
- Left and right solid painted metal end panels.
- Energy-efficient fans.
- Solar digital thermometer.
- Remote DX or self-contained refrigeration package.
Available Options
- See case lengths and depths on sales sheets for remote and self-contained lengths.
- Sled runner base construction with leveling pads, bullet
legs, and recessed or exposed casters for self-contained option only (casters increase
case height). Casters not available on top-mount version. - Exterior finishes: exterior grade laminate or
stainless steel. - Exterior back panel: painted metal or stainless.
- Case top: painted metal or stainless.
- Interior finish: mirrored polished stainless steel.
- Clearvoyant® LED top light.
- Shelf finish: Stainless steel or glass.
- Shelves: lighted, product stops, price tag molding,
additional shelves (maximum of 6 rows). - Night cover: retractable roller shade, roller shutter or
polycarbonate panel. - End panels: framed glass or thermal divider.
- Cart bumper mounted on the front panel of the case:
single or dual row. - Cart bumper added to end panels.
- Remote glycol or CO2 refrigeration packages.
Attributes
- Alternate Heights: -
- Case Depth / Footprint: 29-11/16"
- Case Height Standard: 82"
- Case Length: 4’, 6’, 8’, and 12
- Case Temp: Medium-Temp
- Case Type: Multi-Deck, Remote, Self-Service
- Department: Bakery, Beverage, Dairy, Deli, General, Produce
- Door Type: -
- Interior Depth: 19-1/2"
- Interior Height: 58-5/16"
- Other Models: Bakery, beverage, dairy, deli and produce. ALSO consider the CF-FS, CF-S, QTM, ON5DMX-NRG, ON5UM-NRG and ONNSA-NRG
- Product Type: Specialty Cases
- Refrigerated Volume: -
- Remote / Self-Contained: Remote
- Retail Types: Convenience Store, Dollar Discount, Drug Store, Food Service, Mass Merchandise, Membership & Warehouse, Supermarket
Related Products

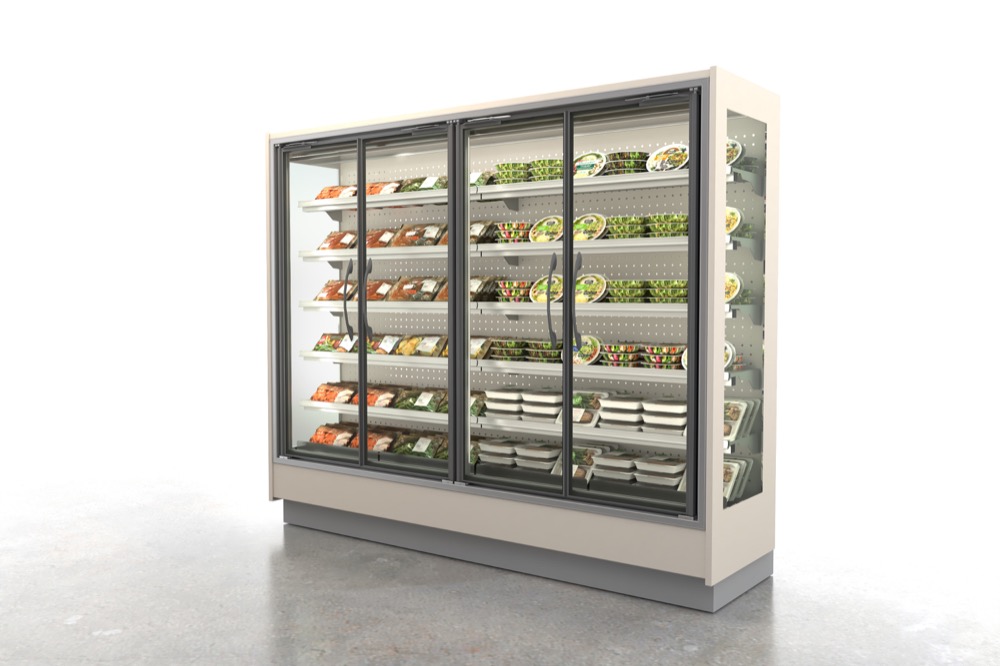

QCD-R
