ON5DMXA-NRG
R-290 Multi-deck Self-Contained Merchandiser

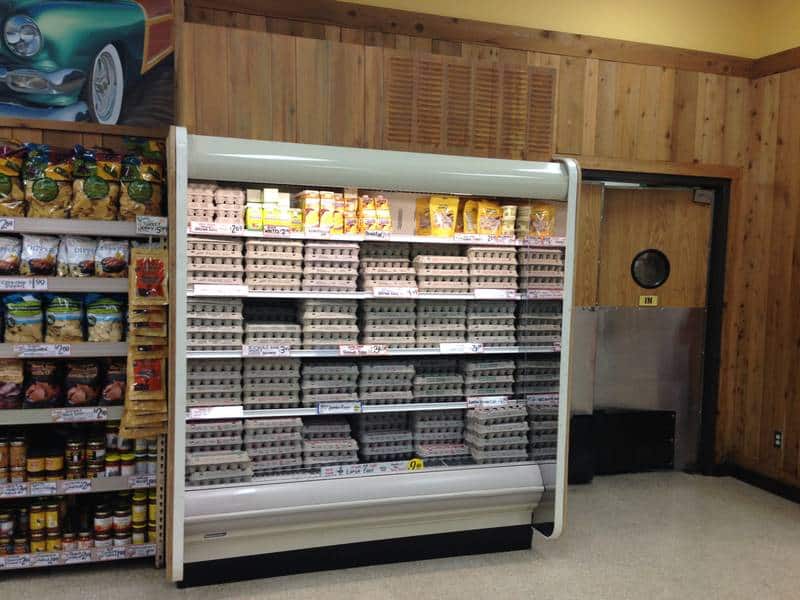

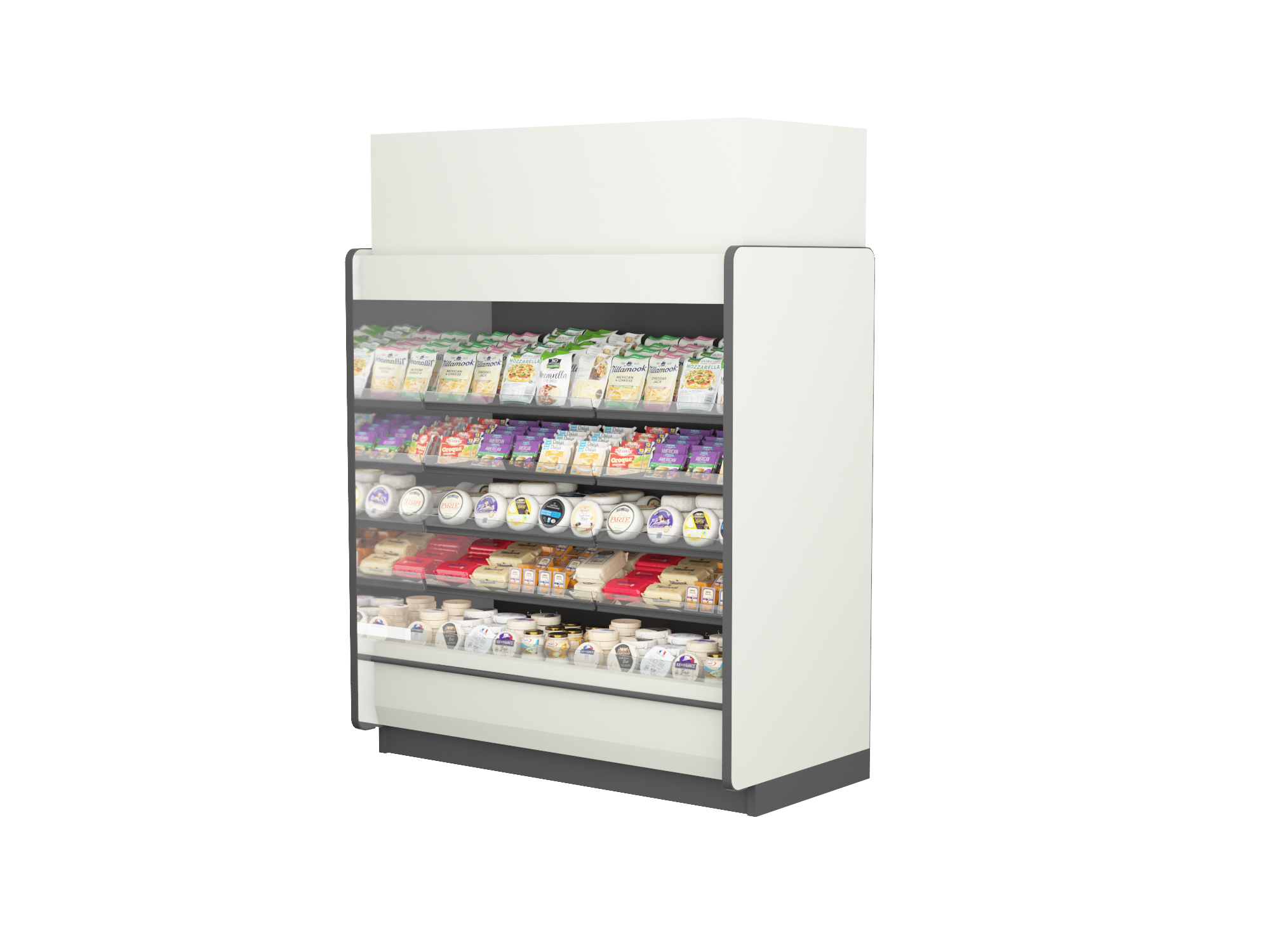

Hillphoenix O5DMA-NRG and the ON5DMXA-NRG Narrow, Five-Shelf, Multi-Deck, R-290 Self-Contained Merchandiser for produce, dairy, deli or beverage. Case available in various widths, heights, front options and end configurations. Use this merchandiser on an end cap, at the front of your store for grab-n-go, or anywhere remote refrigeration is not available. Additional multi-decks available in narrow and standard depth, shorter and taller heights and self-contained or remote.
Hillphoenix O5DMA-NRG and the ON5DMXA-NRG Narrow, Five-Shelf, Multi-Deck, R-290 Self-Contained Merchandiser for produce, dairy, deli or beverage. Case available in various widths, heights, front options and end configurations. Use this merchandiser on an end cap, at the front of your store for grab-n-go, or anywhere remote refrigeration is not available. Additional multi-decks available in narrow and standard depth, shorter and taller heights and self-contained or remote.
Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
R-290 Multi-deck Self-Contained Merchandiser
Hillphoenix O5DMA-NRG and the ON5DMXA-NRG Narrow, Five-Shelf, Multi-Deck, R-290 Self-Contained Merchandiser for produce, dairy, deli or beverage. Case available in various widths, heights, front options and end configurations. Use this merchandiser on an end cap, at the front of your store for grab-n-go, or anywhere remote refrigeration is not available. Additional multi-decks available in narrow and standard depth, shorter and taller heights and self-contained or remote.
Hillphoenix O5DMA-NRG and the ON5DMXA-NRG Narrow, Five-Shelf, Multi-Deck, R-290 Self-Contained Merchandiser for produce, dairy, deli or beverage. Case available in various widths, heights, front options and end configurations. Use this merchandiser on an end cap, at the front of your store for grab-n-go, or anywhere remote refrigeration is not available. Additional multi-decks available in narrow and standard depth, shorter and taller heights and self-contained or remote.
Features & Benefits
- R290 Air-cooled Self-contained;.
- NSF Type 1. Designed to operate in an air-conditioned store that maintains a 75°F (24°C) store temperature and 55% (max) relative humidity. Case operation will be adversely affected by exposure to excessively high ambient temperatures and/or humidity .
- Synerg-E Technology with NRGcoil™.
- Unique design ensures uniform case performance and lower average product temperatures with optimum energy efficiency.
- Top-mounted CDU with quick on refrigeration lines for convenient maintenance.
- Standard Off Cycling defrost for cost-effective operation.
- Bottom-mounted NRGcoil and lift-up fan plenum for ease of maintenance.
- Seamless tank liner provides positive drain runoff and enhances sanitation.
- Removable castors for easy merchandiser unloading, movement and placement.
- Exclusive Clearvoyant® LED Lighting System.
Available Options
- Available lengths: 4’, & 6’.
- Available shelf depths: 20", 22"
- Matium of 6 rows of Standard Output LED lighted shelves.
- 2 rows of standard or 1 row of cornice high output LED lights.
- 9.75" and 13" Mirror optional.
- Multiple, different front styles available.
- Superview, solid, and square end panels available.
- Wire racks provide display flexibility.
- Wide variety of standard colors.
- Narrow depth version available as ON5DMXA.
- Meat application available as O5MXA for standard depth and ON5MXA for narrow depth.
- Remote and rearload versions also available.
Attributes
- Alternate Heights: O2.5UMA-NRG

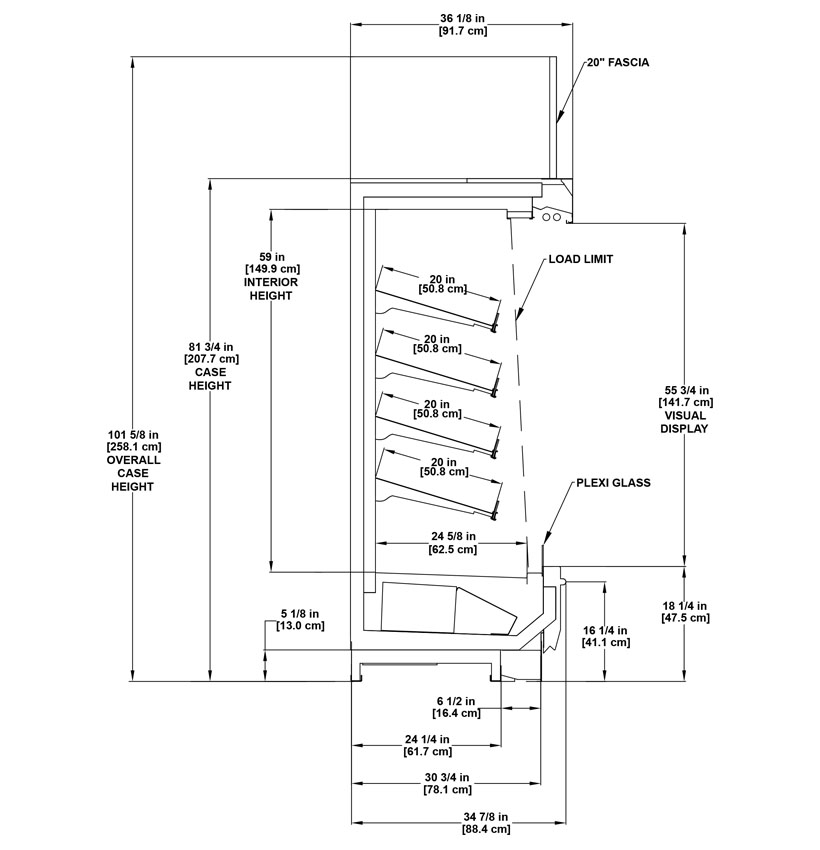

- Case Depth / Footprint: 34 7/8"
- Case Height Standard: 100 7/8"
- Case Length: 4' & 6'
- Case Temp: Medium-Temp
- Case Type: Multi-Deck, Self-Contained, Self-Service, Propane
- Department: Beverage, Dairy, Deli, General, Prepared Foods, Produce
- Door Type: -
- Interior Depth: 24 5/8"
- Interior Height: 59"
- Other Models: Best use for this merchandiser is on an end cap, at the front of your store for grab and go, or anywhere remote refrigeration is not available.
- Product Type: Display Case
- Refrigerated Volume: 9.60CF / LF
- Remote / Self-Contained: Self-Contained
- Retail Types: Convenience Store, Mass Merchandise, Membership & Warehouse, Supermarket, Urban Format
